Rear Vehicle Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on a lift, and then lift-up the vehicle.
Disconnect the connector from rear vehicle speed sensor.

Fig 1: Identifying Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear vehicle speed sensor.

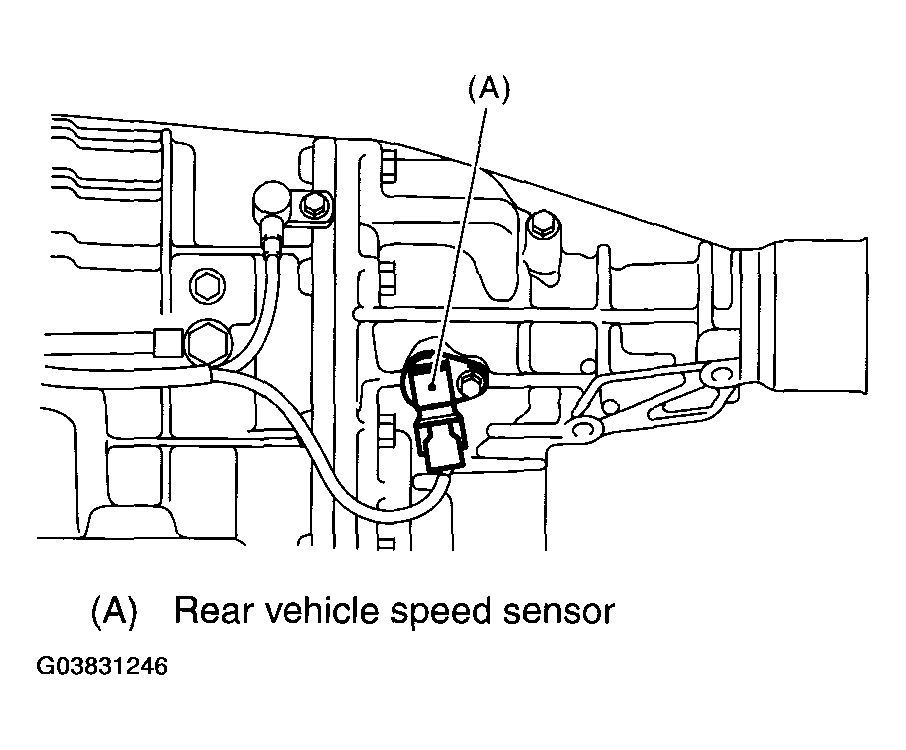

Fig 2: Removing Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
