Parking Pawl: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the parking pawl, return spring and shaft.

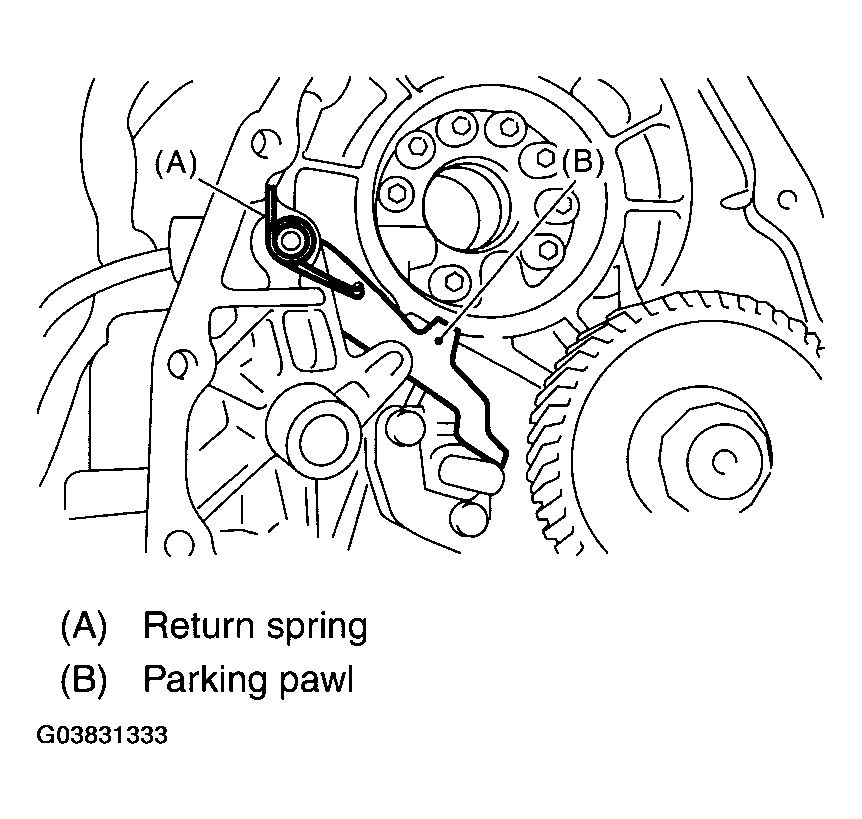

    Fig 1: Installing Parking Pawl, Return Spring
    G03831333Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction drive gear. < Ref. to , INSTALLATION , Reduction Drive Gear. >
  3. Install the extension case and rear vehicle speed sensor. < Ref. to , INSTALLATION , Extension Case. >
  4. Install the transmission assembly into the vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
