Oil Pump Housing: Inspection

WARNING: This page is about a different variant/trim than selected.

Check the seal ring and oil seal for breaks and damages.
Check other parts for dents or abnormalities.

Selection of oil pump rotor assembly

Tip clearance
Install the inner rotor and outer rotor to oil pump. With rotor gears facing each other, measure the crest-to-crest clearance.

Tip clearance:

0.02 - 0.15 mm (0.0008 - 0.0059 in)

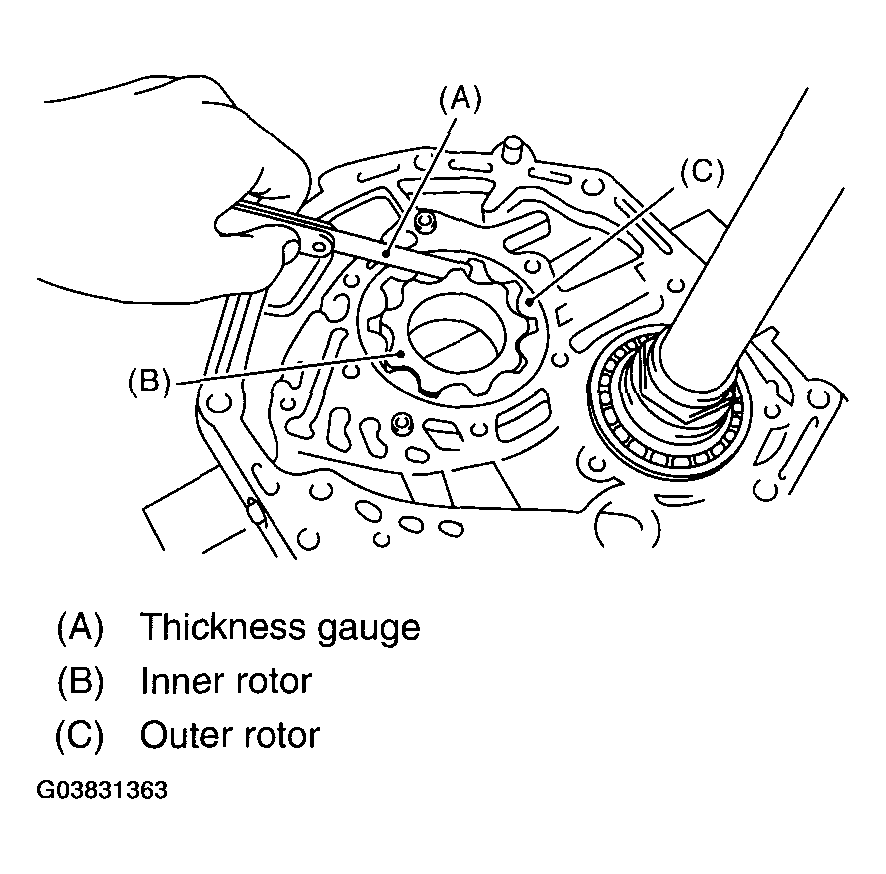

Fig 1: Measuring Crest-To-Crest Clearance
Courtesy of SUBARU OF AMERICA, INC.
Side clearance
Set a depth gauge to oil pump housing, then measure the oil pump housing-to-rotor clearance.

Side clearance:

0.02 - 0.04 mm (0.0008 - 0.0016 in)

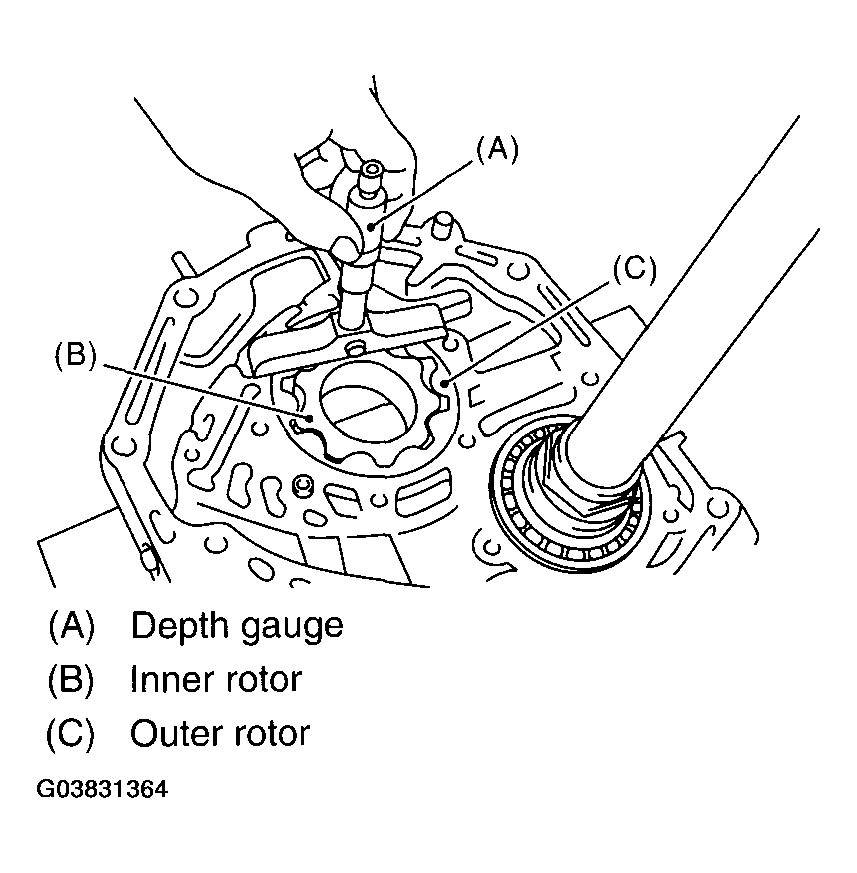

Fig 2: Measuring Oil Pump Housing-To-Rotor Clearance
Courtesy of SUBARU OF AMERICA, INC.

If the depth and/or side clearance are not within the specifications, replace the rotor assembly.

OIL PUMP ROTOR

Oil pump rotor ASSY
Part number	Thickness mm (in)
15008AA060	11.37 - 11.38 (0.4476 - 0.4480)
15008AA070	11.38 - 11.39 (0.4480 - 0.4484)
15008AA080	11.39 - 11.40 (0.4484 - 0.4488)

Measure the total end play and adjust it within specifications. < Ref. to , ADJUSTMENT , Oil Pump Housing. >
