Oil Seal Retainer

WARNING: This page is about a different variant/trim than selected.
  1. Remove the oil seal retainer.

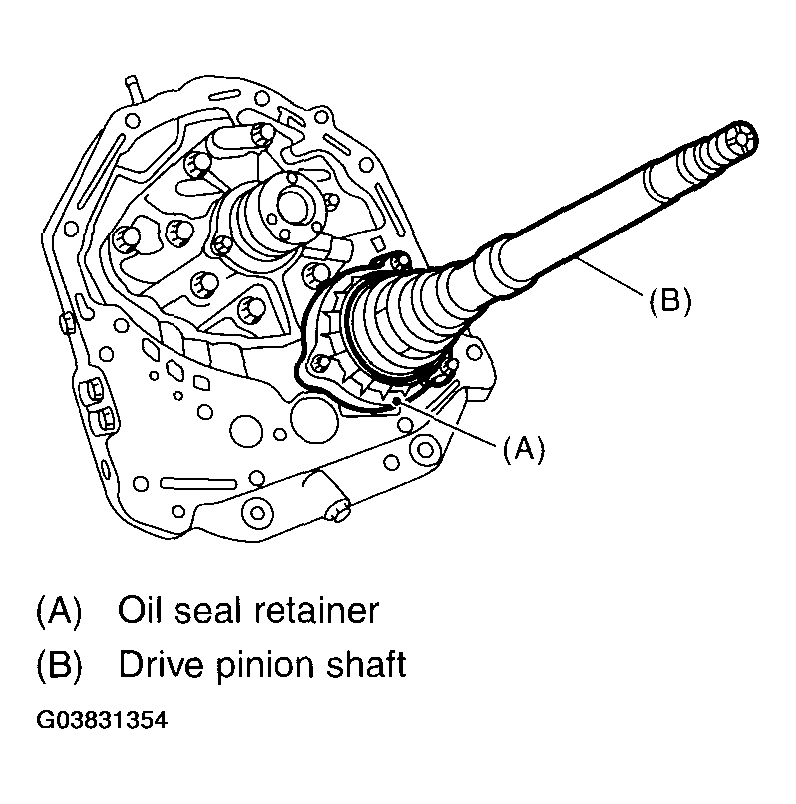

    Fig 1: Removing Oil Seal Retainer
    G03831354Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the O-ring.

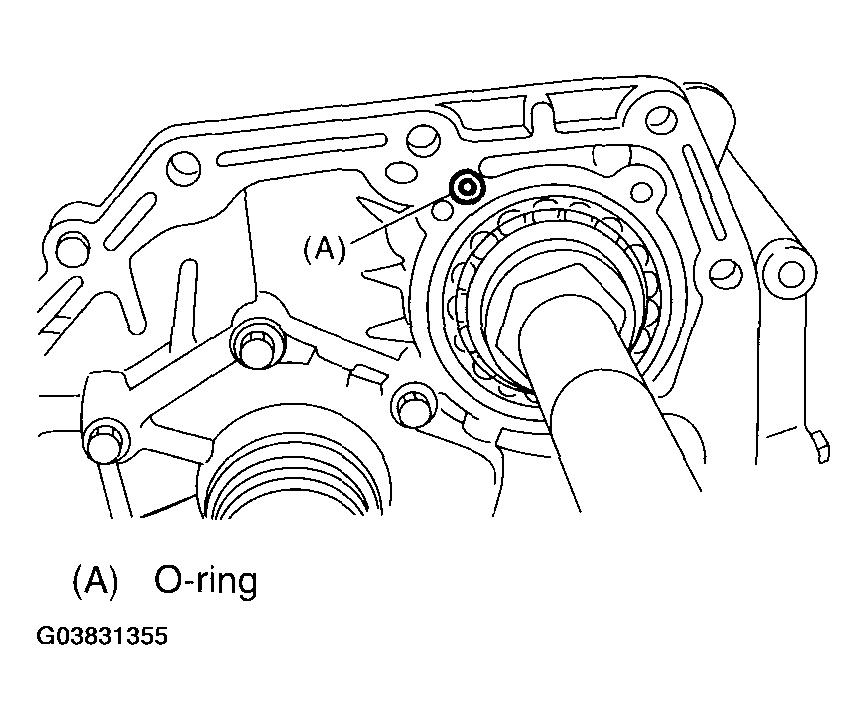

    Fig 2: Identifying O-Ring
    G03831355Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil seal from oil seal retainer.
    Fig 3: Identifying Oil Seal From Oil Seal Retainer
    G03831356Courtesy of SUBARU OF AMERICA, INC.
