Oil Pump Cover

WARNING: This page is about a different variant/trim than selected.

Remove four seal rings.

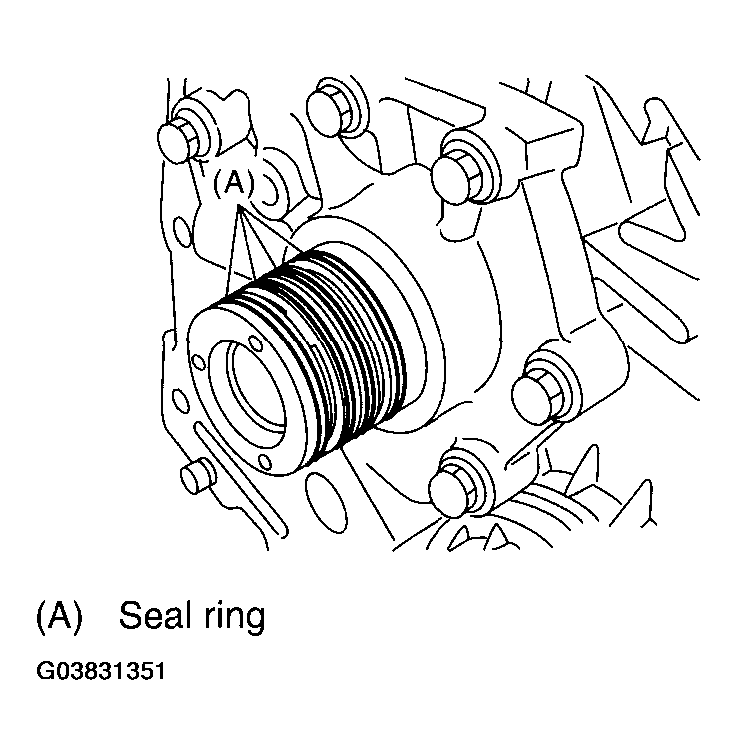

Fig 1: Identifying Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Remove the cover by lightly tapping the end of stator shaft.

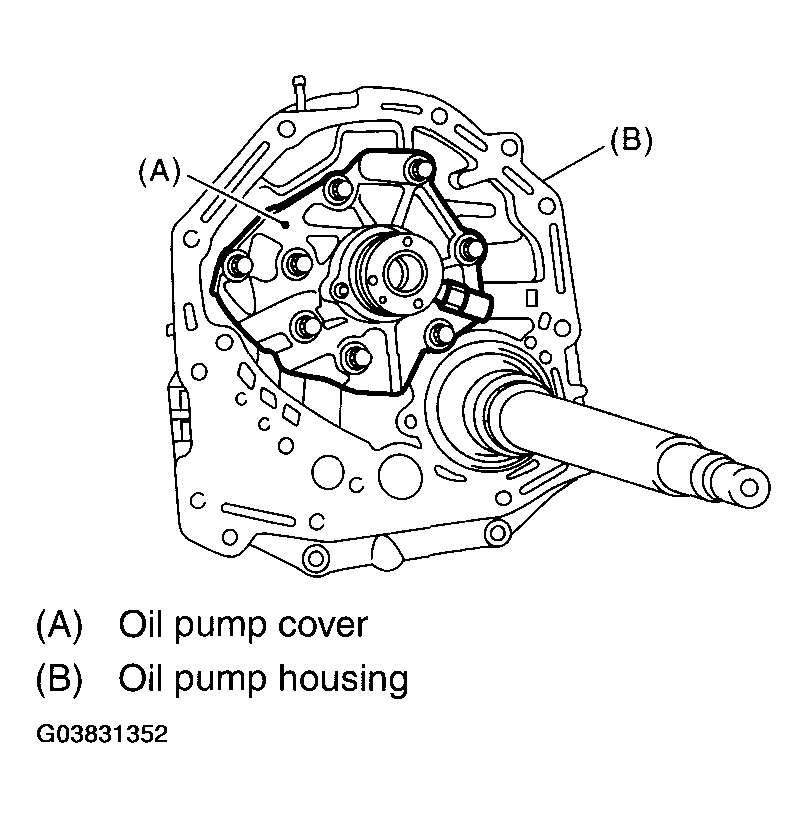

Fig 2: Removing Oil Pump Cover And Oil Pump Housing
Courtesy of SUBARU OF AMERICA, INC.
Remove the inner and outer rotor.

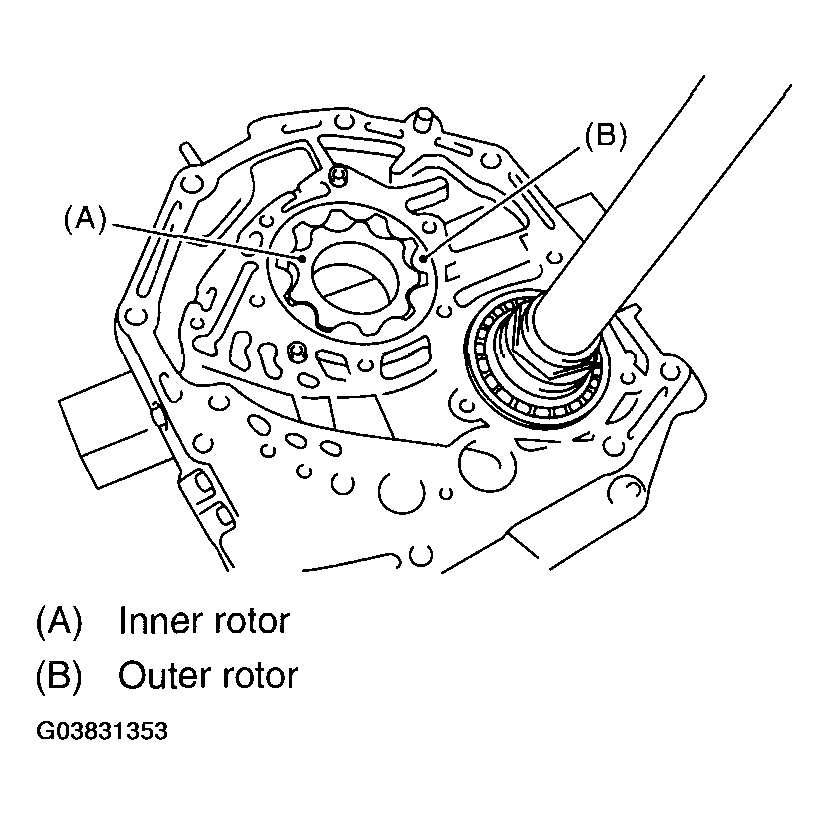

Fig 3: Identifying Inner And Outer Rotor
Courtesy of SUBARU OF AMERICA, INC.
