Oil Seal Retainer

WARNING: This page is about a different variant/trim than selected.

Apply ATF to new oil seals (two), and install them to the oil seal retainer in proper direction using ST.
ST 499247300 INSTALLER

Fig 1: Installing Oil Seal Retainer Using Installer ST 499247300
Courtesy of SUBARU OF AMERICA, INC.
Apply ATF to a new O-ring and install it to the oil seal retainer. Install the seal to oil pump housing bore.

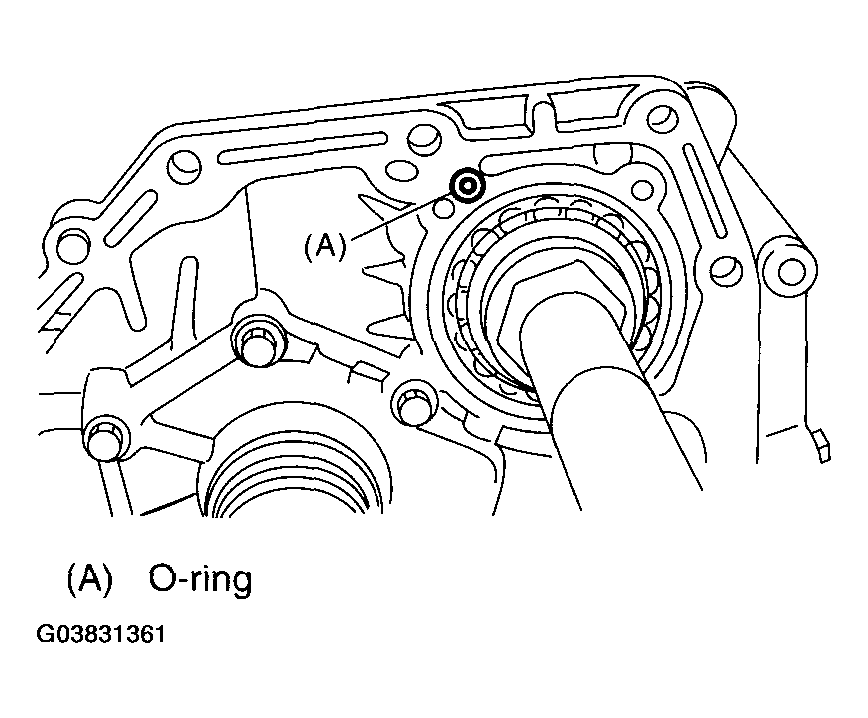

Fig 2: Identifying O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Install the oil seal and secure it using three bolts being careful not to damage oil seal lip.
Tightening torque:

7 N.m (0.7 kgf-m, 5.1 ft-lb)

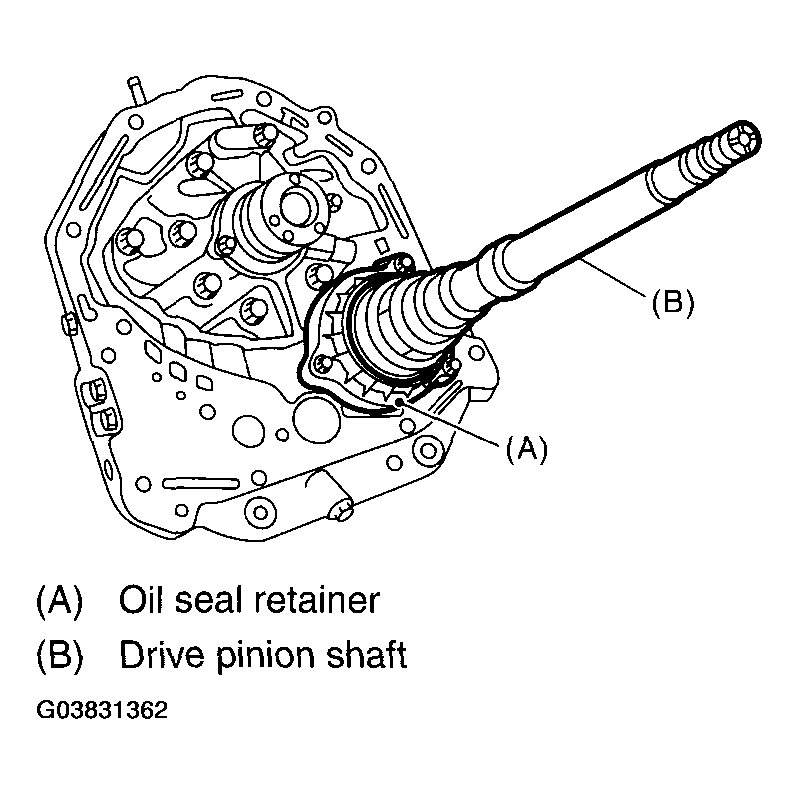

Fig 3: Installing Oil Seal Retainer
Courtesy of SUBARU OF AMERICA, INC.
