Oil Charge Pipe: Installation

WARNING: This page is about a different variant/trim than selected.

Install the oil charge pipe with a new O-ring applied with ATF.
Tightening torque:

41 N.m (4.2 kgf-m, 30.4 ft-lb)

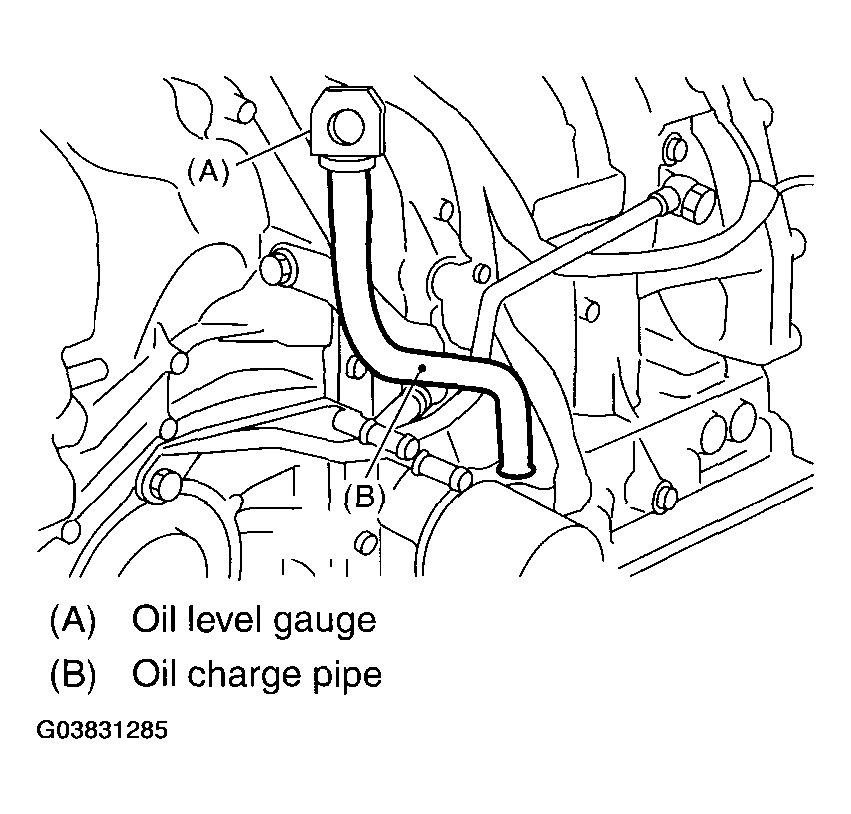

Fig 1: Installing Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake chamber.
< Ref. to INSTALLATION , Air Intake Chamber. >
