Inhibitor Switch: Adjustment

WARNING: This page is about a different variant/trim than selected.

Set the select lever to "N" range.
Loosen the three inhibitor switch securing bolts.
Insert the ST as vertical as possible into the holes in the inhibitor switch lever and switch body.
ST 499267300 STOPPER PIN

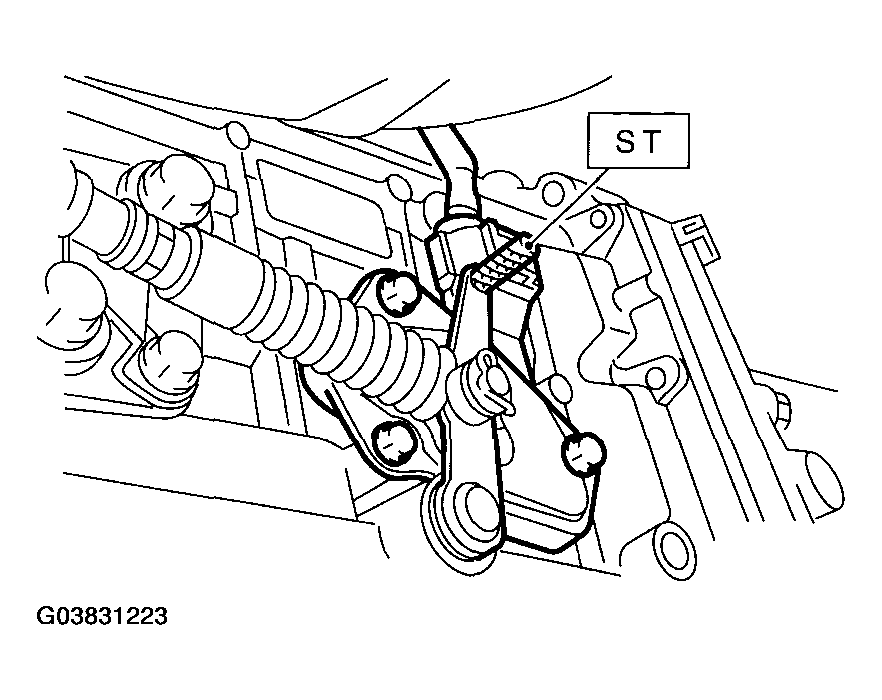

Fig 1: Adjusting Inhibitor Switch Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Tighten the three inhibitor switch securing bolts.
Tightening torque:

3.4 N.m (0.35 kgf-m, 2.5 ft-lb)
Repeat the above checks. If the inhibitor switch is determined to be "faulty", replace it.
