Section 24 (Automatic Transmission (4AT))
>>
General Description
>>
Components With Torque Specifications
>>
Planetary Gear And 2-4 Brake
Planetary Gear And 2-4 Brake
WARNING:
This page is about a different variant/trim than selected.

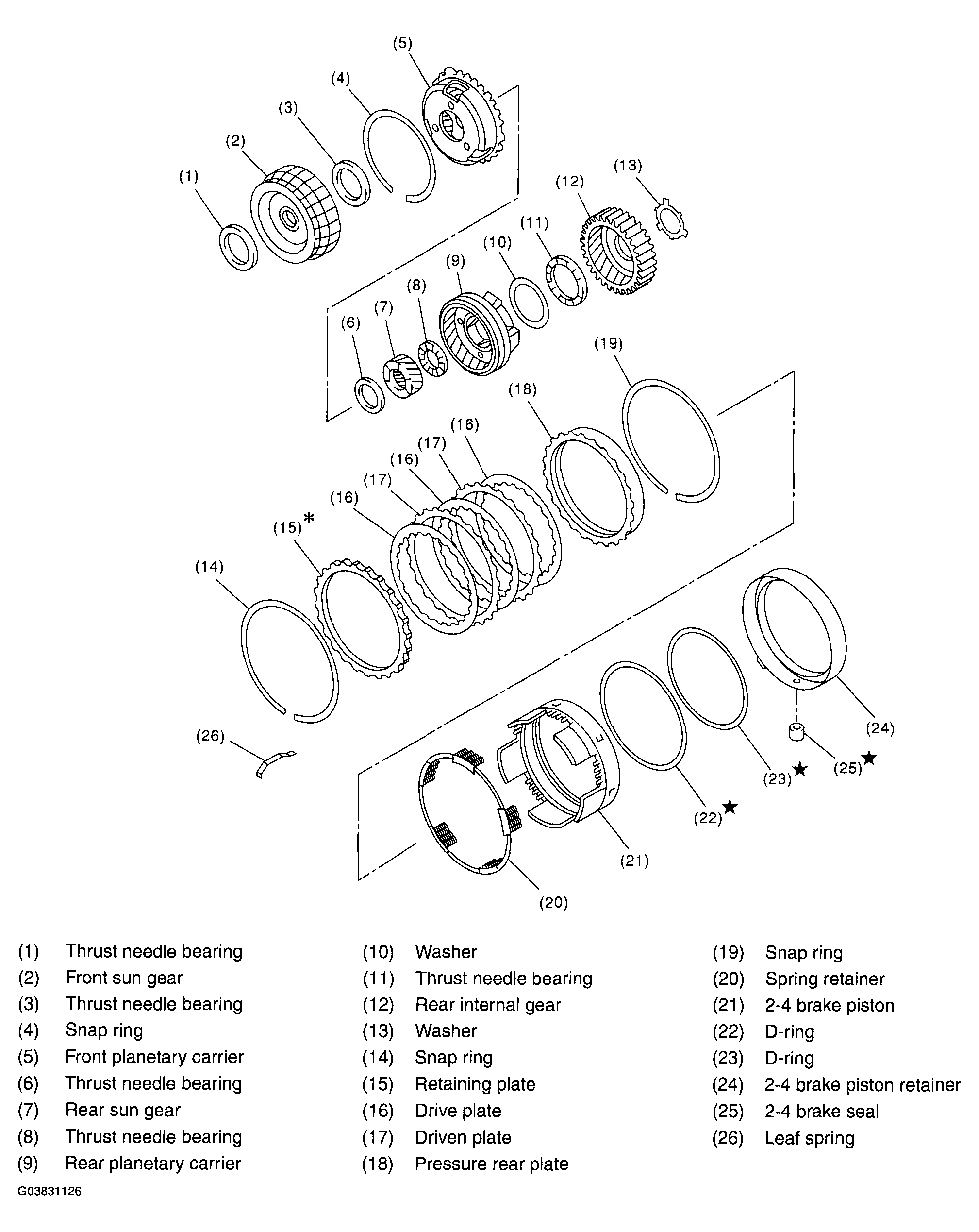

Fig 1: Identifying Planetary Gear And 2 - 4 Brake Components
Courtesy of SUBARU OF AMERICA, INC.
