Section 24 (Automatic Transmission (4AT))
>>
General Description
>>
Components With Torque Specifications
>>
High Clutch And Reverse Clutch
High Clutch And Reverse Clutch
WARNING:
This page is about a different variant/trim than selected.

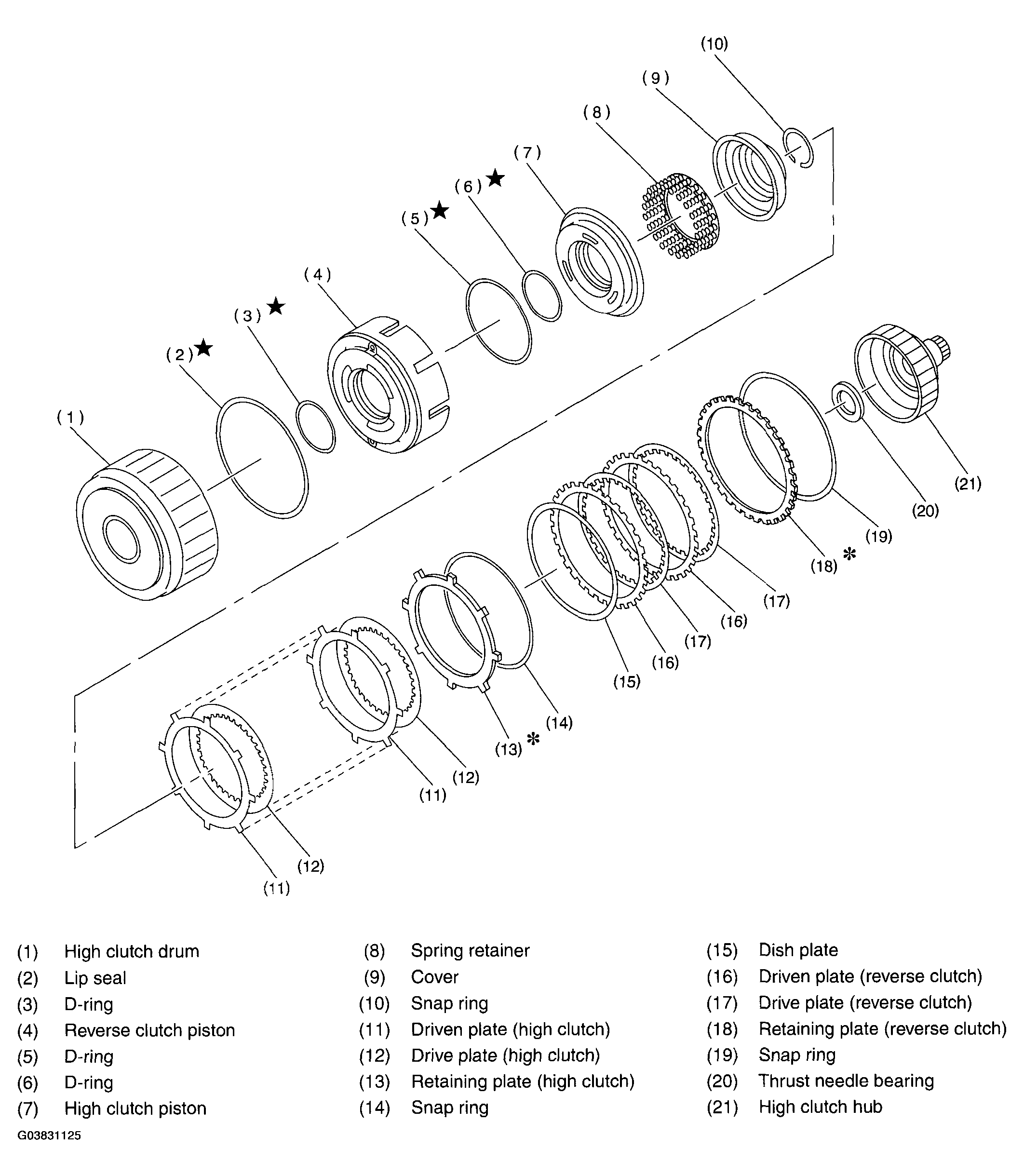

Fig 1: Identifying High Clutch And Reverse Clutch Components
Courtesy of SUBARU OF AMERICA, INC.
