Differential Gear

WARNING: This page is about a different variant/trim than selected.

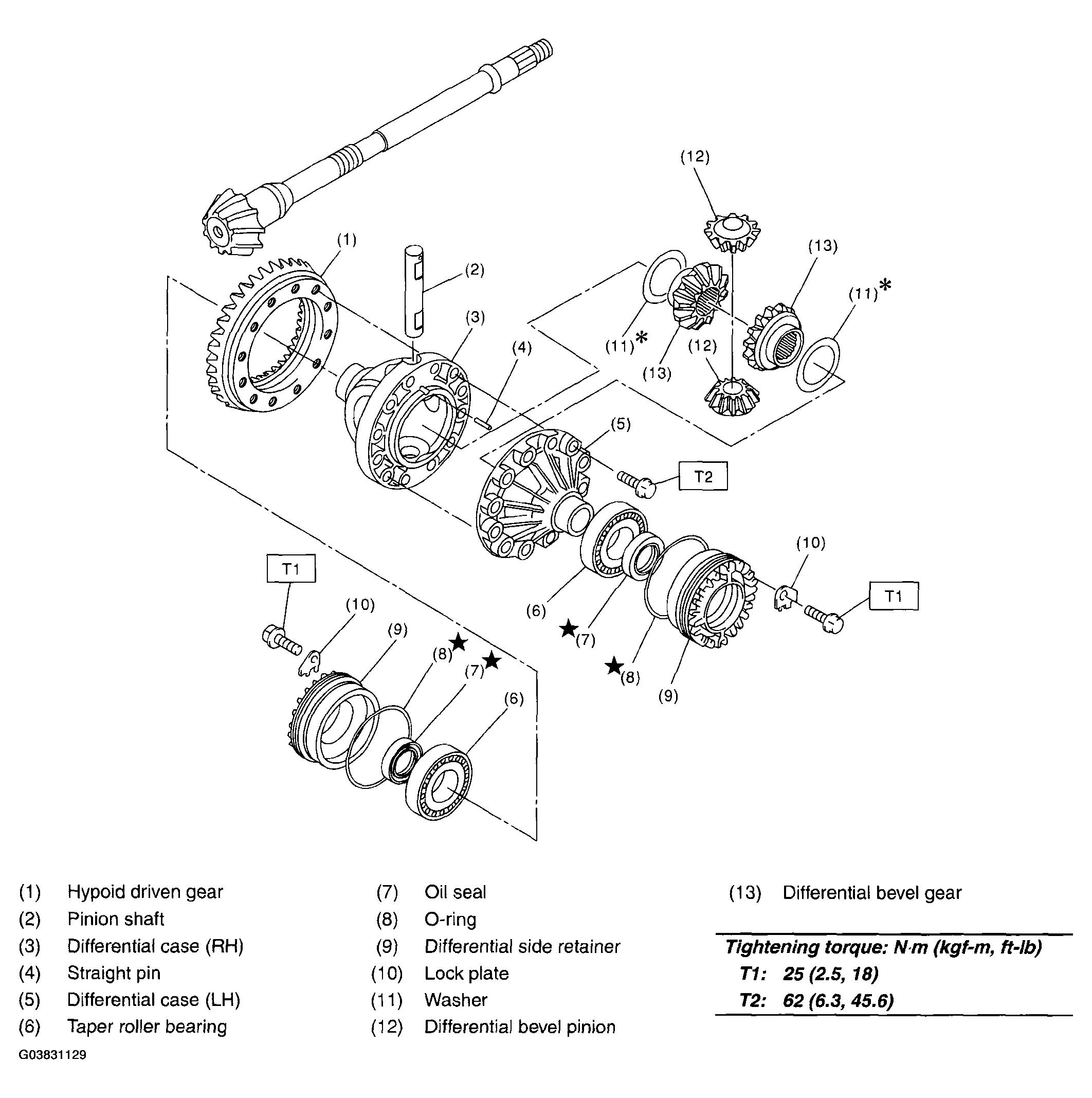

Fig 1: Exploded View Of Differential Gear Components With Torque Specifications
G03831129Courtesy of SUBARU OF AMERICA, INC.
