Control Valve And Harness Routing

WARNING: This page is about a different variant/trim than selected.

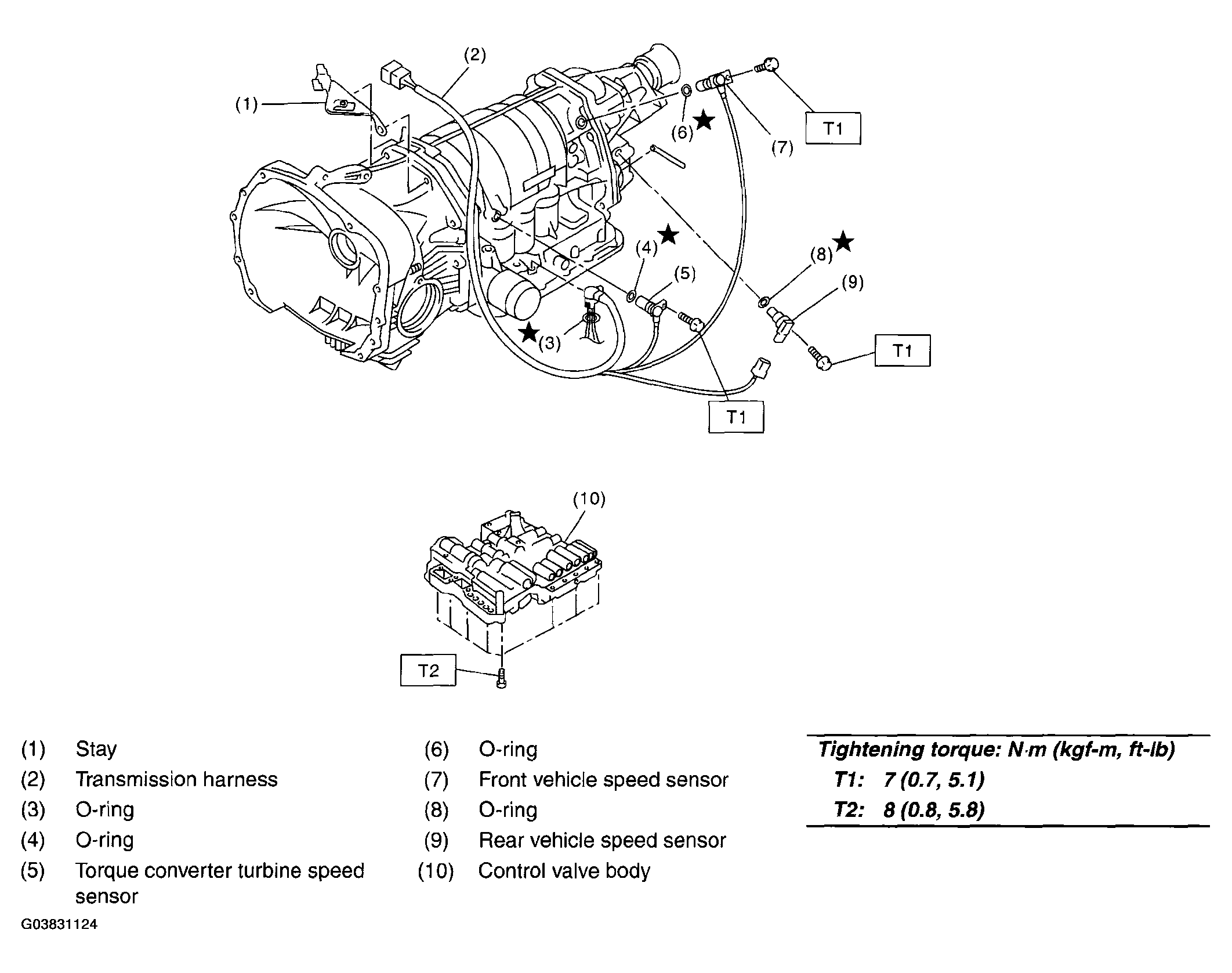

Fig 1: Control Valve And Harness Routing Replacement Components With Torque Specifications
G03831124Courtesy of SUBARU OF AMERICA, INC.
