Differential Case Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove taper roller bearing using ST and press.

    ST 498077000 REMOVER

    Fig 1: Removing Taper Roller Bearing Using ST And Press
    G03831398Courtesy of SUBARU OF AMERICA, INC.
  2. Secure the case in a vise and remove the hypoid driven gear tightening bolts, then separate the hypoid driven gear, case (RH) and case (LH).

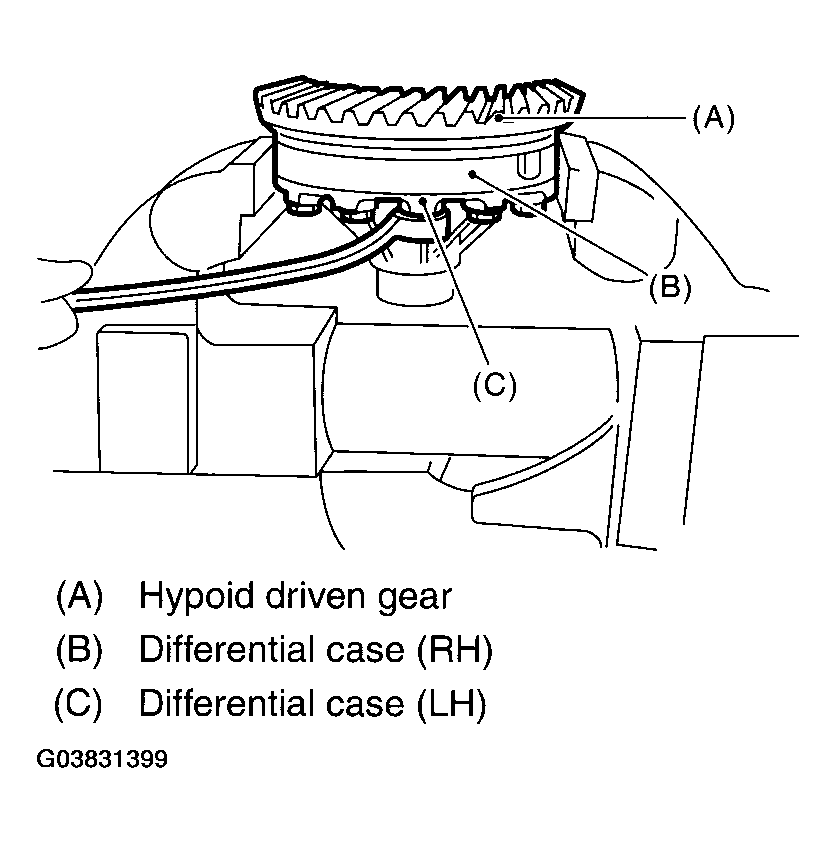

    Fig 2: Removing Hypoid Driven Gear
    G03831399Courtesy of SUBARU OF AMERICA, INC.
  3. Pull out the straight pin and shaft, and then remove the differential bevel gear, washer and differential bevel pinion.
    Fig 3: Removing Differential Bevel Gear
    G03831400Courtesy of SUBARU OF AMERICA, INC.
