Extension Case: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Take out the transfer clutch by lightly tapping the end of rear drive shaft.
    NOTE: Be careful not to damage the oil seal of extension case.

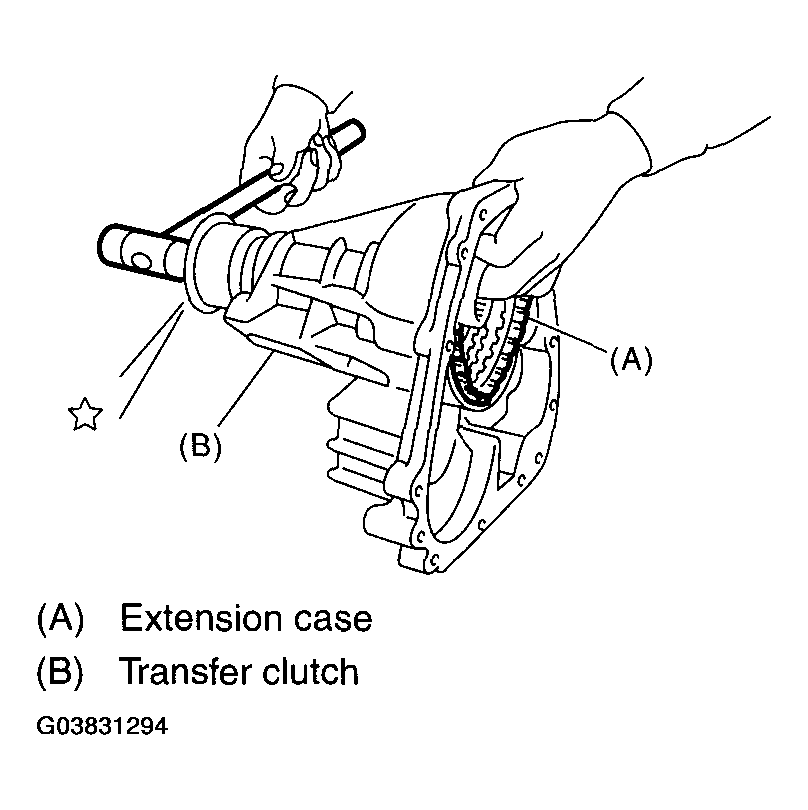

    Fig 1: Identifying Transfer Clutch
    G03831294Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the transfer clutch pipe without deforming the pipe.

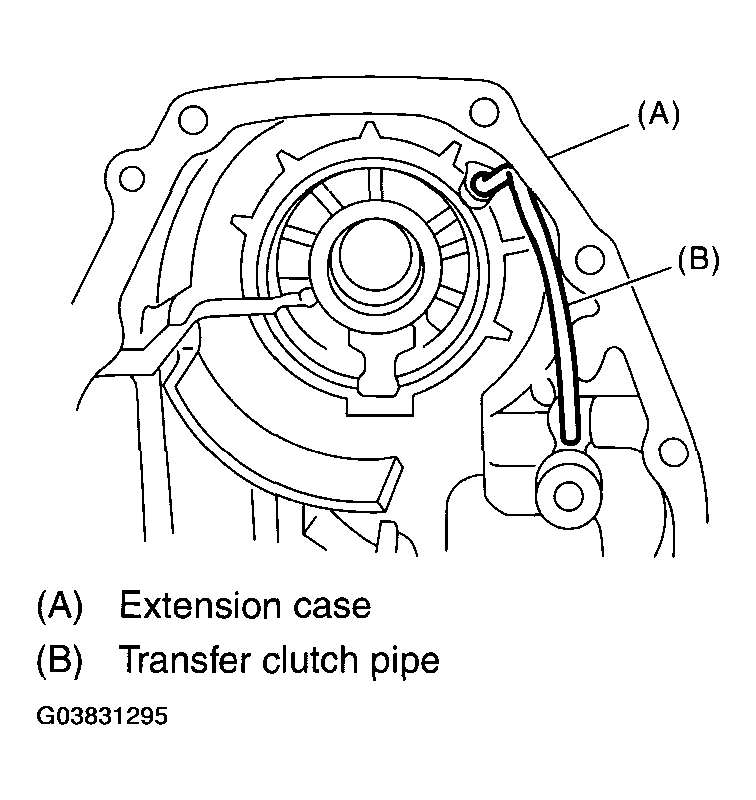

    Fig 2: Removing Transfer Clutch Pipe Without Deforming The Pipe
    G03831295Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the dust cover from extension case.
  4. Remove the oil seal from extension case.
