Install the oil cooler inlet pipe and outlet pipe with new washer.
Tightening torque:

T1:25 N.m (2.5 kgf-m, 18 ft-lb)

T2: 44 N.m (4.5 kgf-m, 32.5 ft-lb)

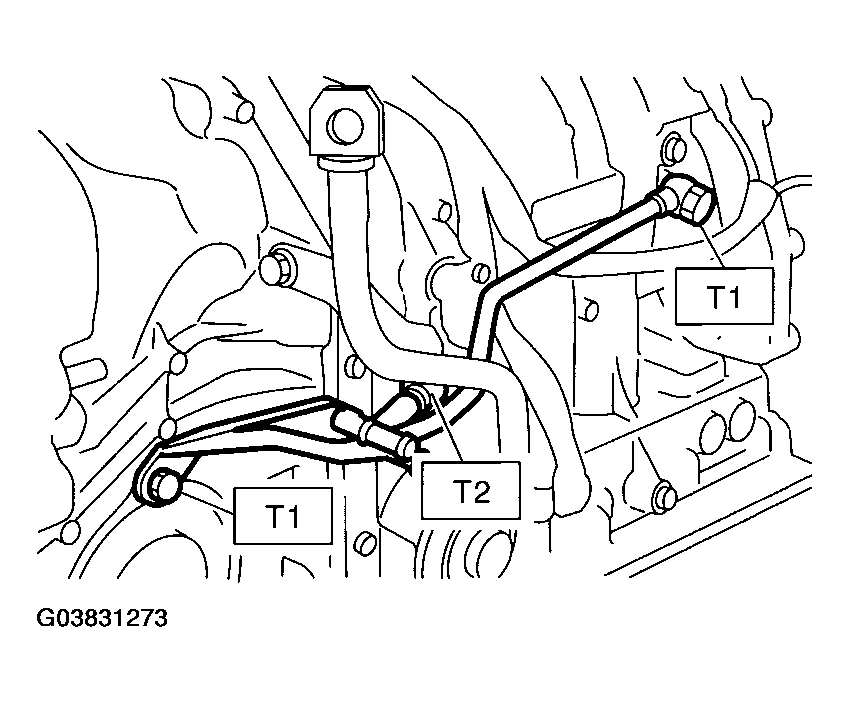

Fig 1: Installing Oil Cooler Inlet And Outlet Pipes
Courtesy of SUBARU OF AMERICA, INC.
Install the ATF cooler pipe to frame.

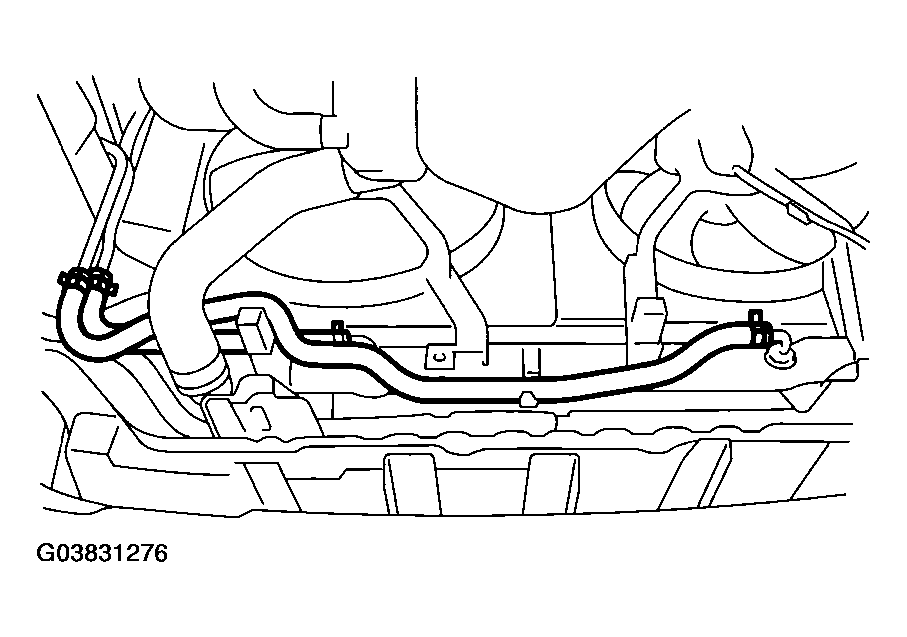

Fig 2: Installing ATF Cooler Pipe To Frame
Courtesy of SUBARU OF AMERICA, INC.
Connect the ATF cooler hose to pipe on transmission side.
NOTE:
- Install so that the hose is not folded over, excessively bent, or twisted.
- Be careful to insert the hose to the specified position.

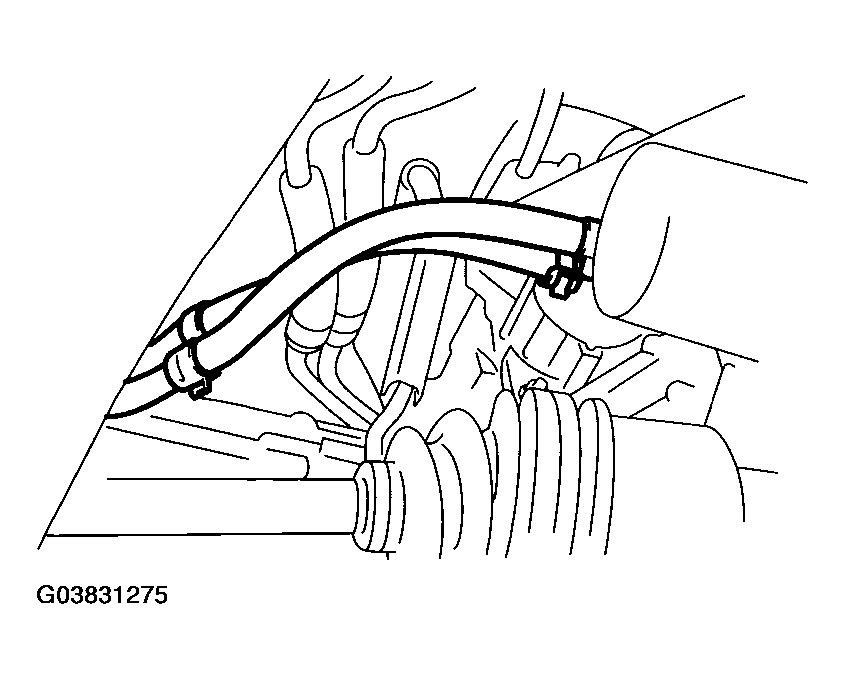

Fig 3: Connecting ATF Cooler Hose To Pipe On Transmission Side
Courtesy of SUBARU OF AMERICA, INC.
Connect the ATF cooler hose to pipe on radiator side.
NOTE:
- Install so that the hose is not folded over, excessively bent, or twisted.
- Be careful to insert the hose to the specified position.

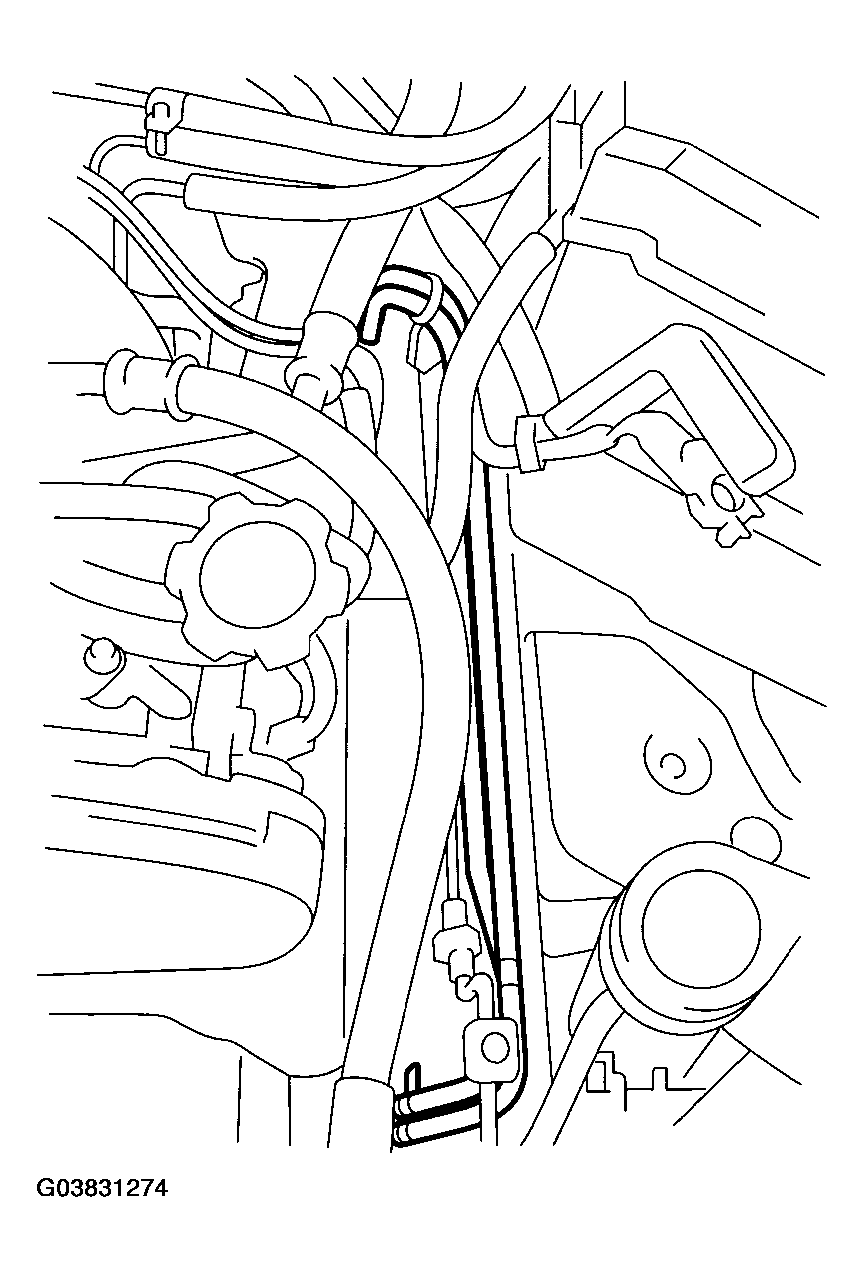

Fig 4: Connecting ATF Cooler Hose To Pipe On Radiator Side
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Install the battery.
Fill the ATF. < Ref. to , AUTOMATIC TRANSMISSION FLUID . >
NOTE: Make sure there are no ATF leaks in joints between the transmission, radiator, pipes, and hoses.
