Planetary Gear And Low Clutch

WARNING: This page is about a different variant/trim than selected.

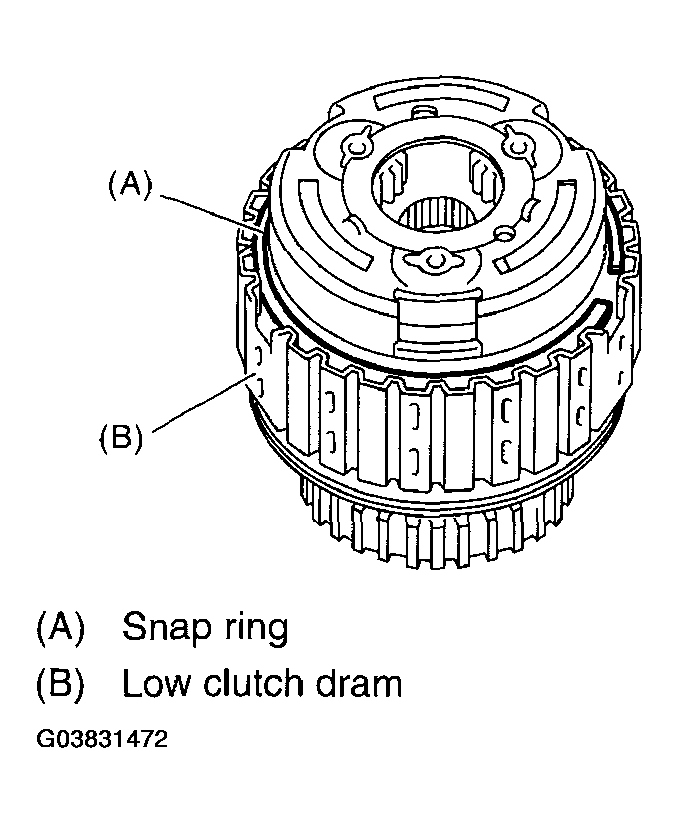

Remove the snap ring from low clutch drum.

Fig 1: Removing Snap Ring From Low Clutch Drum
Courtesy of SUBARU OF AMERICA, INC.

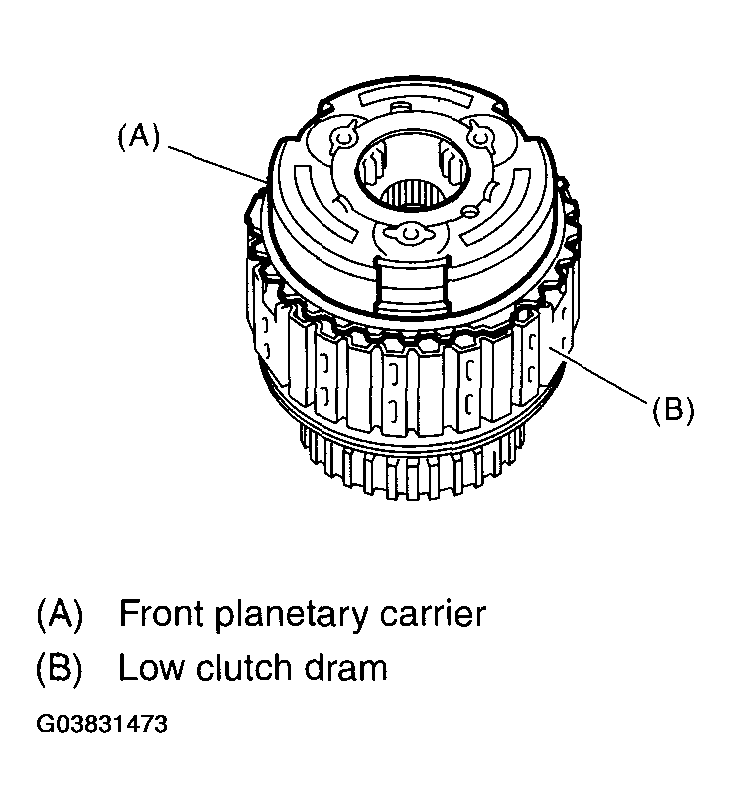

Take out the front planetary carrier.

Fig 2: Identifying Front Planetary Carrier
Courtesy of SUBARU OF AMERICA, INC.

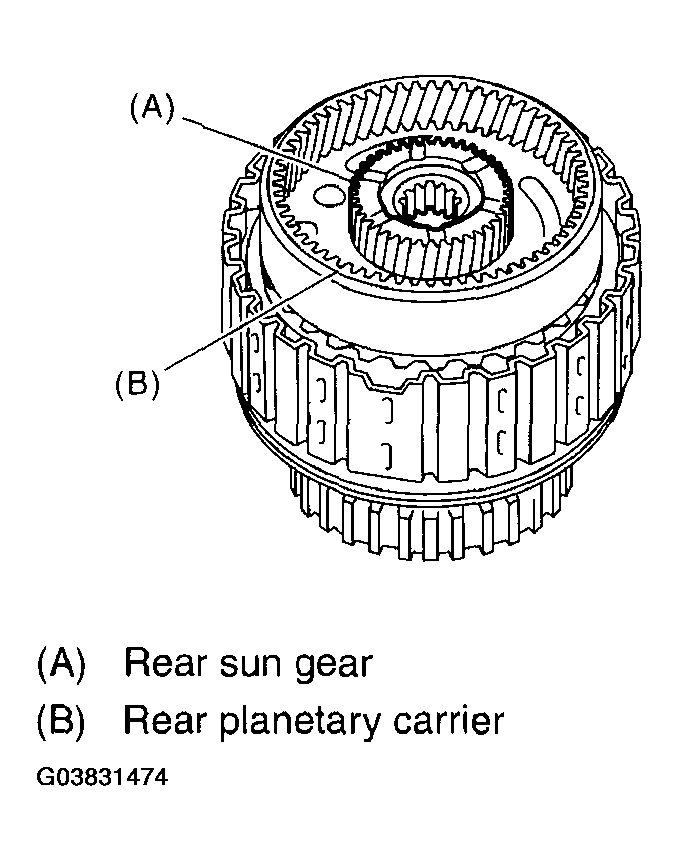

Take out the rear sun gear.

Fig 3: Identifying Rear Sun Gear
Courtesy of SUBARU OF AMERICA, INC.

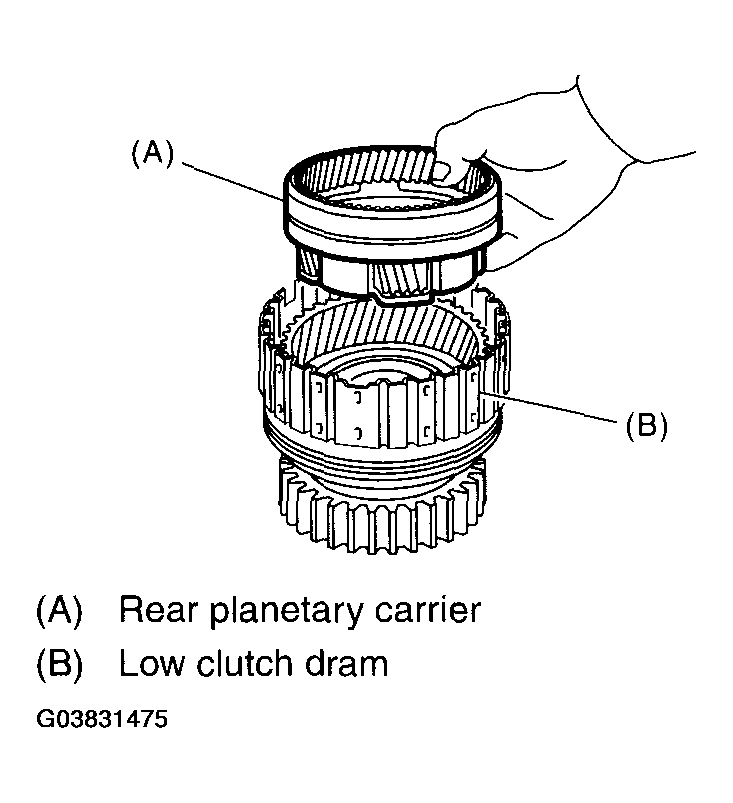

Take out the rear planetary carrier, washer and thrust needle bearing.

Fig 4: Taking Out Rear Planetary Carrier
Courtesy of SUBARU OF AMERICA, INC.

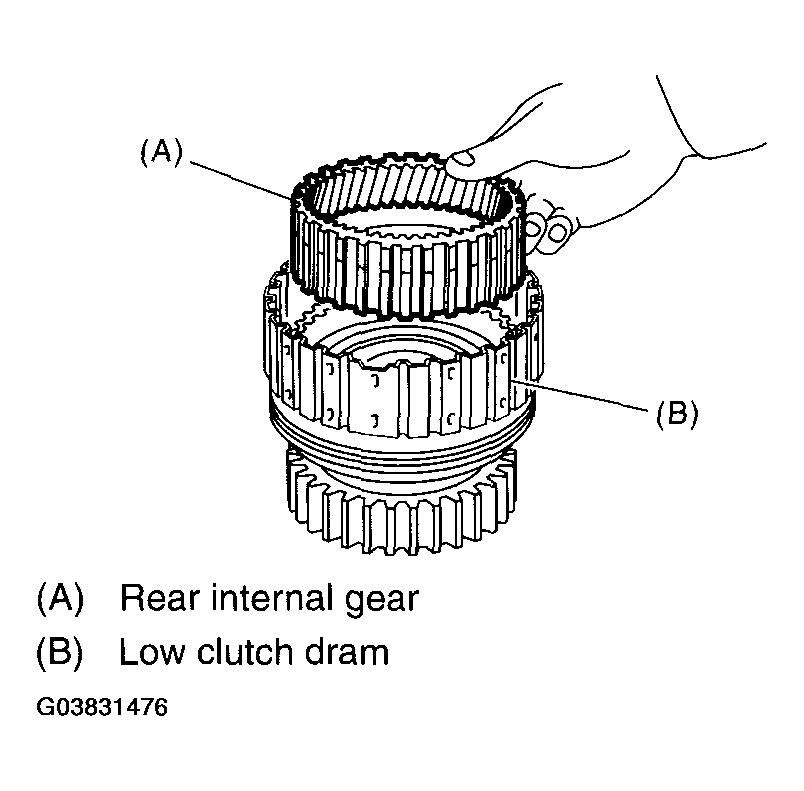

Take out the rear internal gear.

Fig 5: Taking Out Rear Internal Gear
Courtesy of SUBARU OF AMERICA, INC.

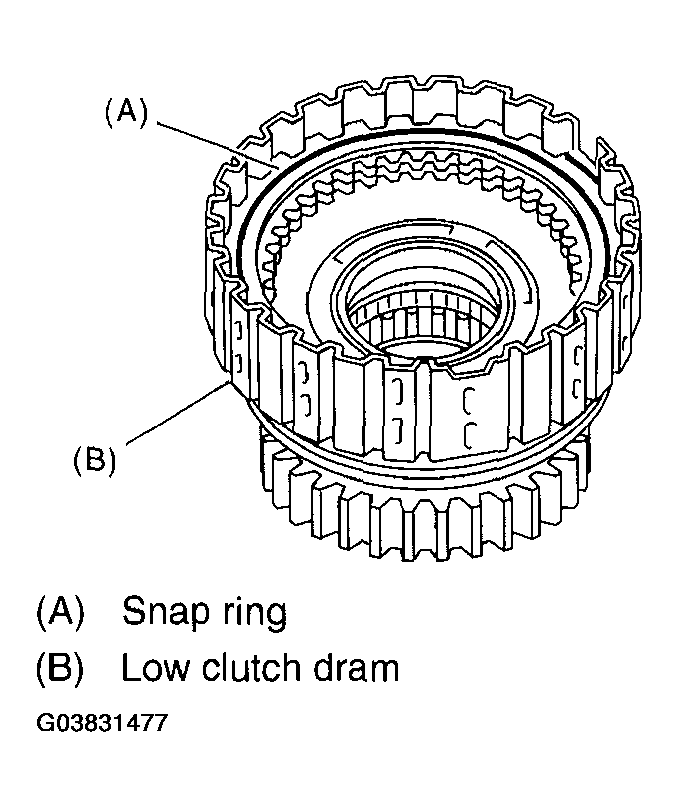

Remove the snap ring from low clutch drum.

Fig 6: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

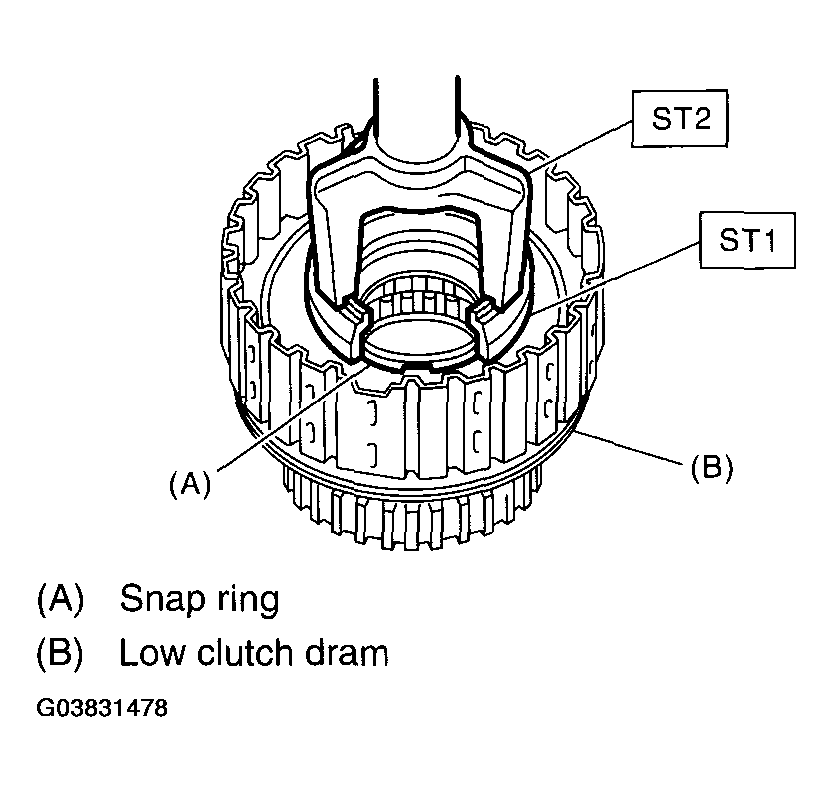

Compress the spring retainer, and remove the snap ring from low clutch drum using ST1 and ST2.
ST1 498627100 SEAT

ST2 398673600 COMPRESSOR

Fig 7: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the one-way clutch. < Ref. to , REMOVAL , AT Main Case. >

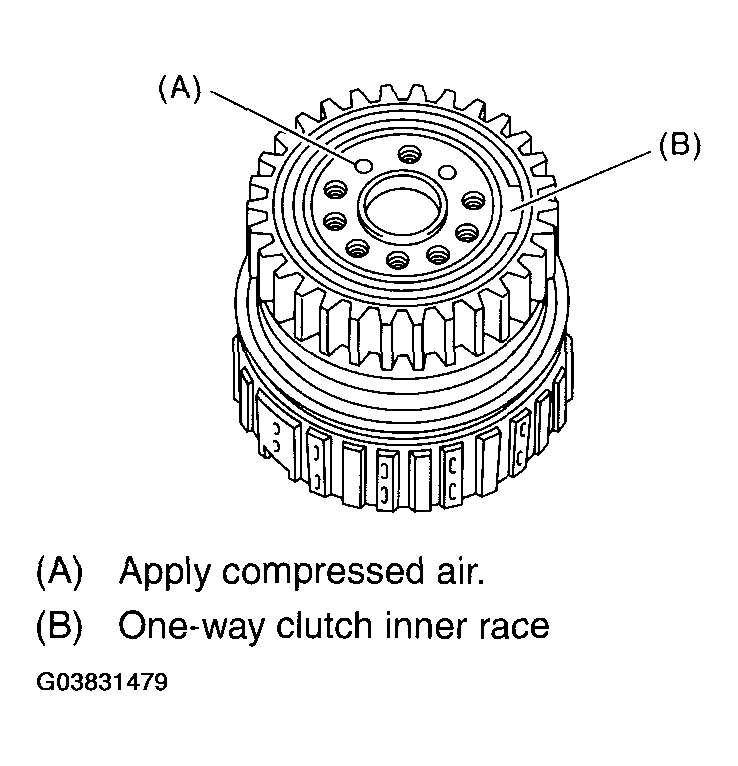

Install the one-way clutch inner race to low clutch drum, and then apply compressed air to remove the low clutch piston.

Fig 8: Identifying One Way Clutch
Courtesy of SUBARU OF AMERICA, INC.
Remove the one-way clutch inner race.

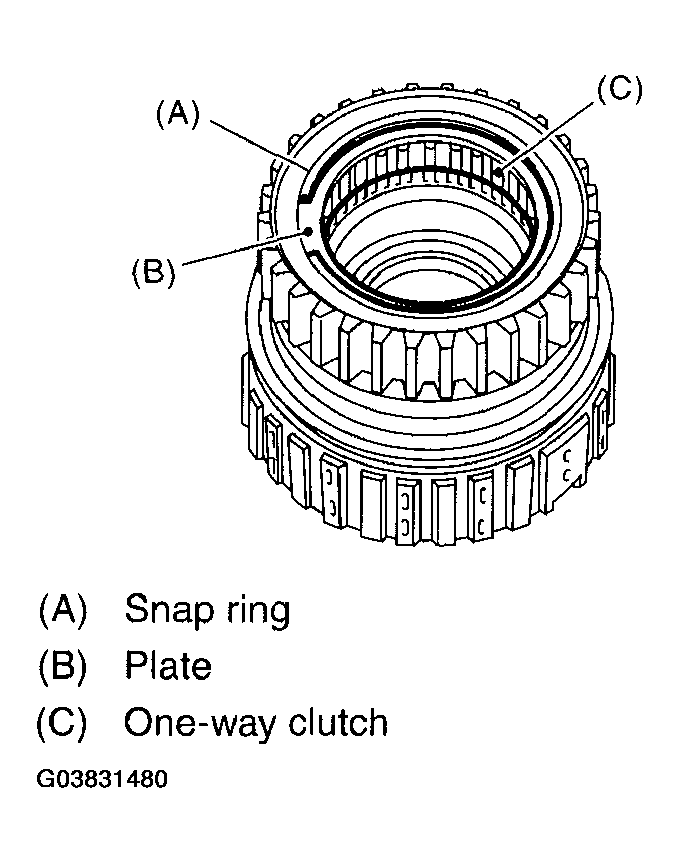

Remove the one-way clutch after taking out the snap ring.

Fig 9: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

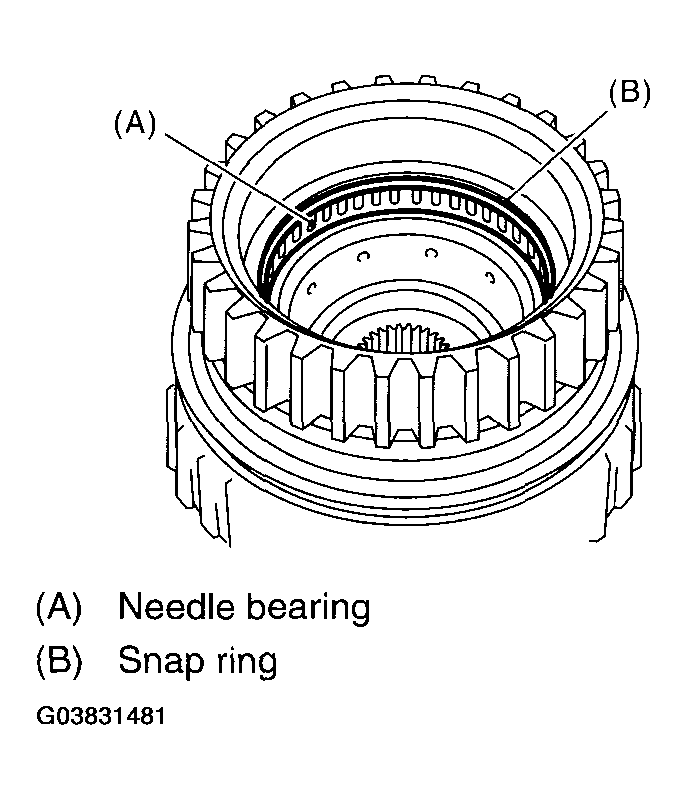

Remove the needle bearing after taking out the snap ring.

Fig 10: Removing Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
