One-Way Clutch Outer Race

WARNING: This page is about a different variant/trim than selected.

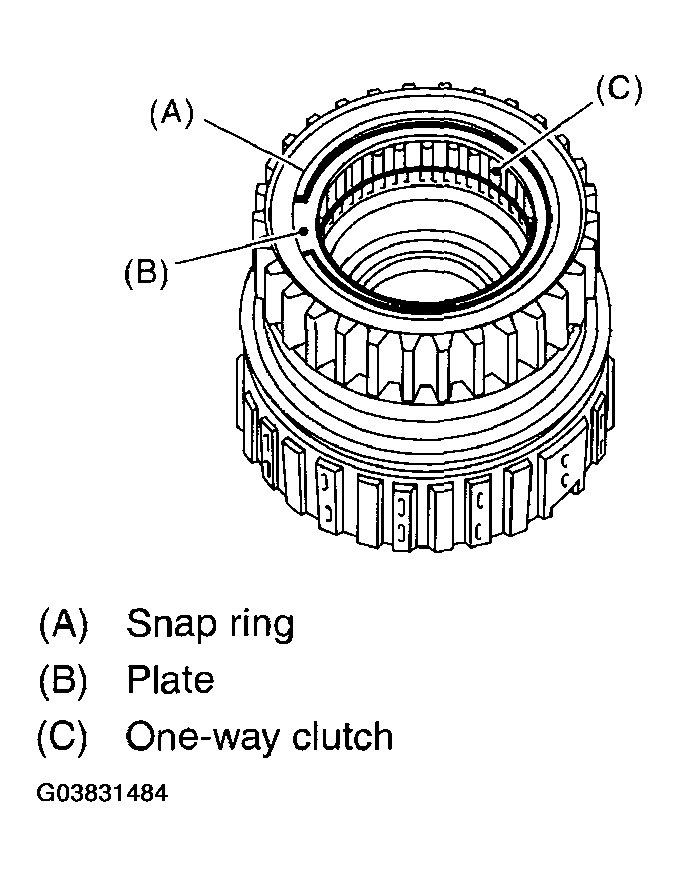

  1. Remove the one-way clutch after taking out the snap ring.
    Fig 1: Removing One-Way Clutch
    G03831484Courtesy of SUBARU OF AMERICA, INC.

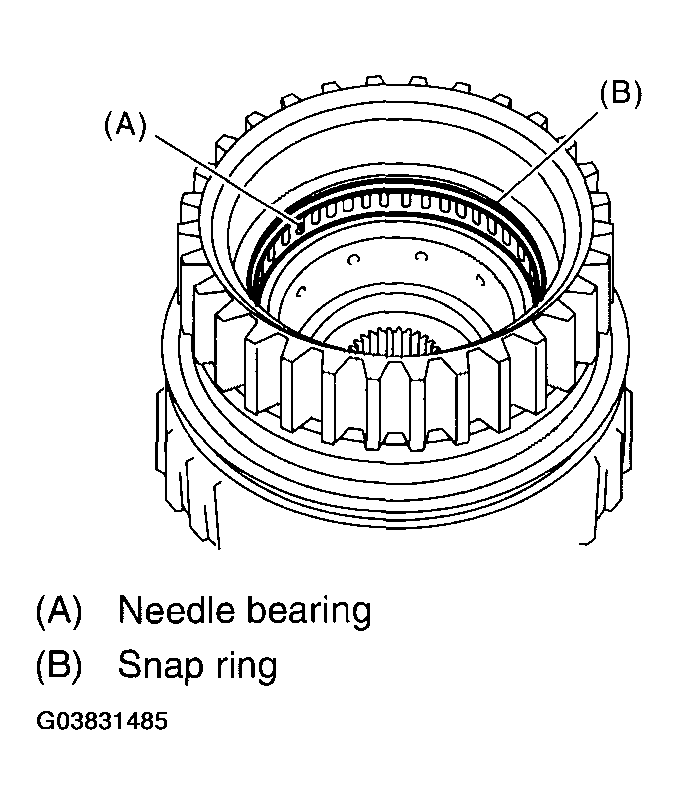

  2. Remove the needle bearing after taking out the snap ring.
    Fig 2: Removing Needle Bearing
    G03831485Courtesy of SUBARU OF AMERICA, INC.
