High Clutch And Reverse Clutch

WARNING: This page is about a different variant/trim than selected.

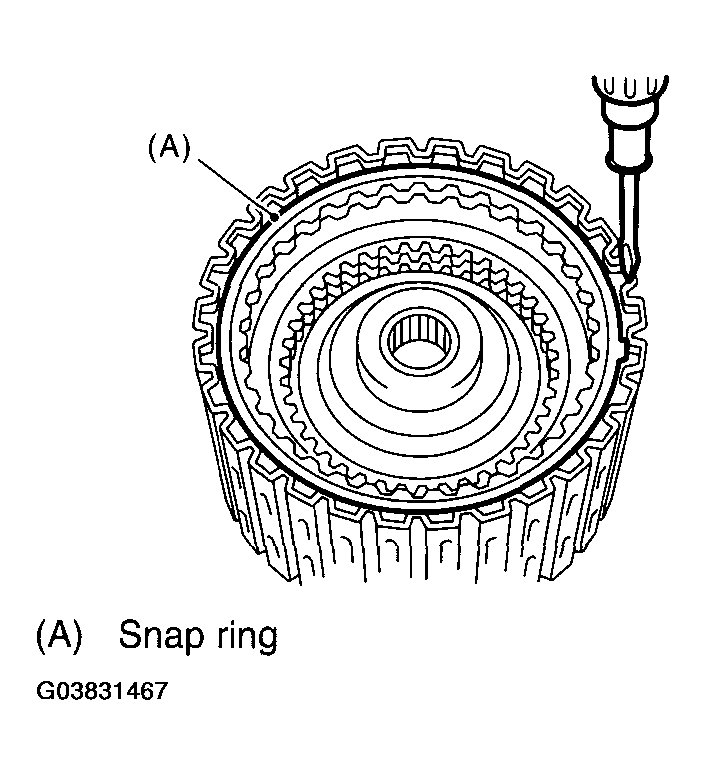

Remove the snap ring, and then take out the retaining plate, drive plate and driven plate.

Fig 1: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

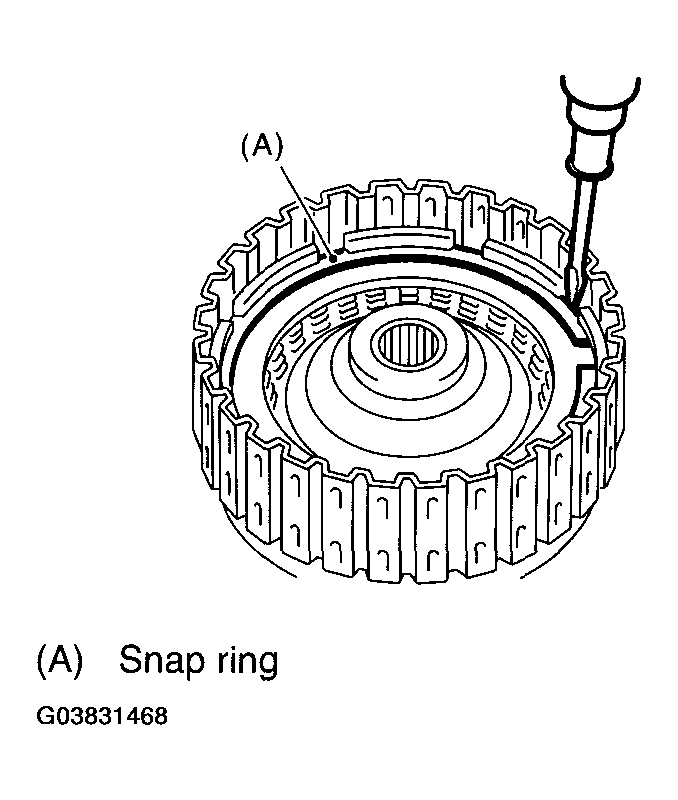

Remove the snap ring, and then take out the retaining plate, drive plate and driven plate.

Fig 2: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

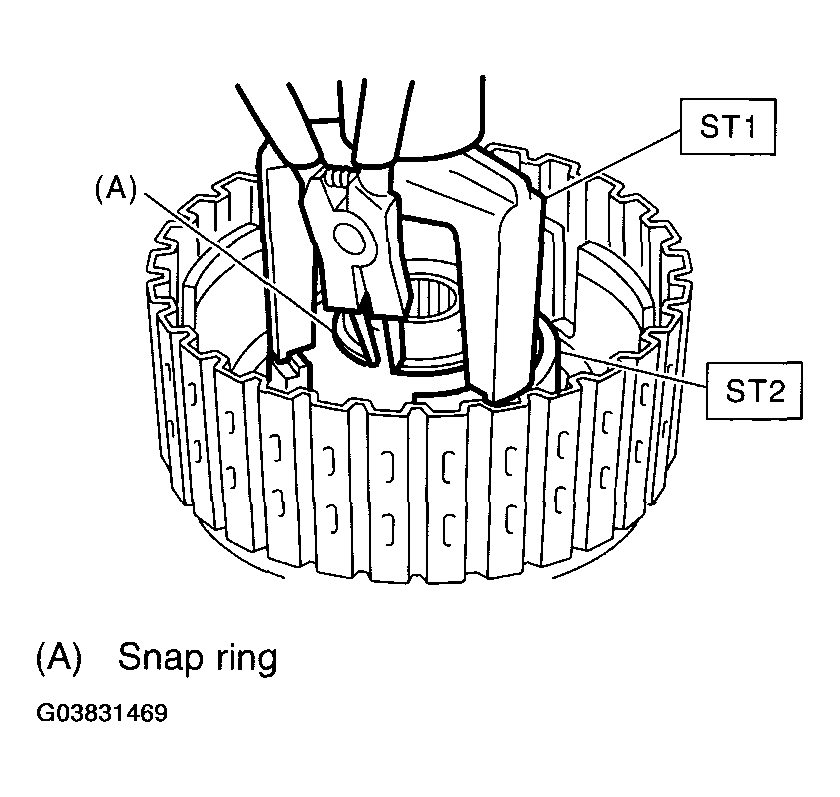

Using the ST1 and ST2, remove the snap ring.
ST1 398673600 COMPRESSOR

ST2 498627100 SEAT

Fig 3: Removing Snap Ring Using ST1 And ST2
Courtesy of SUBARU OF AMERICA, INC.

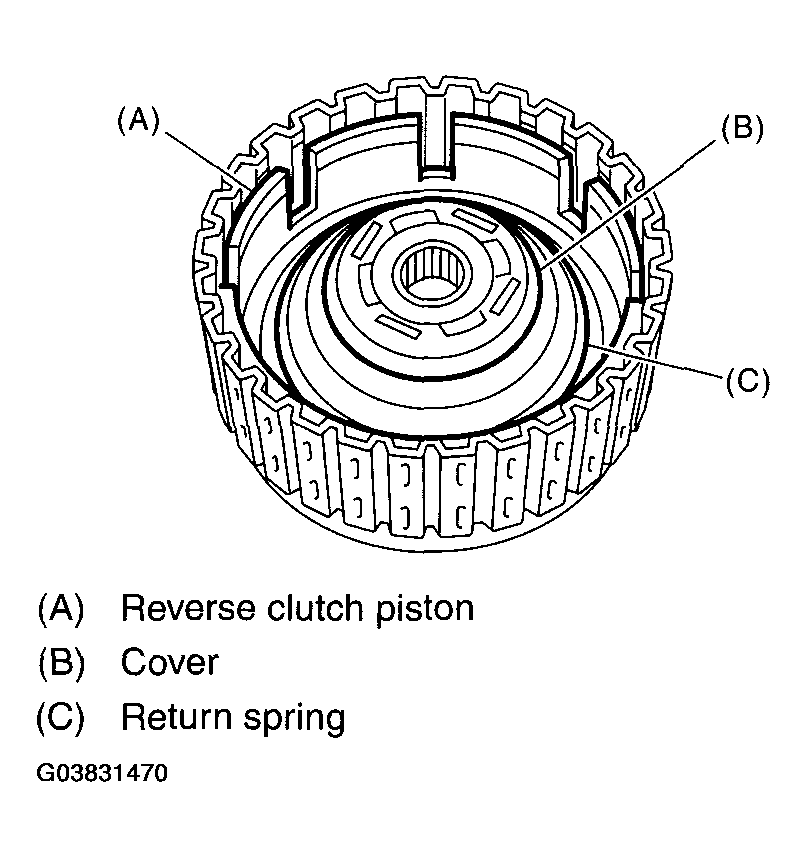

Take out the clutch cover, spring retainer, high clutch piston and reverse clutch piston.

Fig 4: Taking Out Clutch Cover
Courtesy of SUBARU OF AMERICA, INC.

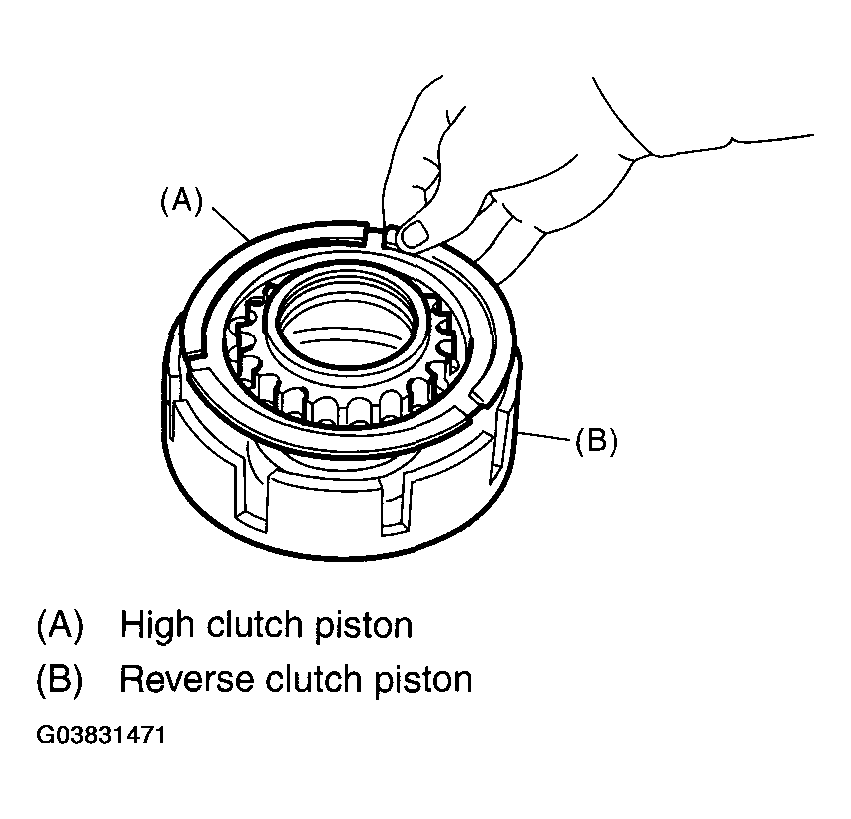

Remove the seal ring and lip seal from the high clutch piston and reverse clutch piston.

Fig 5: Removing Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
