One-Way Clutch Outer Race

WARNING: This page is about a different variant/trim than selected.

Install the needle bearing, and then secure with the snap ring.

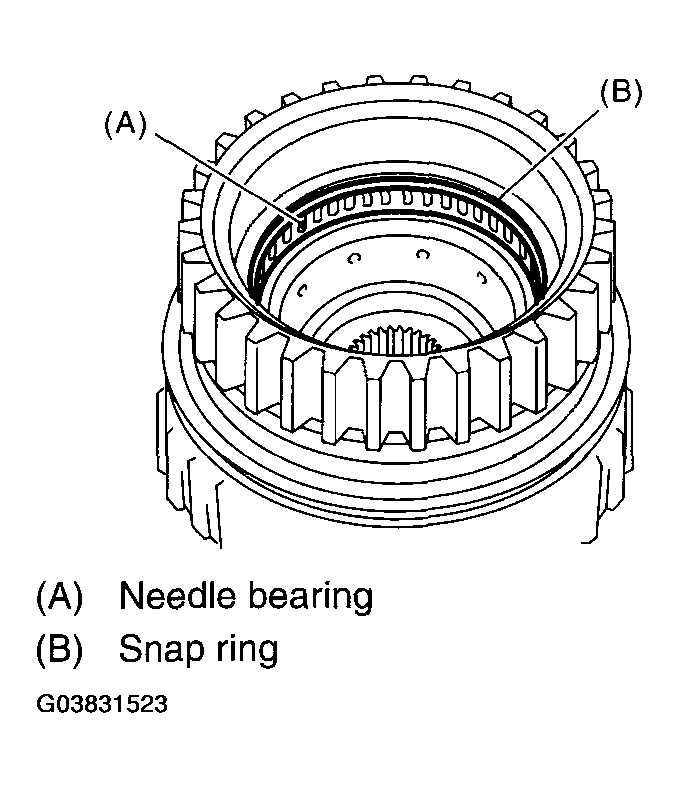

Fig 1: Installing Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Install the one-way clutch and one-way clutch inner race, and then secure with the snap ring.
Set the inner race. Make sure that the clutch locks in the clockwise direction and rotates freely in the counterclockwise direction.

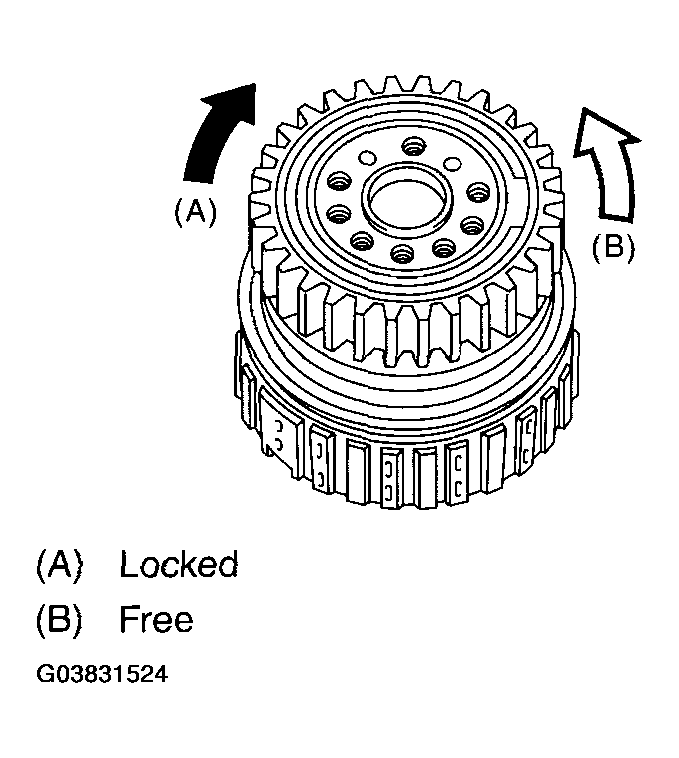

Fig 2: Identifying Locked Clutch
Courtesy of SUBARU OF AMERICA, INC.
