Section 23 (Diagnostic Trouble Code (DTC) Detecting Criteria (H4DOTC))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P1443 Vent Control Solenoid Valve Function Problem
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

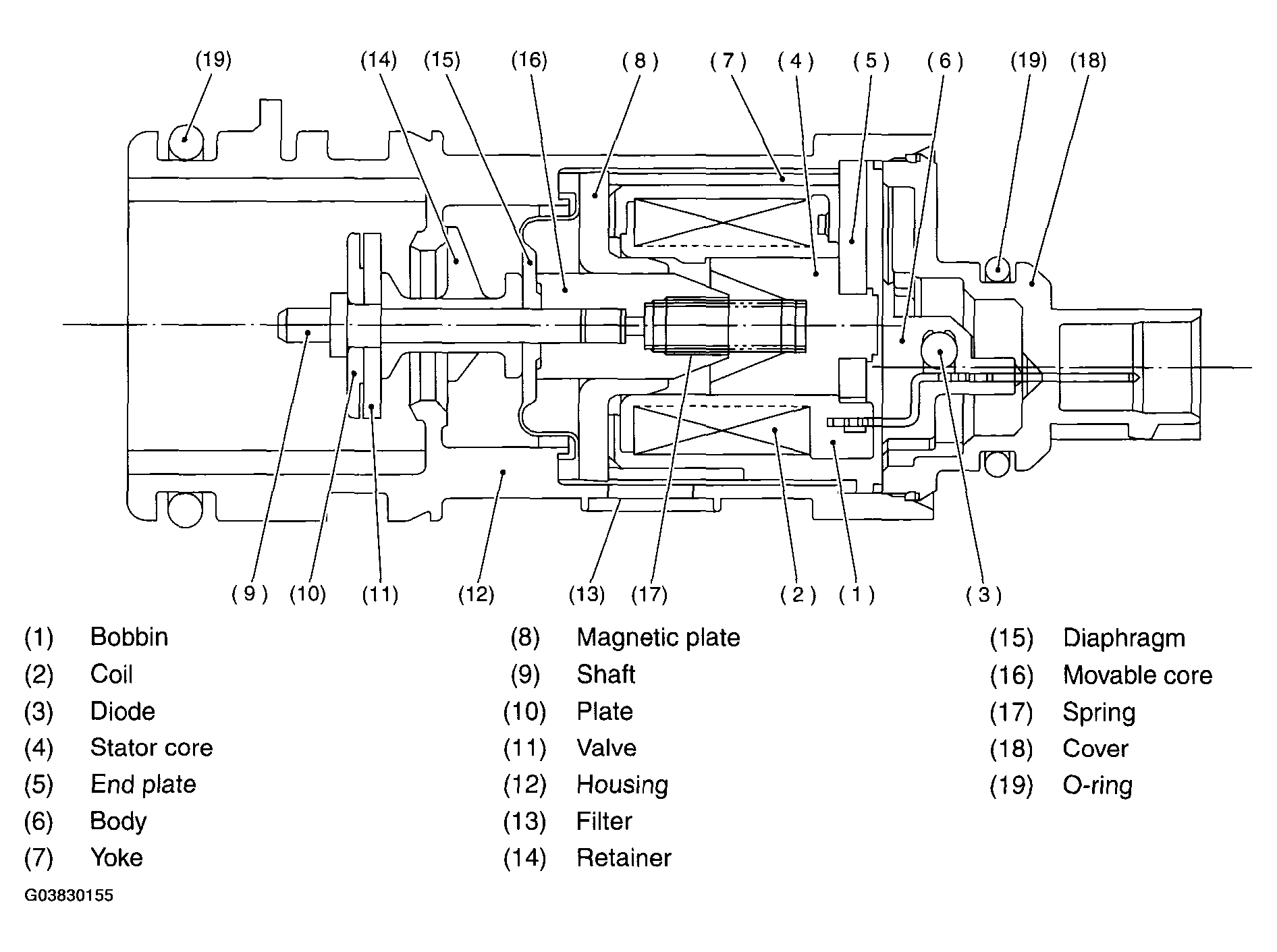

Fig 1: DTC P1443 Vent Control Solenoid Valve Function Problem - Component Description
Courtesy of SUBARU OF AMERICA, INC.
