Details of Judgment (Always 1000 milliseconds when the actual opening angle </= target opening angle)

WARNING: This page is about a different variant/trim than selected.

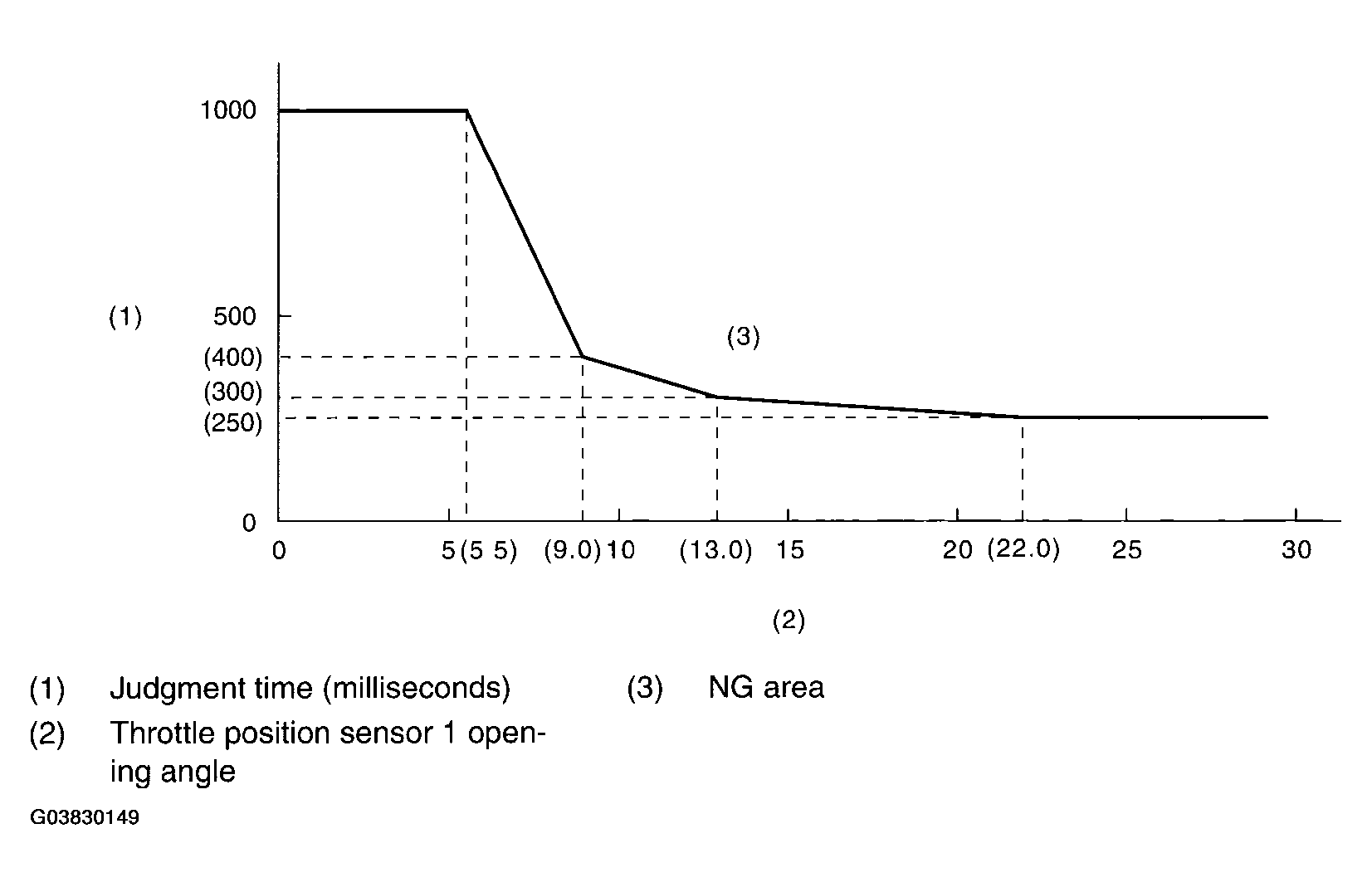

Fig 1: Judgment Of Details Graph

Courtesy of SUBARU OF AMERICA, INC.

Malfunction Indicator Light Illumination: Illuminates as soon as malfunction occurs.
