0.02-inch Diagnosis
WARNING: This page is about a different variant/trim than selected.
0.02-INCH DIAGNOSIS

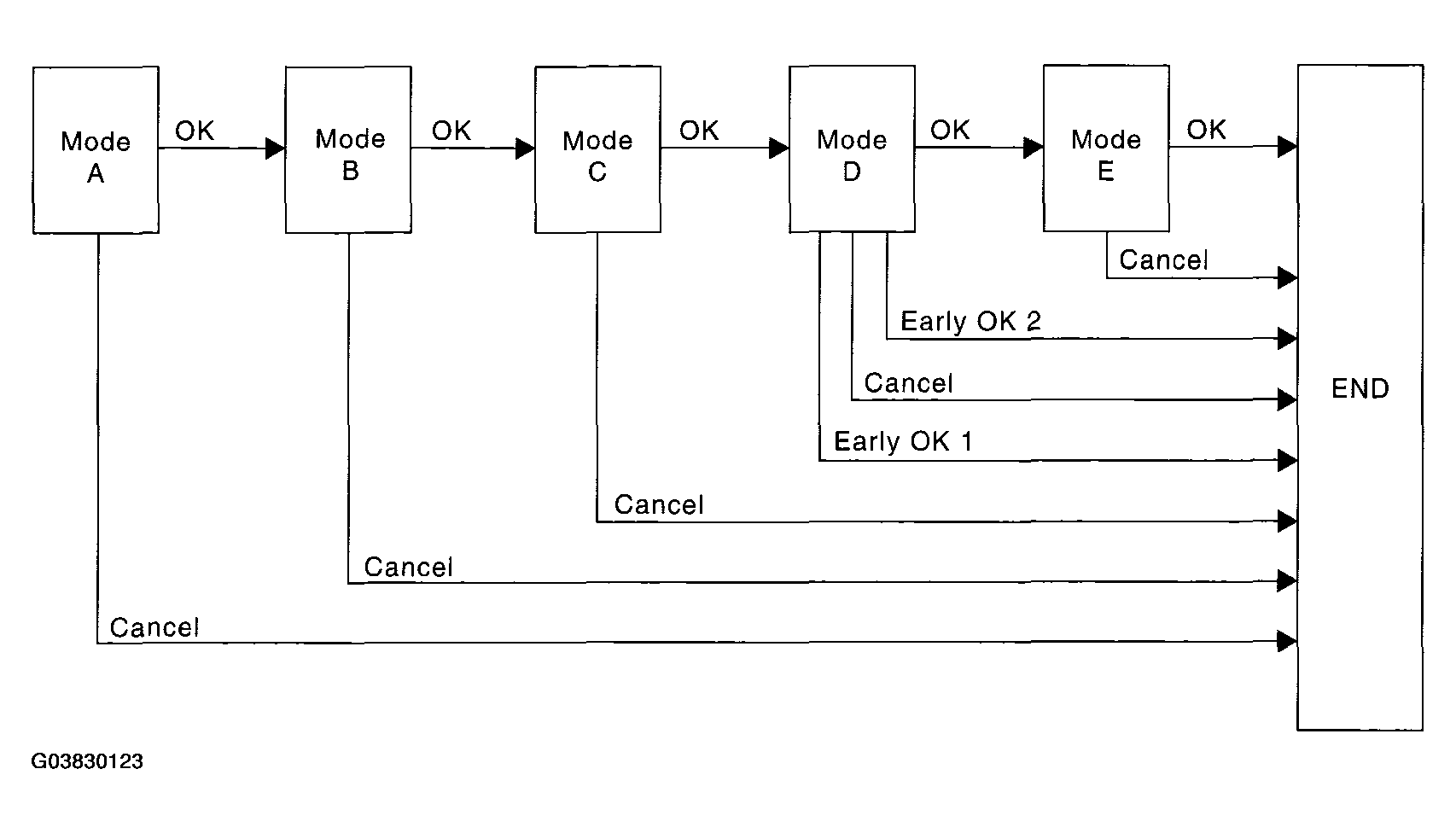

| Mode | Mode Description | Diagnosis Period |
|---|---|---|
| Mode A (0 point correction) |
Wait until the tank pressure returns to 0 point (0 kPa (0 mmHg, 0 inHg)) when tank pressure is high. | 0 - 12 seconds |
| Mode B (Introduce negative pressure) |
Introduce the intake manifold pressure to the fuel tank and reduce the tank pressure to the desired value. | 0 - 27 seconds |
| Mode C (Maintain negative pressure) |
Wait until the tank pressure returns to start pressure of P2 calculation. | 0 - 20 seconds |
| Mode D (Calculation of negative pressure variation) |
Calculate the time until the tank pressure becomes the end pressure of P2 calculation. Make advanced OK judgment when the tank pressure does not become the end pressure of P2 calculation. | 0 - 200 seconds |
| Mode E (Calculation of Evaporative gas yield) |
Calculate the amount of evaporative gas yield (P1). | 0 - 280 seconds |
