Section 23 (Diagnostic Trouble Code (DTC) Detecting Criteria (H4DOTC))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0335 Crankshaft Position Sensor "A" Circuit
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

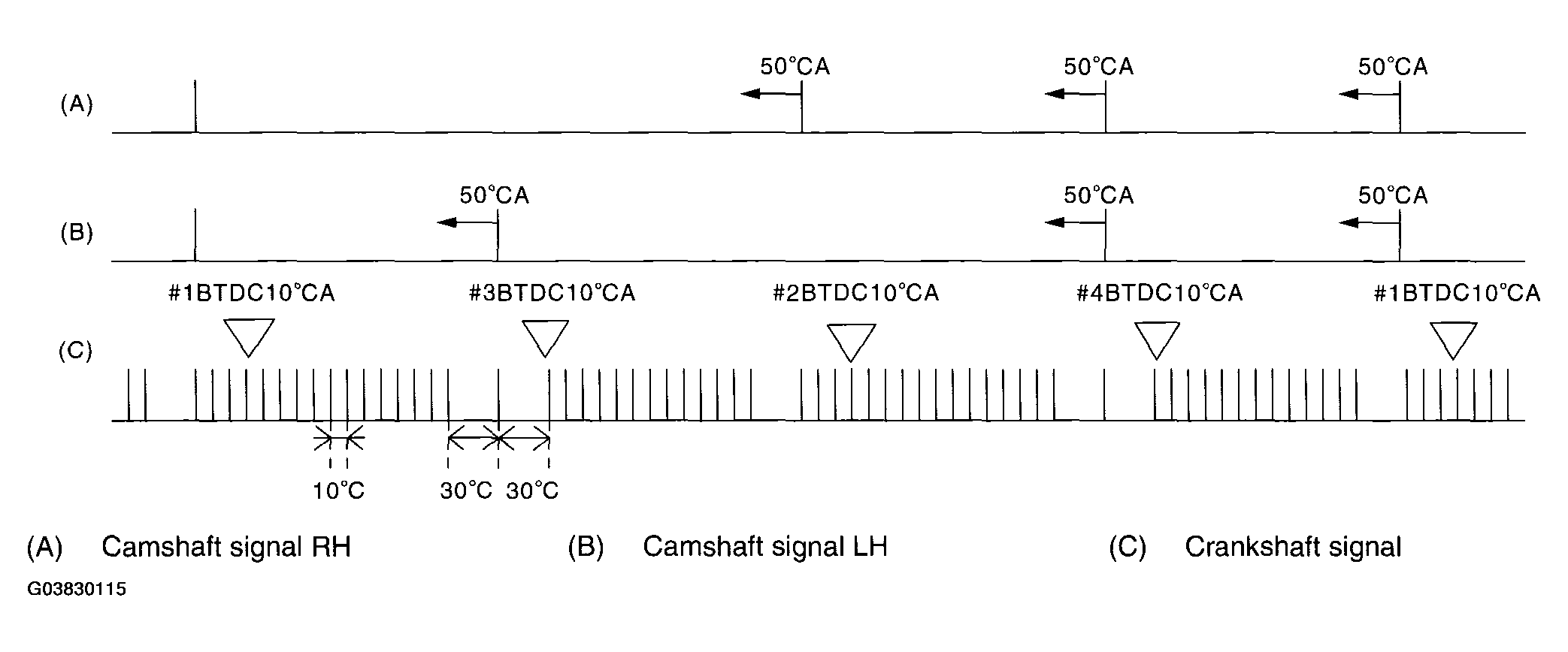

Fig 1: DTC P0335 Crankshaft Position Sensor - Camshaft Signal (LH And RH)
Courtesy of SUBARU OF AMERICA, INC.

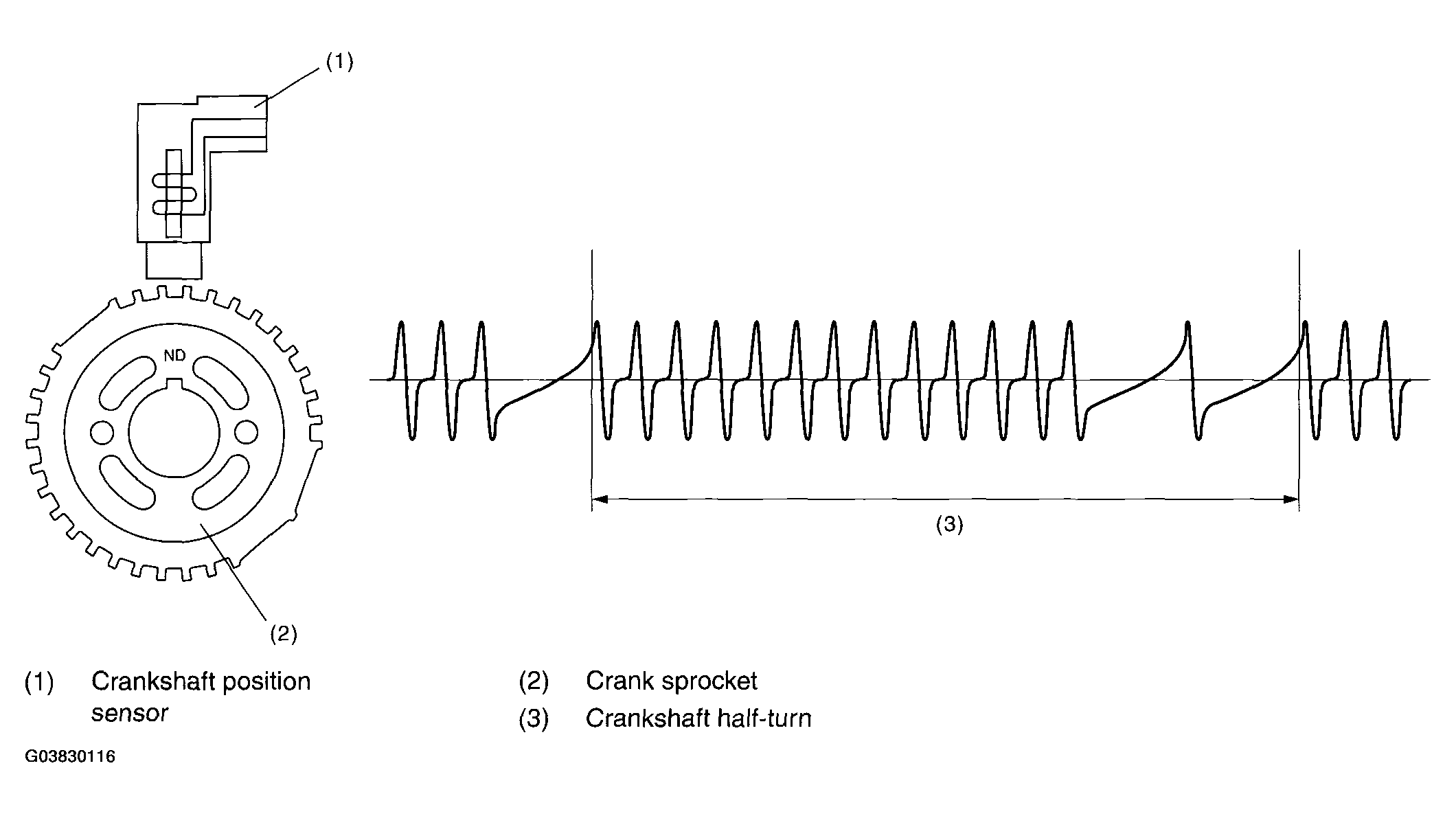

Fig 2: DTC P0335 Crankshaft Position Sensor - Crankshaft Position Sensor And Crank Sprocket
Courtesy of SUBARU OF AMERICA, INC.
