Diagnostic Method: Notes

When the misfire occurred, the engine speed is decreased and the crankshaft position speed will change. Calculate the interval difference value (diagnostic value) from crankshaft position speed by the following formula, and judge whether the misfire occurs or not comparing the calculated result with judgment value. Counting the number of misfire up, and if the misfire ratio is higher during 1000 rev. or 200 rev., judge NG for the corresponding cylinder.

Calculate the diagnostic value (from crankshaft position speed)

--> Misfire detection every single ignition (Compare diagnostic value with judgment value) 180° Interval Difference Method 360° Interval Difference Method 720° Interval Difference Method

--> NG judgment (Judge misfire occurrence required by the law) (Compare number of misfire with judgment) FTP 1.5 times misfire NG judgment Catalyst damage misfire NG judgment

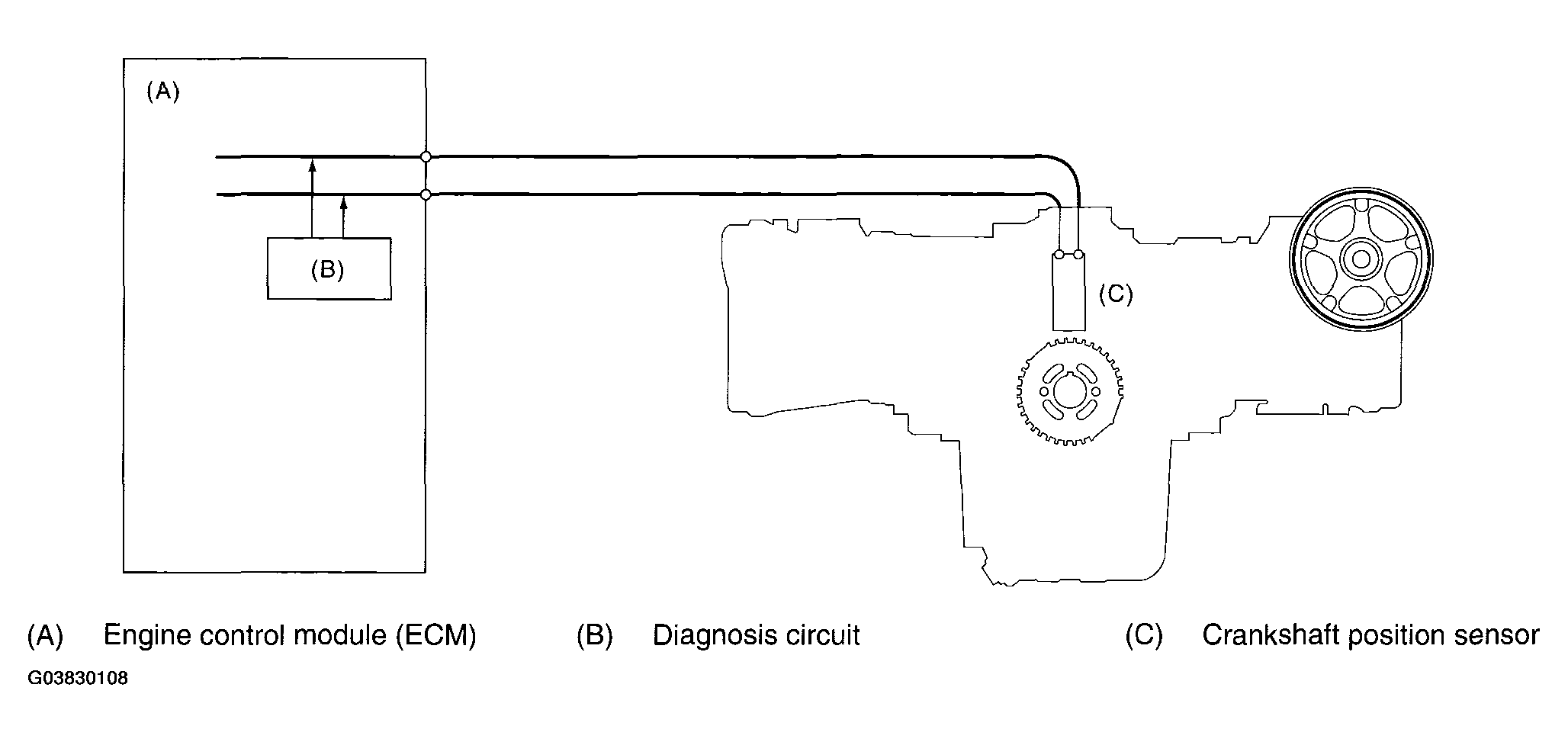

As the following figure, pick out a random cylinder as the standard and name it omg 0. And the former crankshaft position speed is named omg 1, the second former crankshaft position speed is named omg 2, the third is named omg 3, and the following is the same.
