Component Description

WARNING: This page is about a different variant/trim than selected.

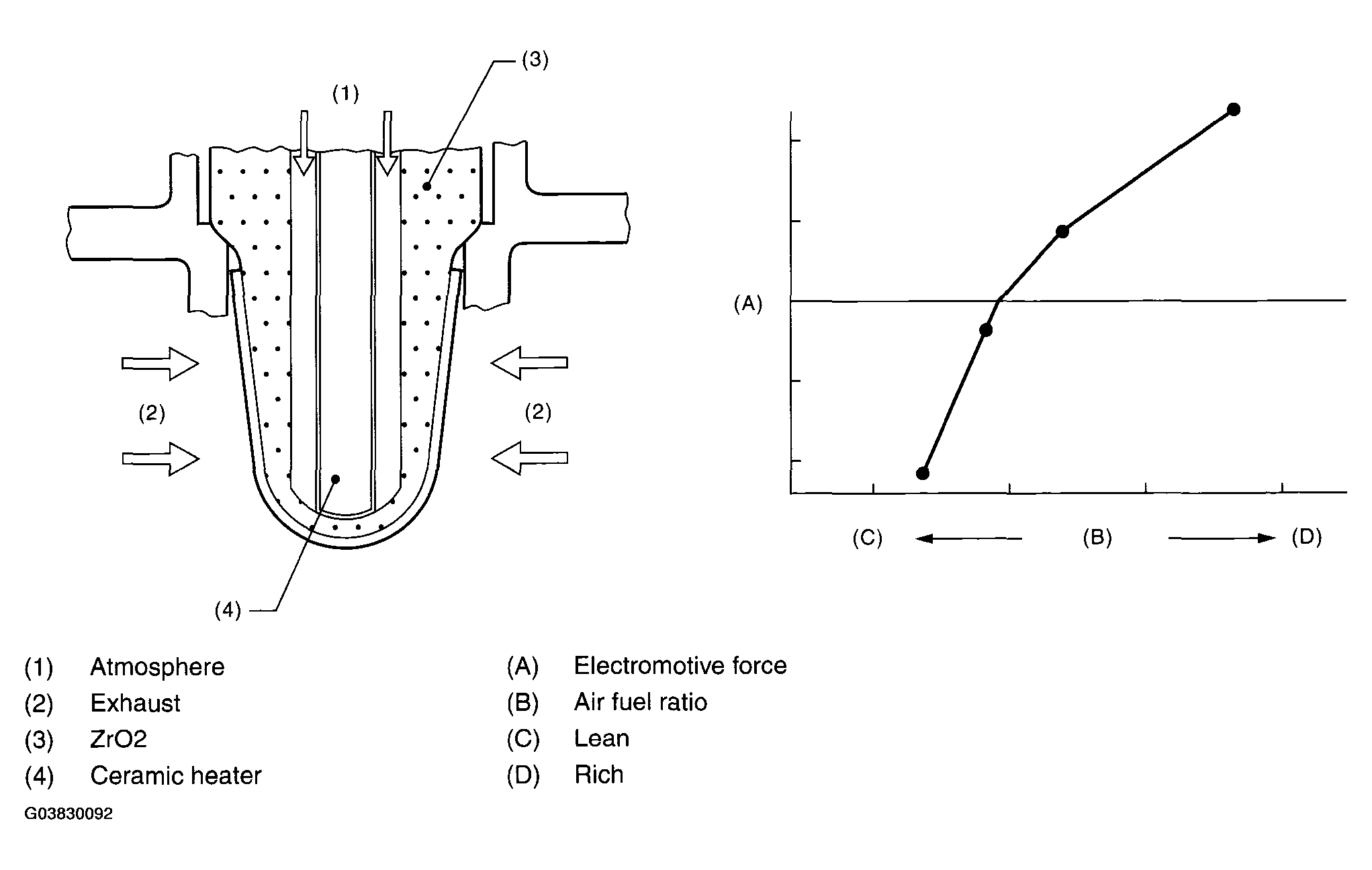

Fig 1: DTC P0133 O2 Sensor Circuit Slow - Oxygen (A/F) Sensor Component Description
G03830092Courtesy of SUBARU OF AMERICA, INC.
