Sensor

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Electrical Component Location (Sensor) (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

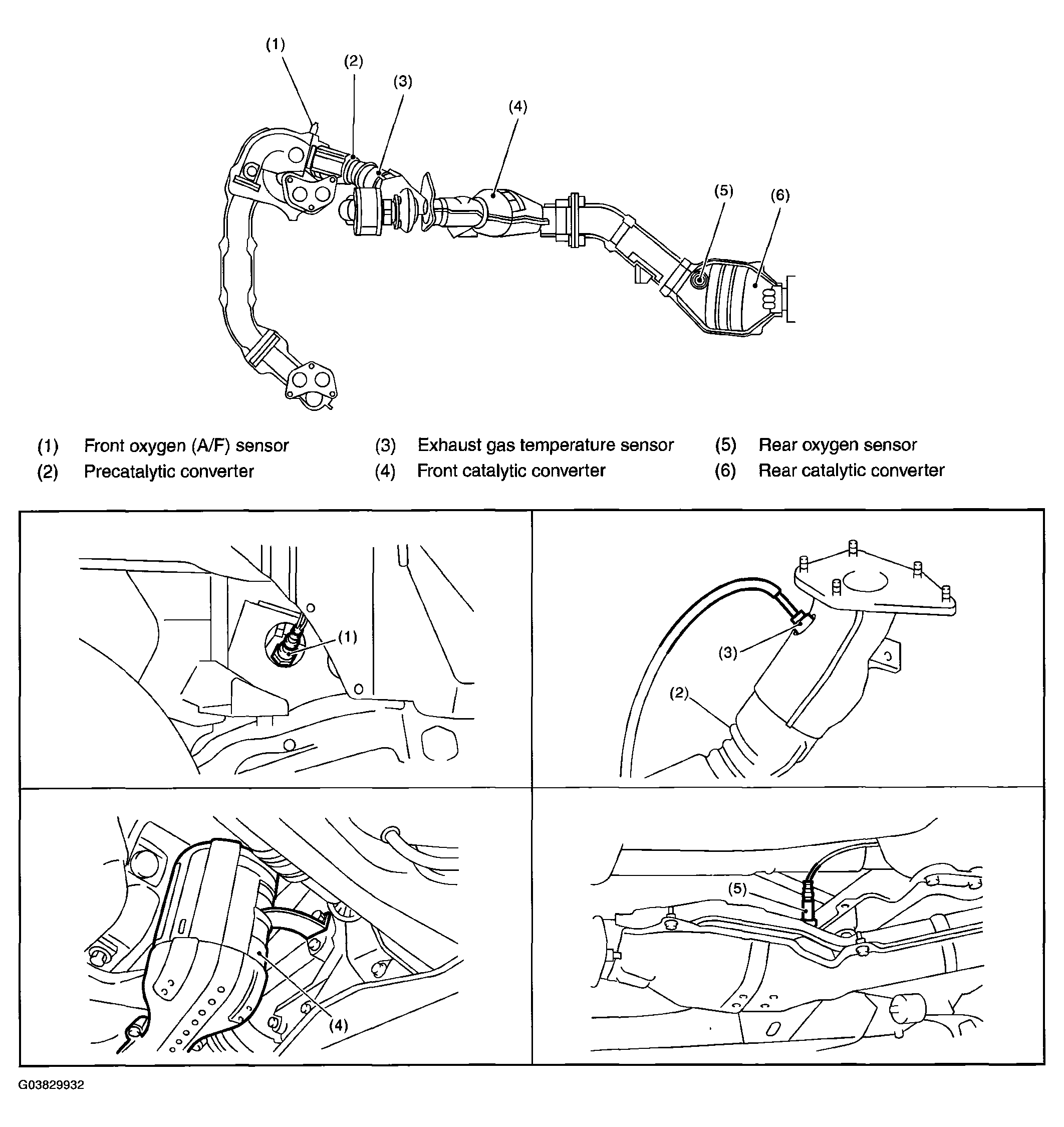

Fig 2: Identifying Electrical Component Location (Sensor) (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

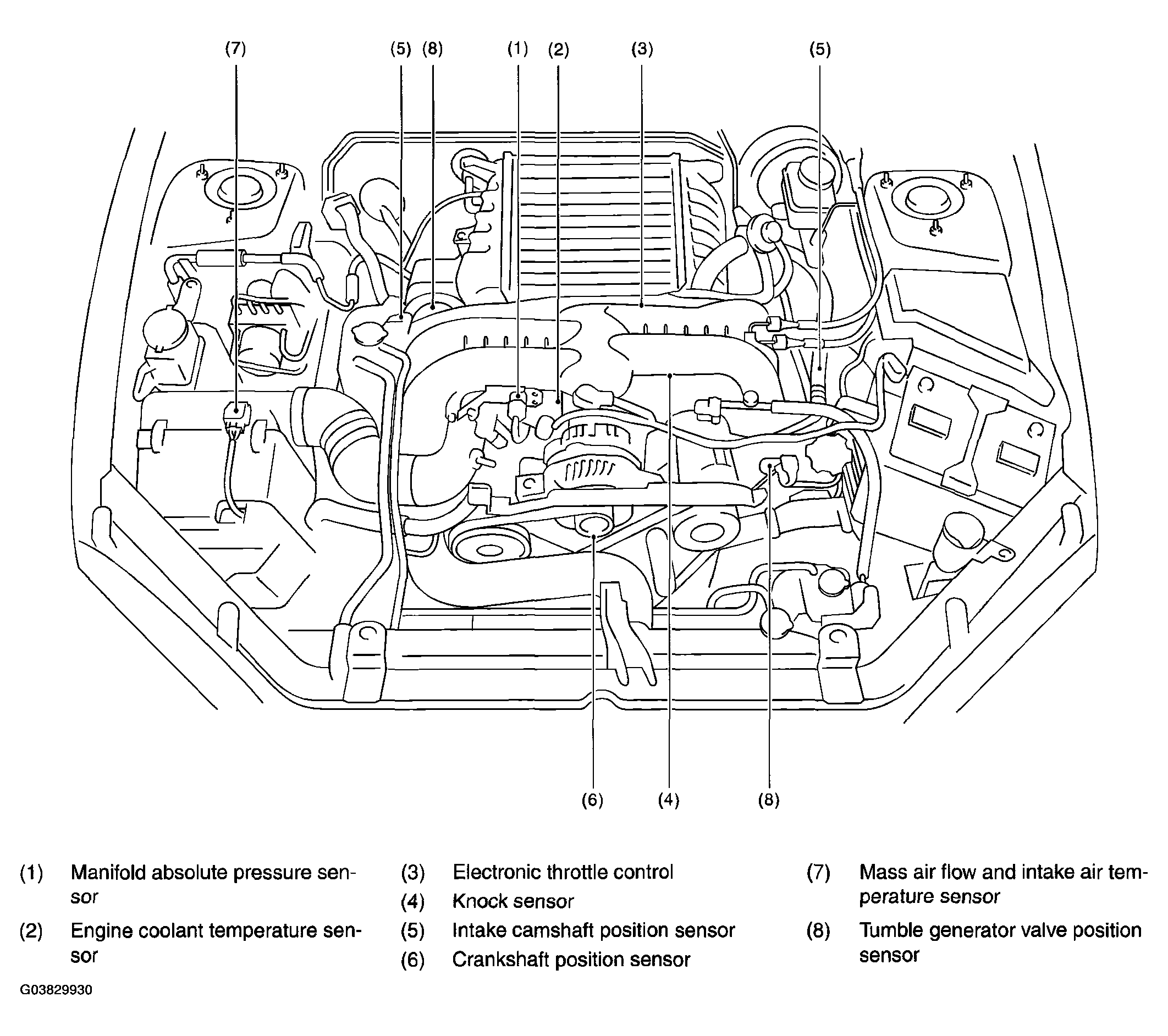

Fig 3: Identifying Electrical Component Location (Sensor) (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

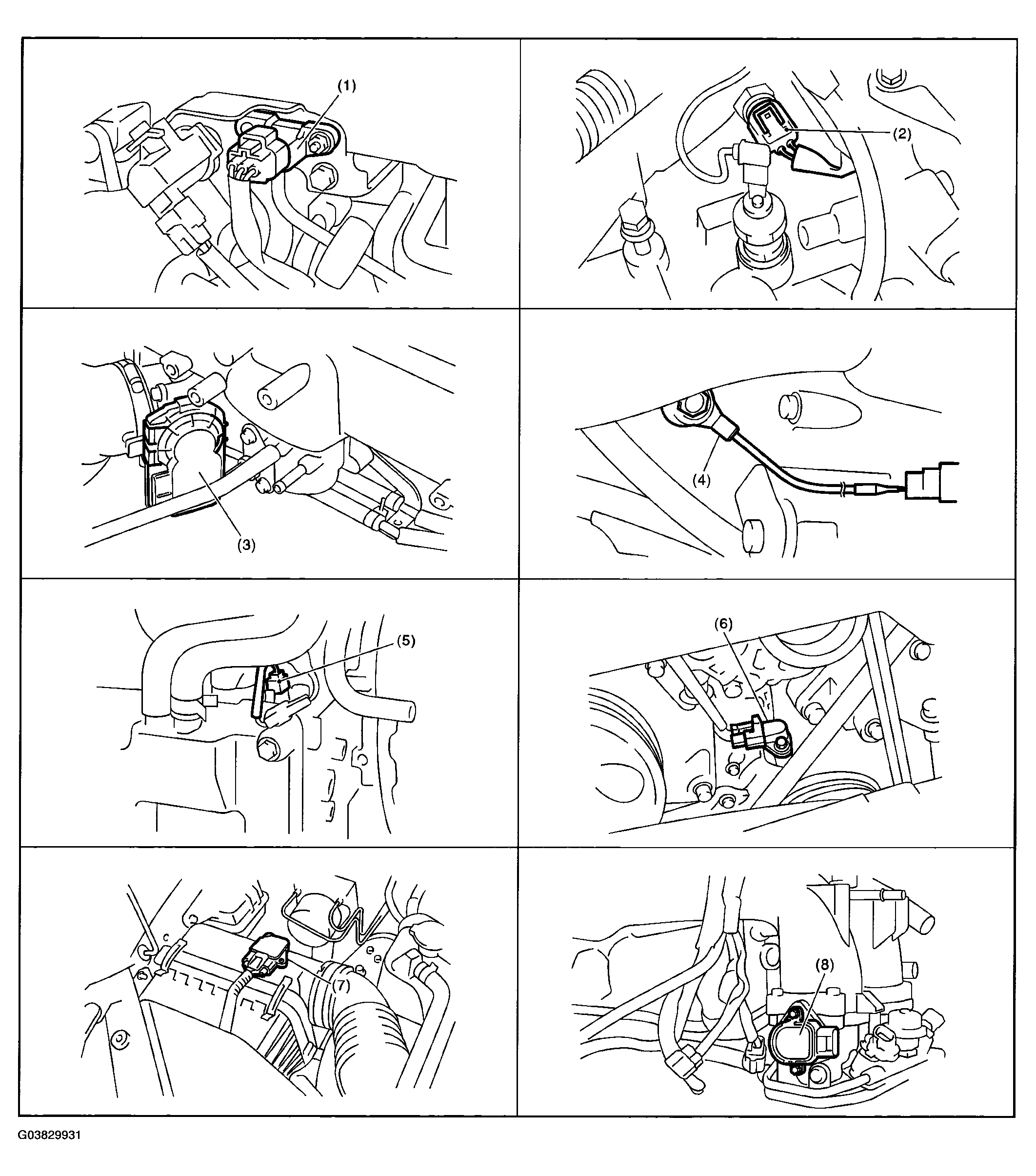

Fig 4: Identifying Electrical Component Location (Sensor) (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
