Diagnostics for Engine Starting Failure: Procedure

WARNING: This page is about a different variant/trim than selected.

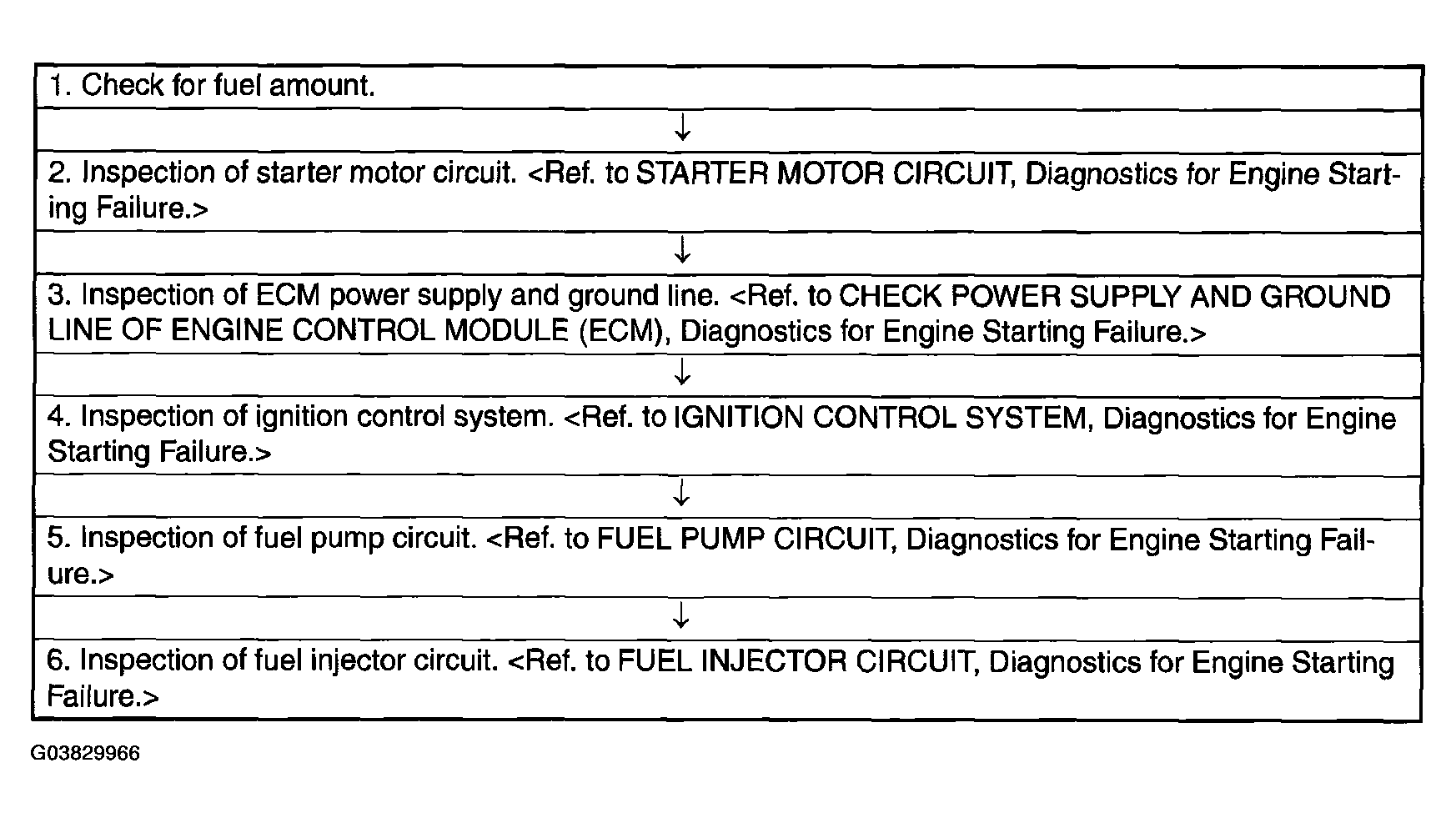

Fig 1: Flow Chart - Diagnostics For Engine Starting Failure
G03829966Courtesy of SUBARU OF AMERICA, INC.
