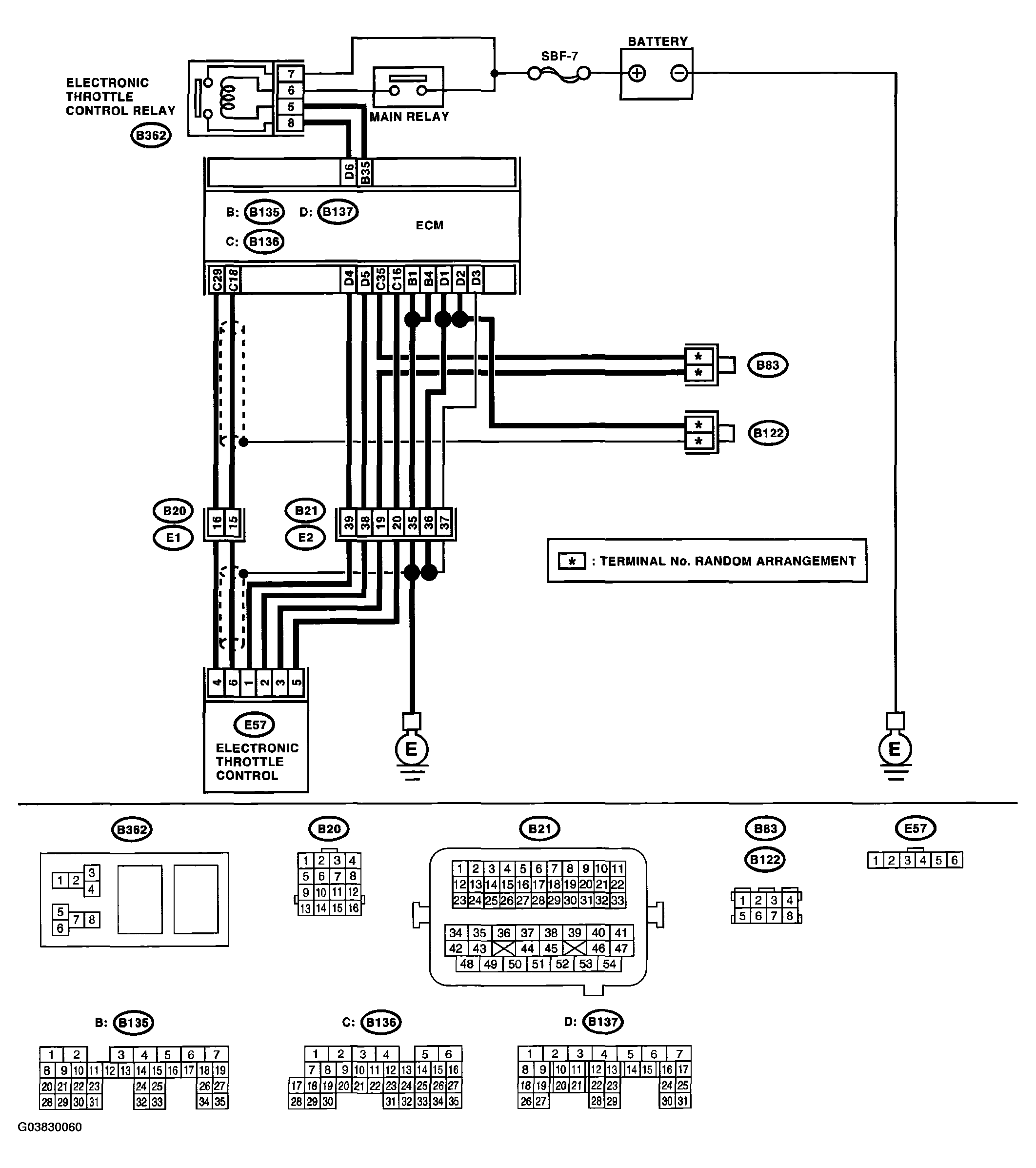

Fig 1: Wiring Diagram - DTC P2103 Throttle Actuator Control Motor Circuit High

G03830060

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE (DTC P2103)

Step		Check	Yes	No
1 CHECK ELECTRONIC THROTTLE CONTROL RELAY. Turn the ignition switch to OFF. Remove the electronic throttle control relay. Measure the resistance between electronic throttle control relay terminals. Terminals No. 7 - No. 8:		Is the resistance more than 1 M?	Go to step 2.	Replace the electronic throttle control relay.
2 CHECK POWER SUPPLY SHORT CIRCUIT OF ELECTRONIC THROTTLE CONTROL RELAY. Turn the ignition switch to ON. Measure the voltage between electronic throttle control relay connector and chassis ground. Connector & terminal (B362) No. 8 (+) - Chassis ground (-):		Is the voltage more than 5 V?	Go to step 3.	Repair power supply short circuit in harness between ECM and electronic throttle control relay.
3 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY. Turn the ignition switch to OFF. Disconnect the connector from ECM. Measure the resistance between ECM connector and chassis ground. Connector & terminal (B135) No. 35 - Chassis ground:		Is the resistance more than 1 M?	Repair the poor contact in ECM connector. Replace the ECM if defective. < Ref. to ENGINE CONTROL MODULE (ECM) . >	Repair the ground short circuit in harness between ECM and electronic throttle control relay.
