Wiring Diagram:

WARNING: This page is about a different variant/trim than selected.

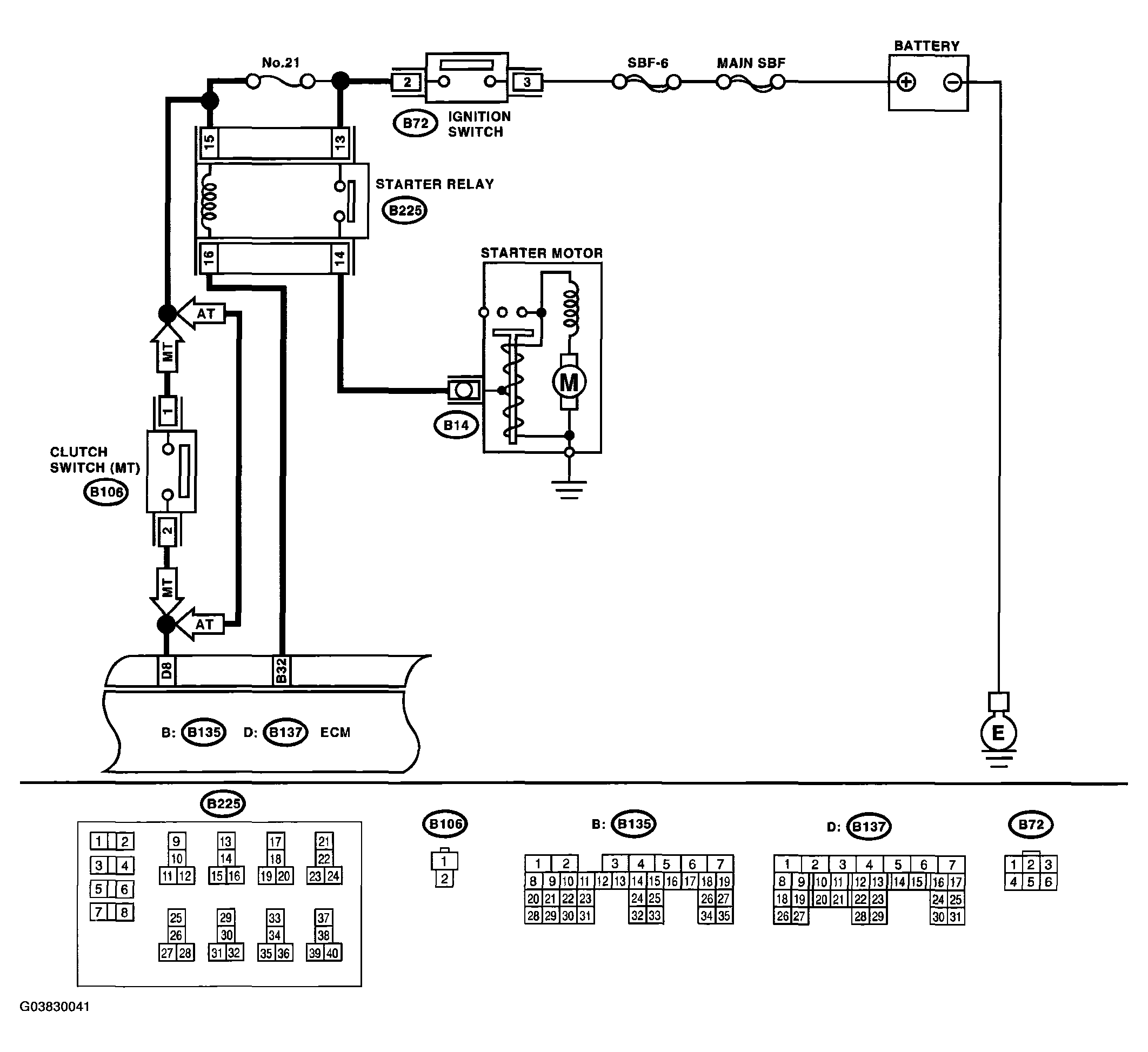

Fig 1: Wiring Diagram - DTC P1518 Starter Switch Circuit Low Input
G03830041Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE (DTC P1518)

Step Check Yes No
1
CHECK FOR ANY OTHER DTC ON DISPLAY. 		 Is any other DTC displayed? Inspect the DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > Go to step 2.
2
CHECK HARNESS BETWEEN STARTER RELAY AND ECM.
  1. Disconnect the connectors from starter relay and ECM.
  2. Measure the resistance of harness between ECM and chassis ground.

    Connector & terminal

    (B135) No. 32 - Chassis ground:

 Is the resistance more than 1 M? Repair the ground short circuit between starter motor and ECM. Repair the poor contact in ECM connector.
