Wiring Diagram:

WARNING: This page is about a different variant/trim than selected.

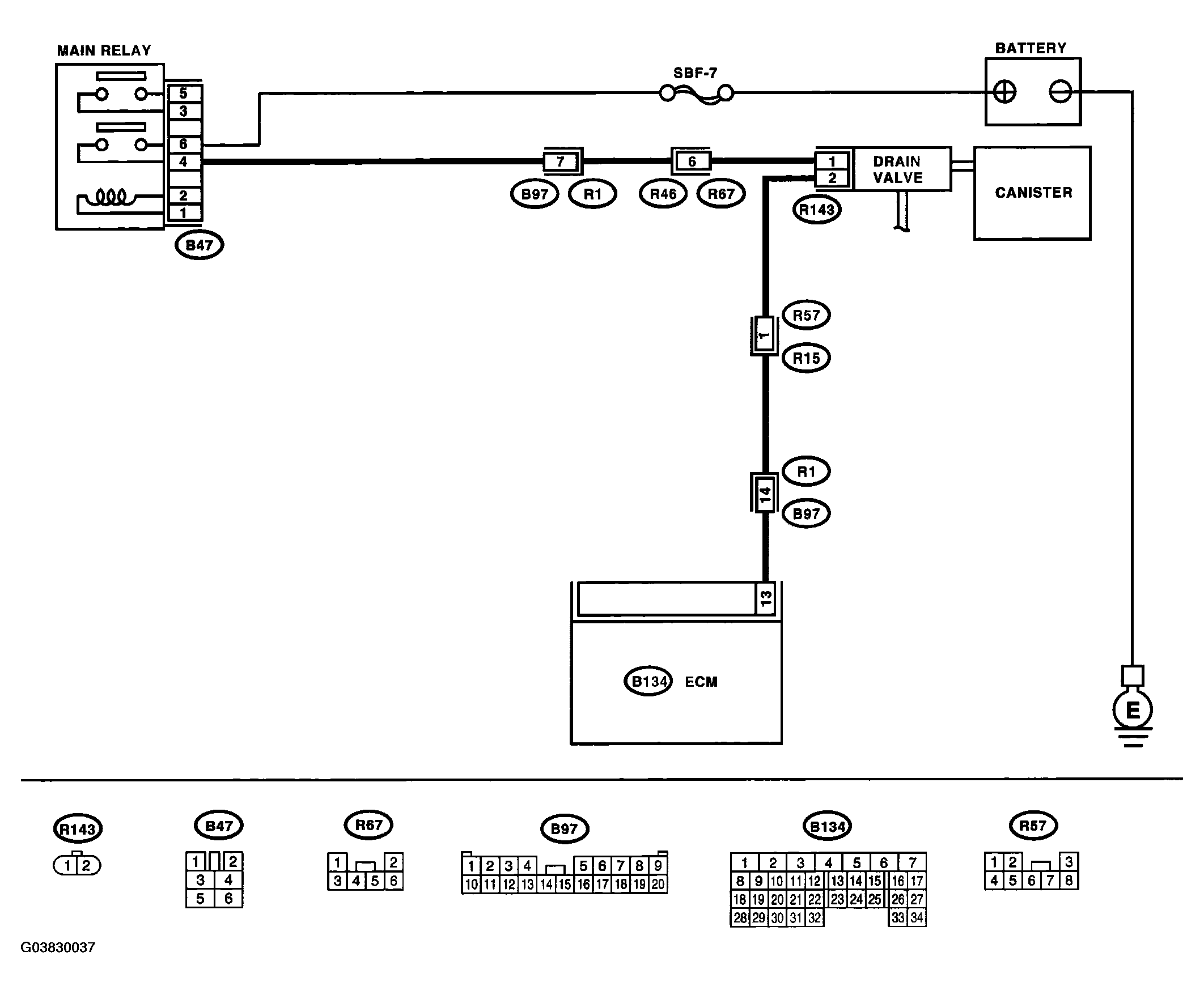

Fig 1: Wiring Diagram - DTC P1443 Vent Control Solenoid Valve Function Problem

G03830037

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE (DTC P1443)

Step		Check	Yes	No
1 CHECK FOR ANY OTHER DTC ON DISPLAY.		Is any other DTC displayed?	Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >	Go to step 2.
2 CHECK VENT LINE HOSES. Check the following items. Clogging of vent hoses between canister and drain valve Clogging of vent hose between drain valve and air filter Clogging of drain filter		Is there any fault in vent line?	Repair or replace faulty parts.	Go to step 3.
3 CHECK DRAIN VALVE OPERATION. Turn the ignition switch to OFF. Connect the test mode connector at the lower portion of instrument panel (on the driver's side). Turn the ignition switch to ON. Operate the drain valve. NOTE: Drain valve operation can also be executed using Subaru Select Monitor. For the procedure, refer to COMPULSORY VALVE OPERATION CHECK MODE .		Does the drain valve operate?	Contact with SOA Service Center.	Replace the drain valve. < Ref. to DRAIN VALVE . >
