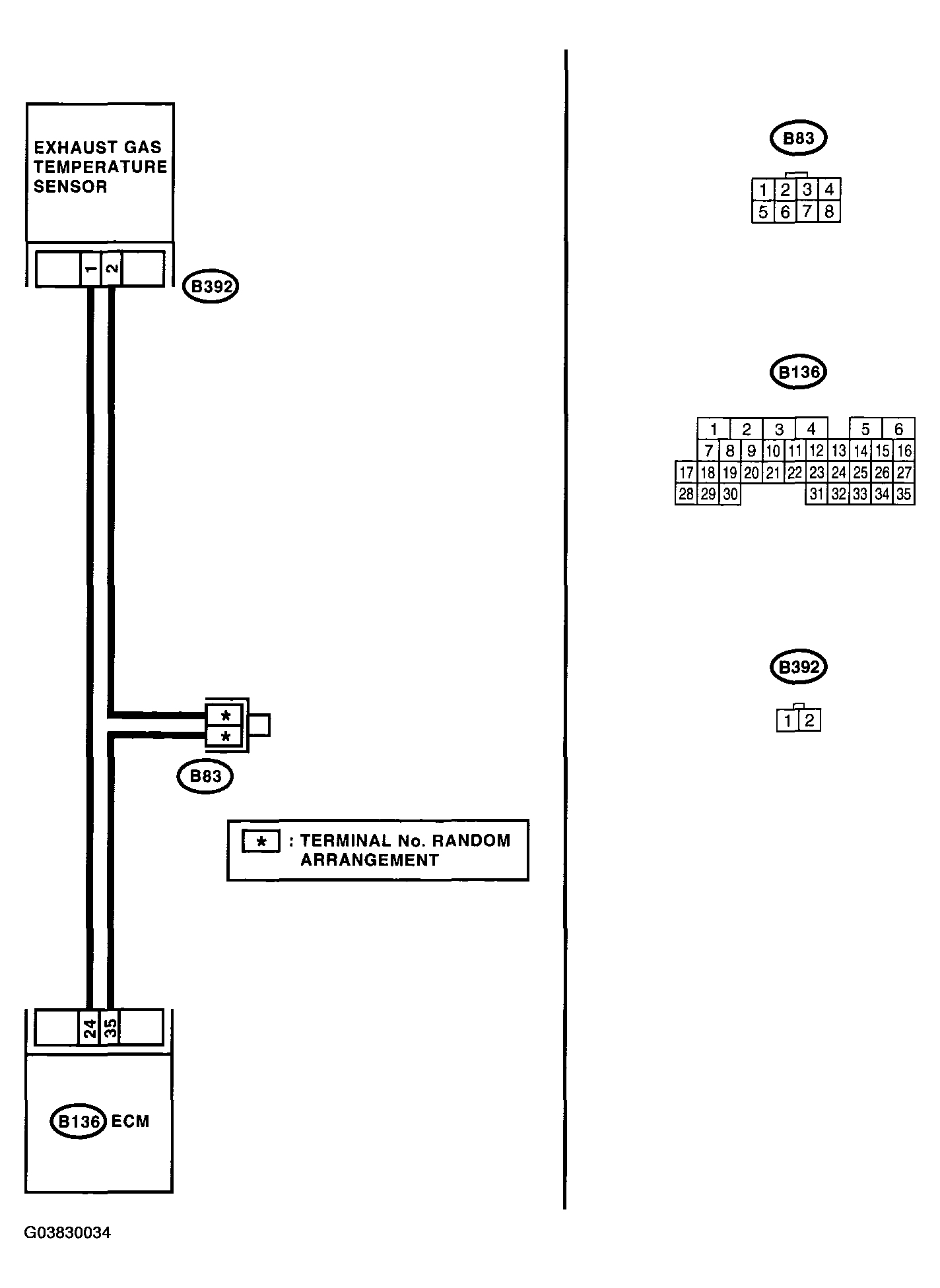

Wiring Diagram:
WARNING: This page is about a different variant/trim than selected.
DIAGNOSTIC PROCEDURE (DTC P1312)
| Step | Check | Yes | No | |
|---|---|---|---|---|
| 1 CHECK FOR ANY OTHER DTC ON DISPLAY. |
Is any other DTC displayed? | Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to
, LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
NOTE:
In this case, it is not necessary to inspect DTC P1312.
|
Replace the exhaust gas temperature sensor. < Ref. to EXHAUST TEMPERATURE SENSOR . > |
|
