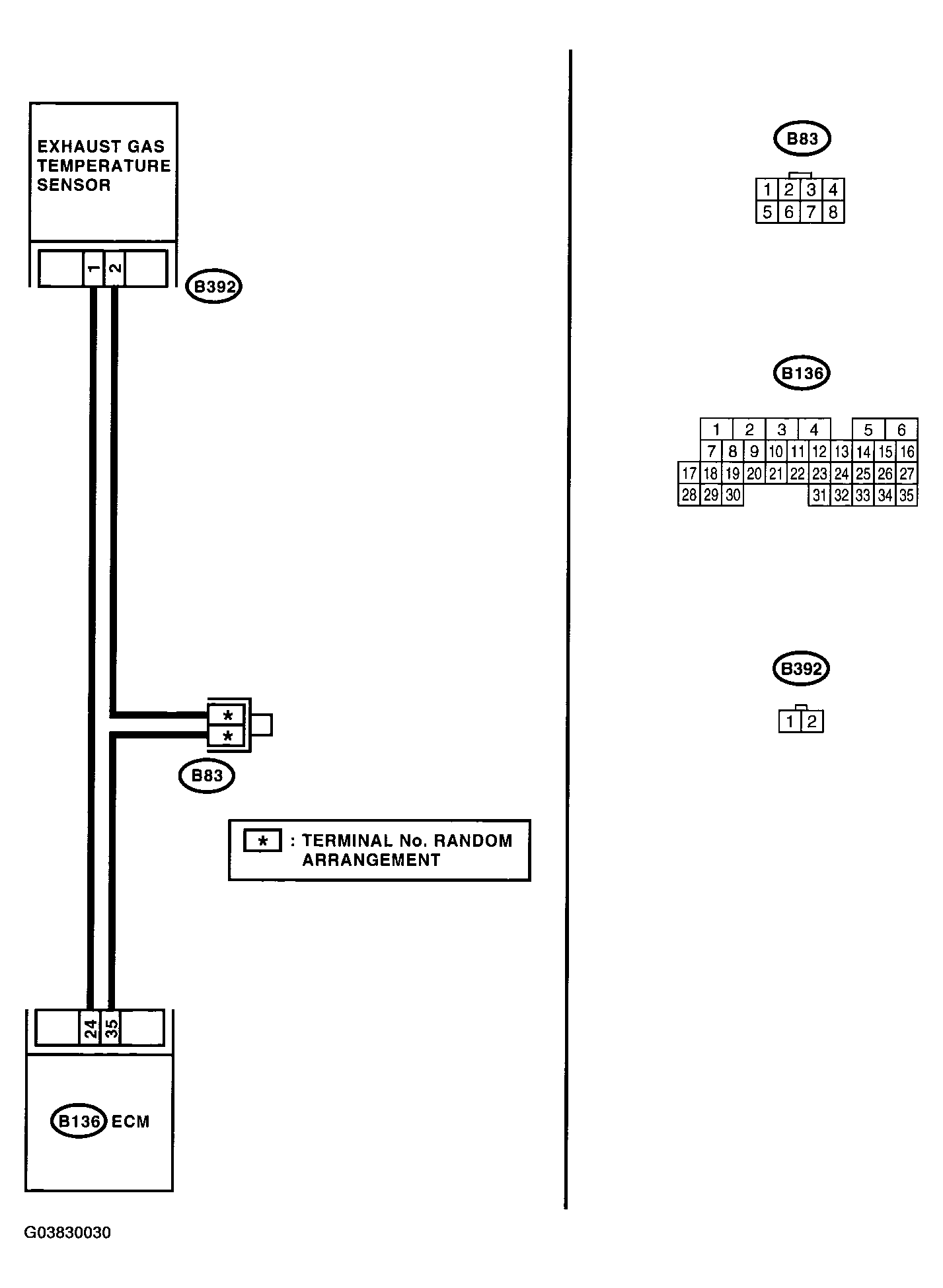

Wiring Diagram:
WARNING: This page is about a different variant/trim than selected.
DIAGNOSTIC PROCEDURE (DTC P0546)
| Step | Check | Yes | No | |
|---|---|---|---|---|
| 1 CHECK CURRENT DATA.
NOTE:
|
Is the temperature less than 372°C (702°F)? | Go to step 2. | Repair the poor contact.
NOTE:
In this case, repair the following:
|
|
| 2 CHECK HARNESS BETWEEN EXHAUST GAS TEMPERATURE SENSOR AND ECM CONNECTOR.
|
Is the voltage more than 10 V? | Repair the battery short circuit in harness between ECM and exhaust gas temperature sensor connector. | Go to step 3. | |
| 3 CHECK HARNESS BETWEEN EXHAUST GAS TEMPERATURE SENSOR AND ECM CONNECTOR.
|
Is the voltage more than 10 V? | Repair the battery short circuit in harness between ECM and exhaust gas temperature sensor connector. | Go to step 4. | |
| 4 CHECK HARNESS BETWEEN EXHAUST GAS TEMPERATURE SENSOR AND ECM CONNECTOR. Measure the voltage between exhaust gas temperature sensor connector and engine ground. Connector & terminal (B392) No. 1 (+) - Engine ground (-): |
Is the voltage more than 4 V? | Go to step 5. | Repair the harness and connector.
NOTE:
In this case, repair the following:
|
|
| 5 CHECK HARNESS BETWEEN EXHAUST GAS TEMPERATURE SENSOR AND ECM CONNECTOR.
|
Is the resistance less than 5 ? | Replace the exhaust gas temperature sensor. < Ref. to EXHAUST TEMPERATURE SENSOR . > |
Repair the harness and connector.
NOTE:
In this case, repair the following:
|
|
