Wiring Diagram:

WARNING: This page is about a different variant/trim than selected.

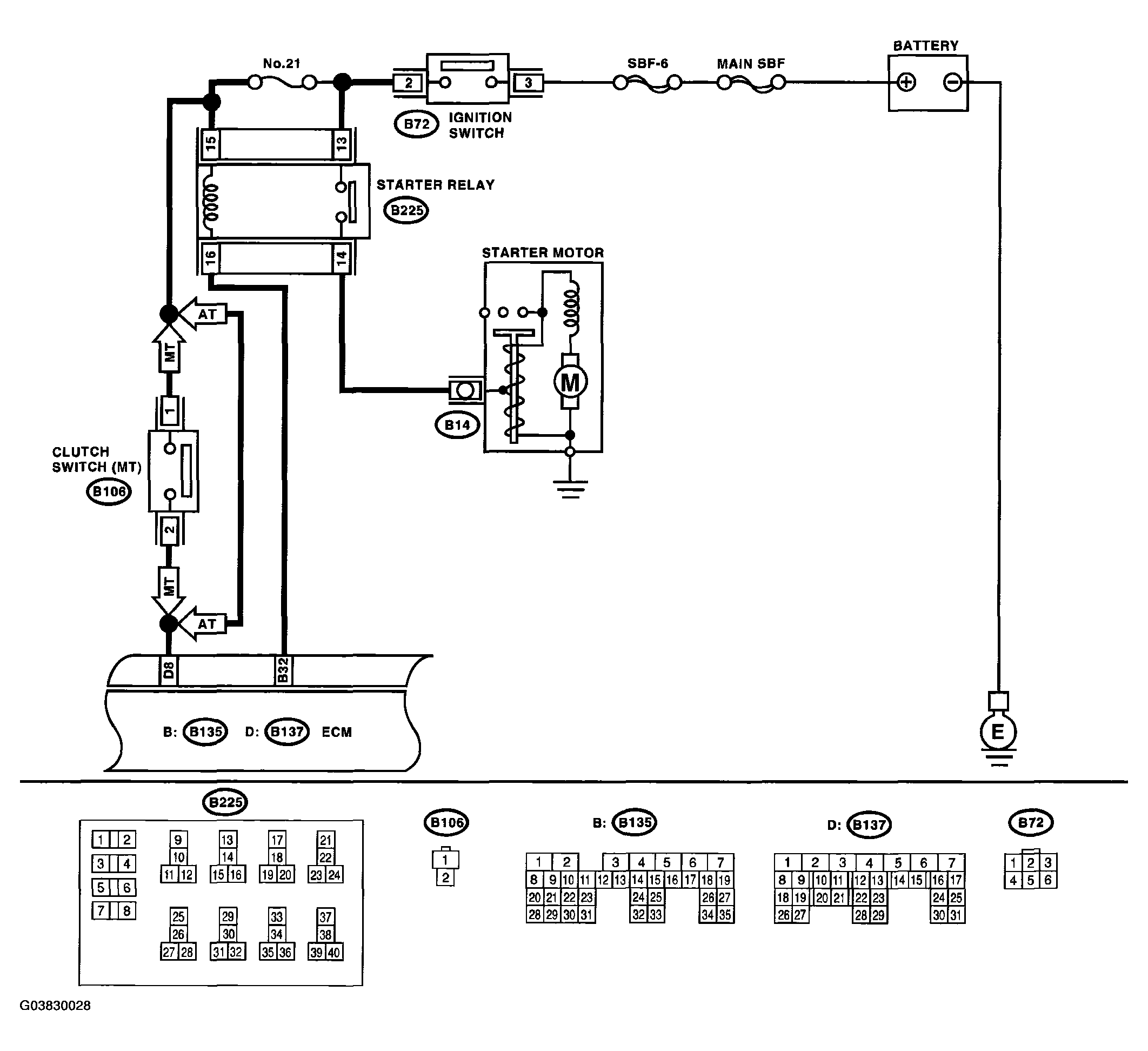

Fig 1: Wiring Diagram - DTC P0512 Starter Request Circuit
G03830028Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE (DTC P0512)

Step Check Yes No
1
CHECK HARNESS BETWEEN IGNITION SWITCH AND ECM.
  1. Disconnect the connectors from ECM.
  2. Measure the voltage between ECM and chassis ground.

    Connector & terminal

    (B137) No. 32 (+) - Chassis ground (-):

 Is the voltage more than 10 V? Repair the battery short circuit in harness between ignition switch and ECM. Repair the poor contact in ECM.
