Wiring Diagram:

WARNING: This page is about a different variant/trim than selected.

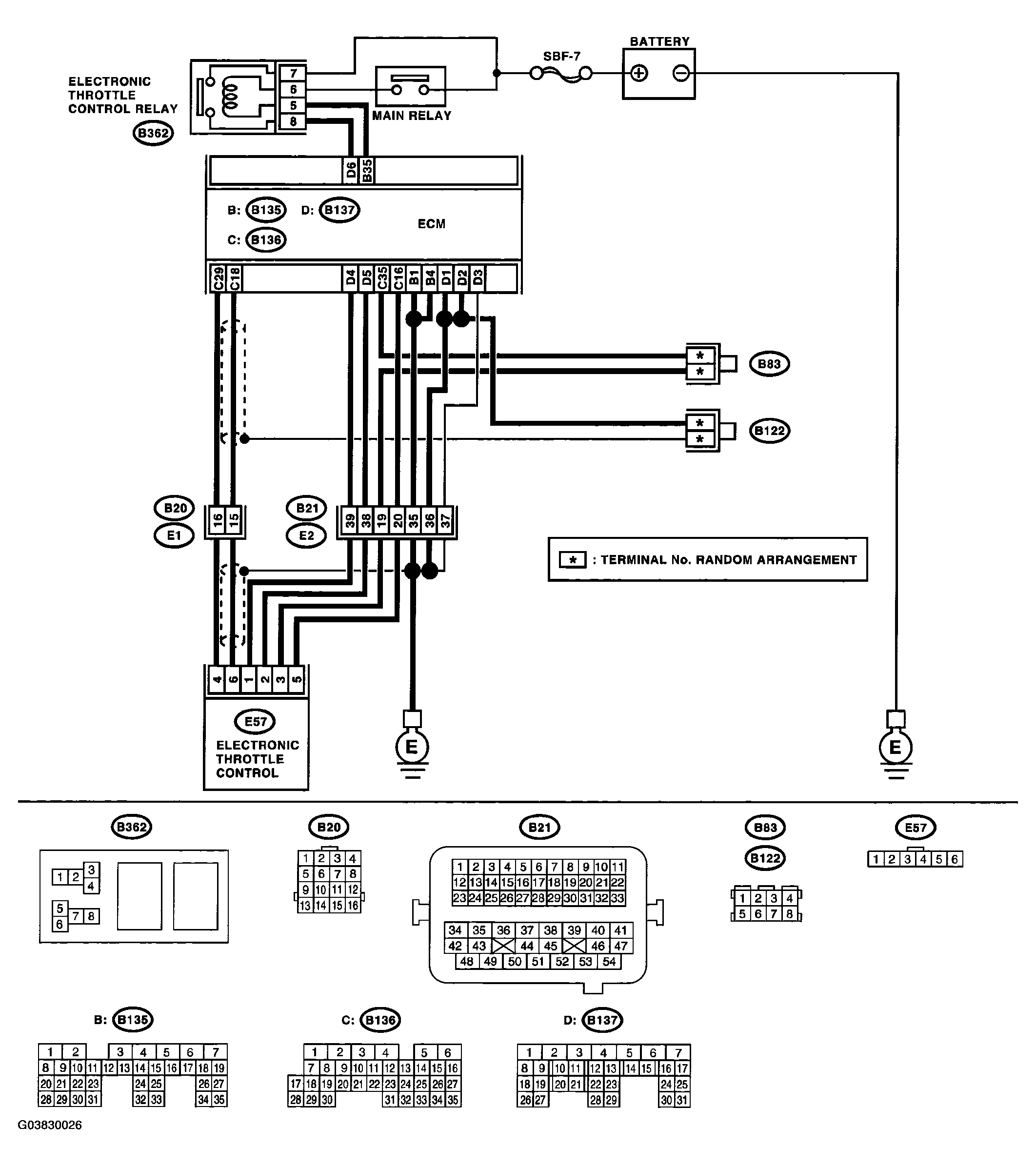

Fig 1: Wiring Diagram - DTC P0506 Idle Control System RPM Lower Than Expected

G03830026

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE (DTC P0506)

Step		Check	Yes	No
1 CHECK FOR ANY OTHER DTC ON DISPLAY.		Is any other DTC displayed?	Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > NOTE: In this case, it is not necessary to inspect DTC P0506.	Go to step 2.
2 CHECK THE AIR CLEANER ELEMENT. Turn the ignition switch to OFF. Check the air cleaner element.		Is there excessive clogging on air cleaner element.	Replace the air cleaner element. < Ref. to AIR CLEANER CASE . >	Go to step 3.
3 CHECK ELECTRONIC THROTTLE CONTROL. Turn the ignition switch to OFF. Remove the electronic throttle control. Check the electronic throttle control.		Are there foreign particles in electronic throttle control?	Remove the foreign particles from electronic throttle control.	Perform the diagnosis of DTC P2101.
