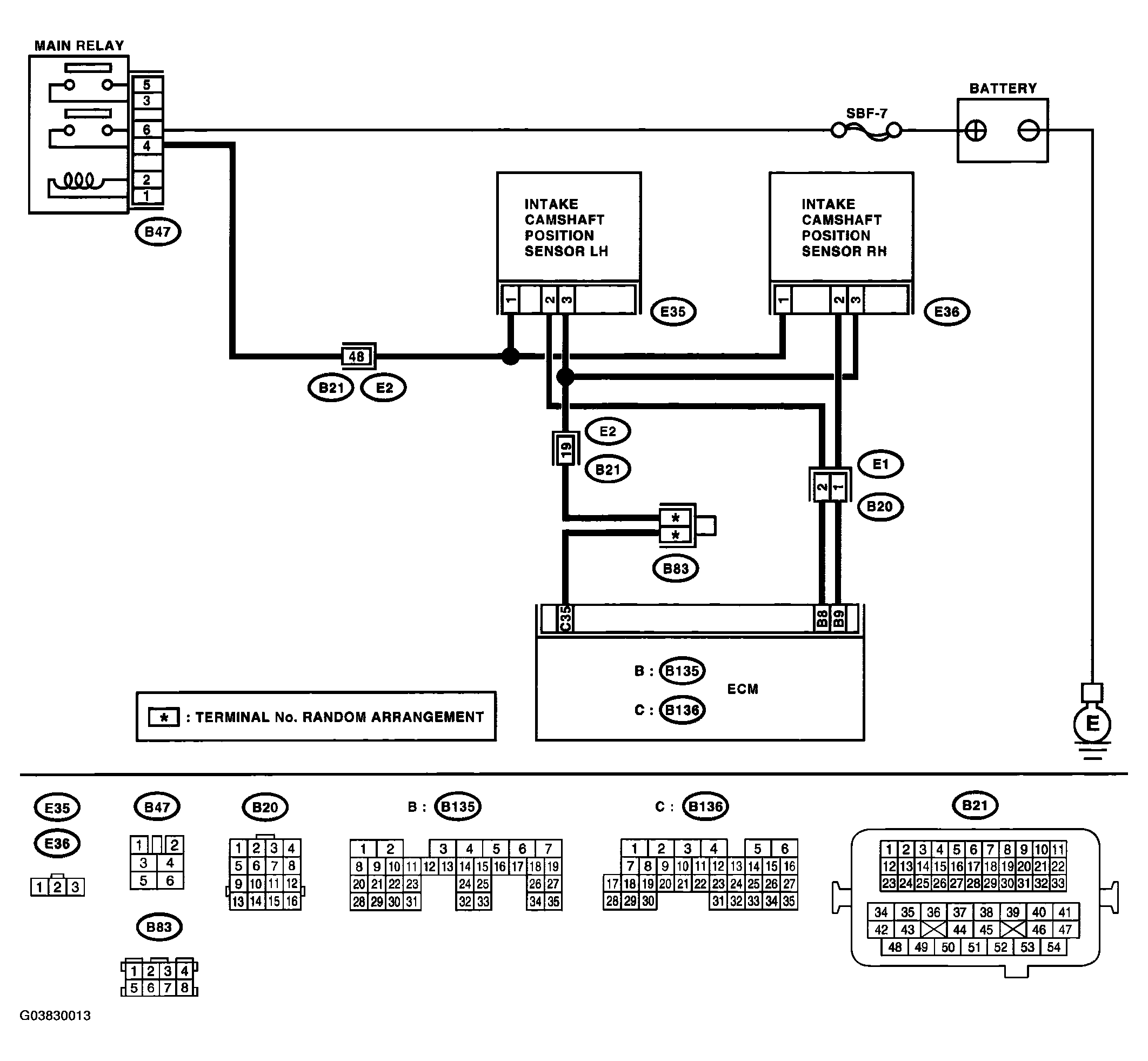

Wiring Diagram:
WARNING: This page is about a different variant/trim than selected.
DIAGNOSTIC PROCEDURE (DTC P0340)
| Step | Check | Yes | No | |
|---|---|---|---|---|
| 1 CHECK FOR ANY OTHER DTC ON DISPLAY. |
Is any other DTC displayed? | Inspect the DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > | Go to step 2. | |
| 2 CHECK POWER SUPPLY OF CAMSHAFT POSITION SENSOR.
|
Is the voltage more than 10 V? | Repair the battery short circuit between main relay connector and camshaft position sensor connector. | Go to step 3. | |
| 3 CHECK POWER SUPPLY OF CAMSHAFT POSITION SENSOR.
|
Is the voltage more than 10 V? | Go to step 4. | Repair the open or ground short circuit between main relay connector and camshaft position sensor connector. | |
| 4 CHECK HARNESS BETWEEN CAMSHAFT POSITION SENSOR CONNECTOR AND ECM.
|
Is the resistance less than 1 ? | Go to step 5. | Repair the open circuit between camshaft position sensor and ECM. | |
| 5 CHECK HARNESS BETWEEN CAMSHAFT POSITION SENSOR CONNECTOR AND ECM. Measure the resistance between camshaft position sensor connector and engine ground. Connector & terminal (E36) No. 2 - Engine ground: |
Is the resistance more than 1 M? | Go to step 6. | Repair the ground short circuit between camshaft position sensor and ECM. | |
| 6 CHECK CONDITION OF CAMSHAFT POSITION SENSOR. |
Is the camshaft position sensor installation bolt tightened securely? | Go to step 7. | Tighten the camshaft position sensor installation bolt securely. | |
| 7 CHECK CAMSHAFT POSITION SENSOR. Check waveform of camshaft position sensor. < Ref. to , ENGINE CONTROL MODULE (ECM) I/O SIGNALS |
Is there any abnormality in waveform? | Replace the camshaft position sensor. < Ref. to CAMSHAFT POSITION SENSOR . > | Go to step 8. | |
| 8 CHECK POOR CONTACT. Check poor contact in ECM connector. |
Is there poor contact in ECM connector? | Repair the poor contact in ECM connector. | Replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . > | |
