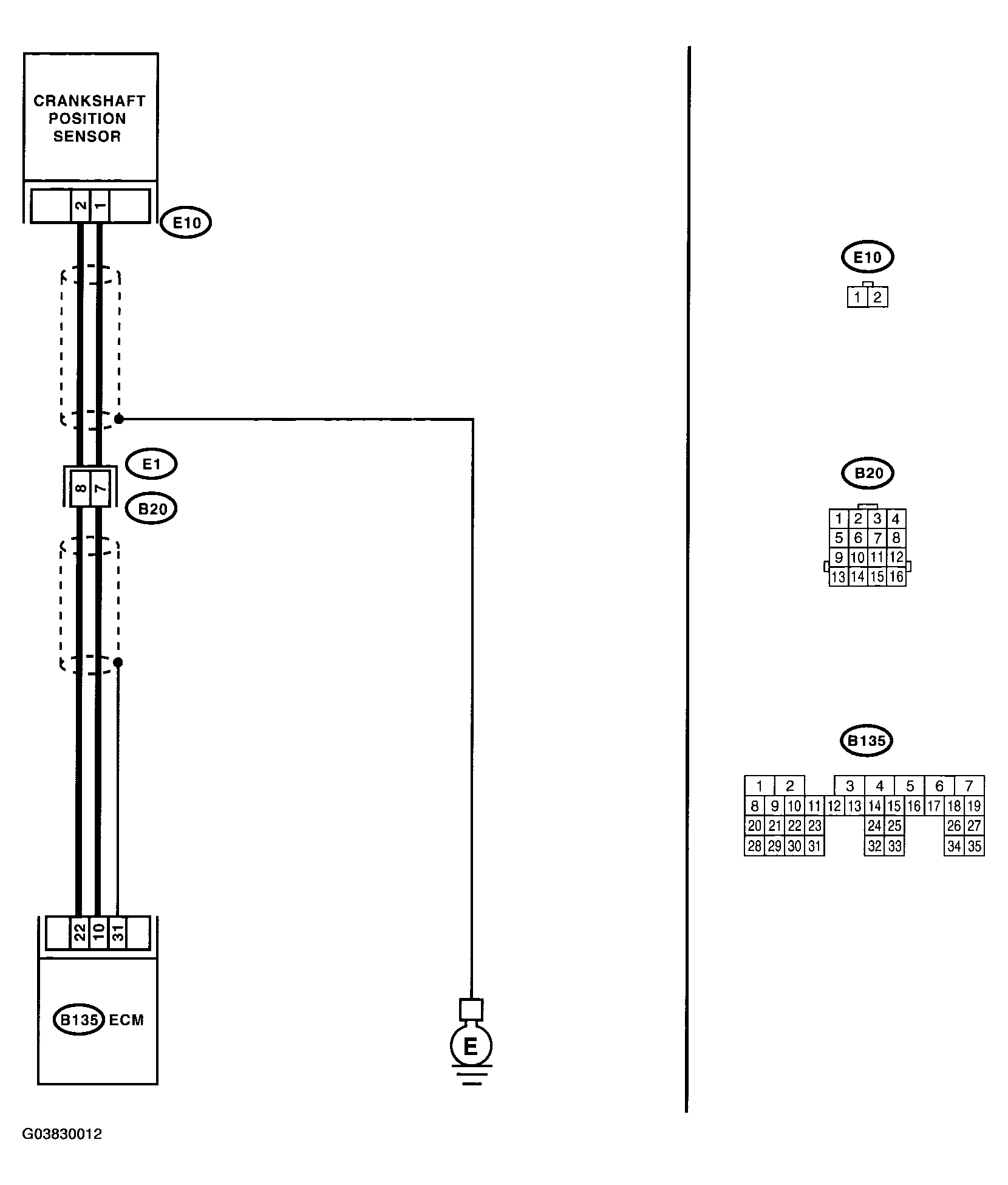

Wiring Diagram:
WARNING: This page is about a different variant/trim than selected.
DIAGNOSTIC PROCEDURE (DTC P0336)
| Step | Check | Yes | No | |
|---|---|---|---|---|
| 1 CHECK FOR ANY OTHER DTC ON DISPLAY. |
Is any other DTC displayed? | Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > | Go to step 2. | |
| 2 CHECK CONDITION OF CRANKSHAFT POSITION SENSOR. Turn the ignition switch to OFF. |
Is the crankshaft position sensor installation bolt tightened securely? | Go to step 3. | Tighten the crankshaft position sensor installation bolt securely. | |
| 3 CHECK CRANK SPROCKET. Remove the front belt cover. |
Are the crank sprocket teeth cracked or damaged? | Replace the crank sprocket. < Ref. to CRANK SPROCKET . > | Go to step 4. | |
| 4 CHECK INSTALLATION CONDITION OF TIMING BELT. Turn the crankshaft, and align alignment mark on crank sprocket with alignment mark on cylinder block. |
Is the timing belt dislocated from its proper position? | Repair the installation condition of timing belt. < Ref. to TIMING BELT . > | Replace the crankshaft position sensor. < Ref. to CRANKSHAFT POSITION SENSOR . > | |
