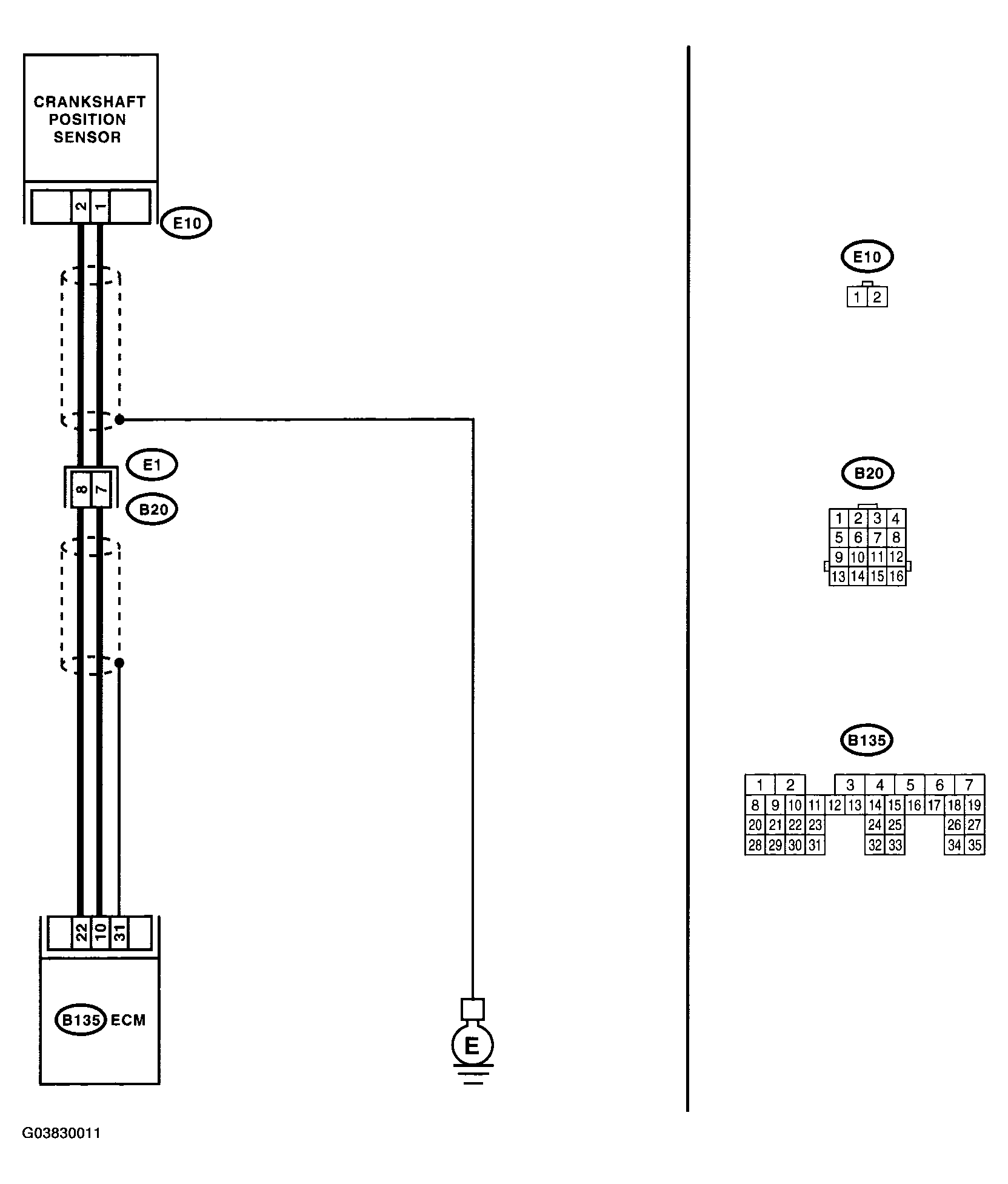

Wiring Diagram:
WARNING: This page is about a different variant/trim than selected.
DIAGNOSTIC PROCEDURE (DTC P0335)
| Step | Check | Yes | No | |
|---|---|---|---|---|
| 1 CHECK FOR ANY OTHER DTC ON DISPLAY. |
Is any other DTC displayed? | Inspect the DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > |
Go to step 2. | |
| 2 CHECK HARNESS BETWEEN CRANKSHAFT POSITION SENSOR AND ECM CONNECTOR.
|
Is the resistance more than 100 K? | Repair the harness and connector.
NOTE:
In this case, repair the following:
|
Go to step 3. | |
| 3 CHECK HARNESS BETWEEN CRANKSHAFT POSITION SENSOR AND ECM CONNECTOR. Measure the resistance of harness between crankshaft position sensor connector and engine ground. Connector & terminal (E10) No. 1 - Engine ground: (E10) No. 2 - Engine ground: |
Is the resistance more than 1 M? | Go to step 4. | Repair the ground short circuit in harness between crankshaft position sensor and ECM connector.
NOTE:
The harness between both connectors are shielded. Repair the ground short circuit in harness together with shield.
|
|
| 4 CHECK CONDITION OF CRANKSHAFT POSITION SENSOR. |
Is the crankshaft position sensor installation bolt tightened securely? | Go to step 5. | Tighten the crankshaft position sensor installation bolt securely. | |
| 5 CHECK CRANKSHAFT POSITION SENSOR.
|
Is the resistance 1 - 4 K? | Repair the poor contact in crankshaft position sensor connector. | Replace the crankshaft position sensor. < Ref. to CRANKSHAFT POSITION SENSOR . > | |
