Wiring Diagram:

WARNING: This page is about a different variant/trim than selected.

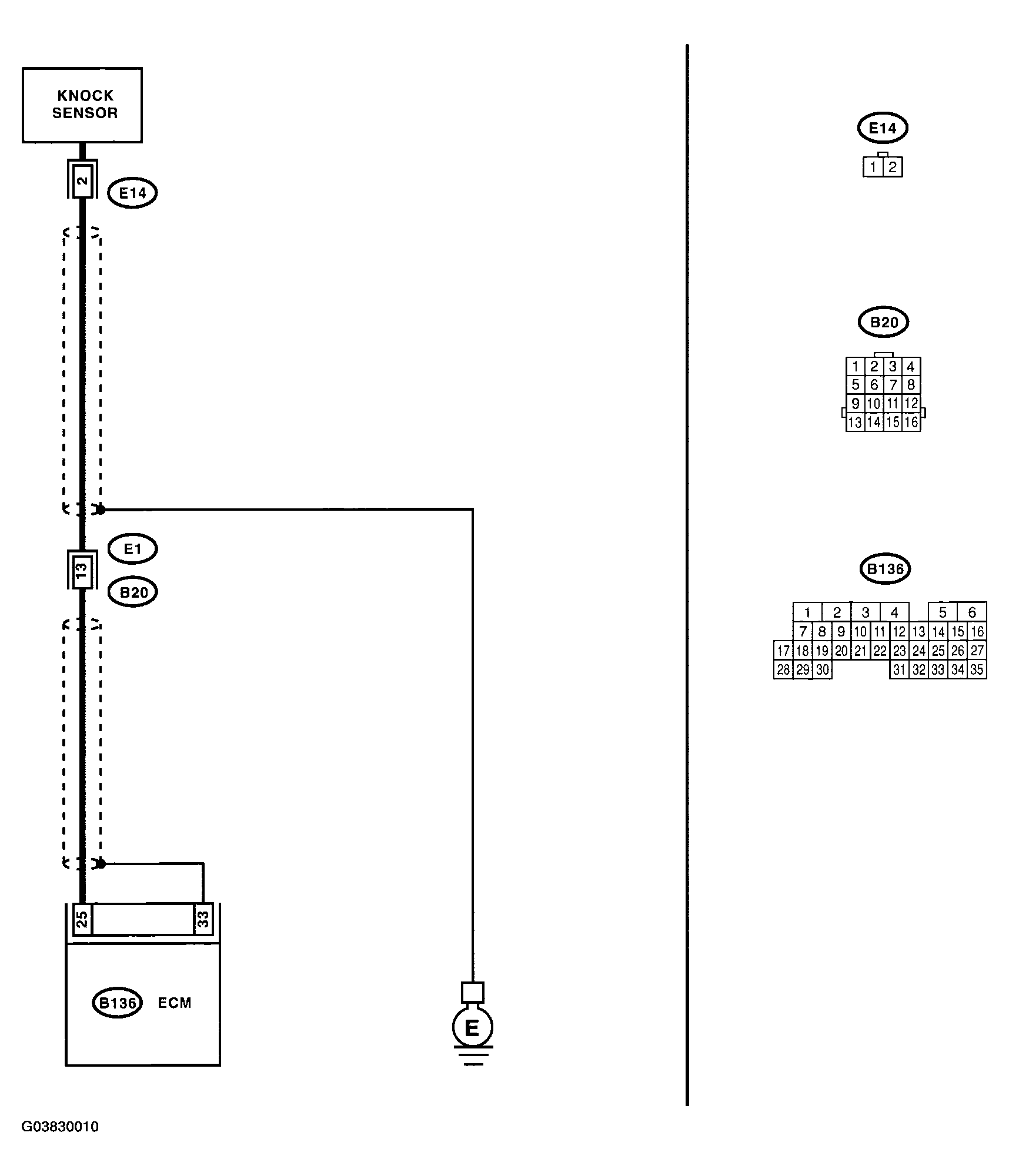

Fig 1: Wiring Diagram - DTC P0328 Knock Sensor 1 Circuit High Input (Bank 1 Or Single Sensor)

G03830010

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE (DTC P0328)

Step		Check	Yes	No
1 CHECK HARNESS BETWEEN KNOCK SENSOR AND ECM CONNECTOR. Measure the resistance of harness between ECM connector and chassis ground. Connector & terminal (B136) No. 25 - Chassis ground:		Is the resistance less than 400 K?	Go to step 2.	Go to step 3.
2 CHECK KNOCK SENSOR. Disconnect the connector from knock sensor. Measure the resistance between knock sensor connector terminal and engine ground. Terminals No. 2 - Engine ground:		Is the resistance less than 400 K?	Replace the knock sensor. < Ref. to KNOCK SENSOR . >	Repair the ground short circuit in harness between knock sensor connector and ECM connector. NOTE: The harness between both connectors are shielded. Repair the short circuit in harness covered with shield.
3 CHECK INPUT SIGNAL FROM ECM. Connect the connectors to ECM and knock sensor. Turn the ignition switch to ON. Measure the voltage between ECM and chassis ground. Connector & terminal (B136) No. 25 (+) - Chassis ground (-):		Is the voltage more than 2 V?	Even if the malfunction indicator light illuminates, the circuit has returned to a normal condition at this time. (However, the possibility of poor contact still remains.) NOTE: In this case, repair the following: Poor contact in knock sensor connector Poor contact in ECM connector Poor contact in coupling connector	Repair the poor contact in ECM connector.
