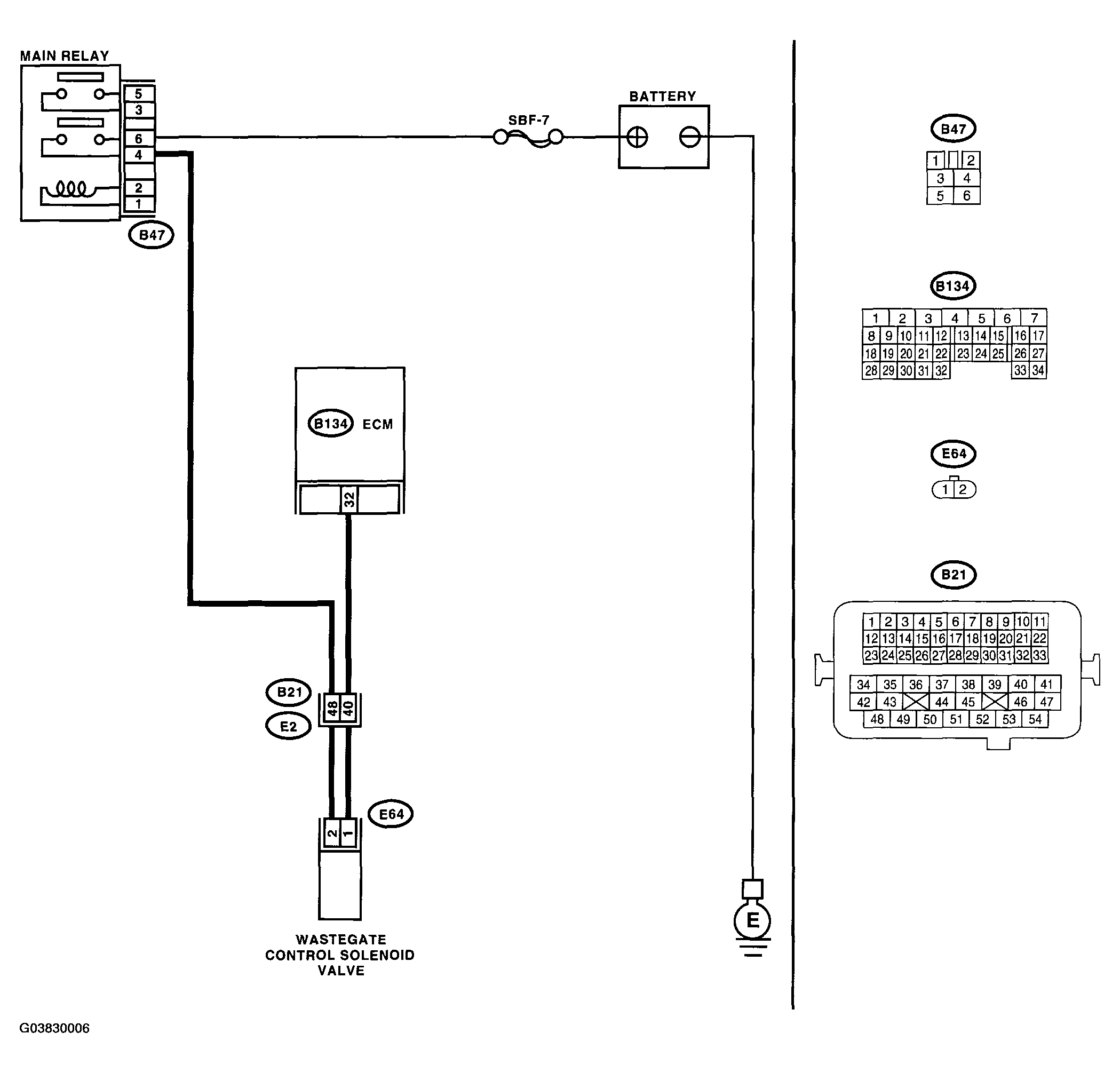

Wiring Diagram:
WARNING: This page is about a different variant/trim than selected.
DIAGNOSTIC PROCEDURE (DTC P0245)
| Step | Check | Yes | No | |
|---|---|---|---|---|
| 1 CHECK OUTPUT SIGNAL FROM ECM.
|
Is the voltage more than 10 V? | Even if the malfunction indicator light illuminates, the circuit has returned to a normal condition at this time. | Go to step 2. | |
| 2 CHECK HARNESS BETWEEN WASTEGATE CONTROL SOLENOID VALVE AND ECM CONNECTOR.
|
Is the resistance more than 1 M? | Go to step 3. | Repair the ground short circuit in harness between ECM and waste-gate control solenoid valve connector. | |
| 3 CHECK HARNESS BETWEEN WASTEGATE CONTROL SOLENOID VALVE AND ECM CONNECTOR. Measure the resistance of harness between wastegate control solenoid valve of harness connector and ECM. Connector & terminal (B134) No. 32 - (E64) No. 1: |
Is the resistance less than 1 ? | Go to step 4. | Repair the open circuit in harness between ECM and wastegate control solenoid valve connector.
NOTE:
In this case, repair the following:
|
|
| 4 CHECK WASTEGATE CONTROL SOLENOID VALVE.
|
Is the resistance 30 - 34 ? | Go to step 5. | Replace the wastegate control solenoid valve. < Ref. to WASTEGATE CONTROL SOLENOID VALVE . > | |
| 5 CHECK POWER SUPPLY TO WASTEGATE CONTROL SOLENOID VALVE.
|
Is the voltage more than 10 V? | Go to step 6. | Repair the open circuit in harness between main relay and wastegate control solenoid valve connector. | |
| 6 CHECK POOR CONTACT. Check poor contact in wastegate control solenoid valve connector. |
Is there poor contact in wastegate control solenoid valve connector? | Repair the poor contact in wastegate control solenoid valve connector. | Replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . > | |
