DTC P0125 Insufficient Engine Coolant Temperature For Closed Loop Fuel Control
WARNING: This page is about a different variant/trim than selected.
DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
- GENERAL DESCRIPTION < Ref. to DTC P0125 INSUFFICIENT ENGINE COOLANT TEMPERATURE FOR CLOSED LOOP FUEL CONTROL , Diagnostic Trouble Code (DTC) Detecting Criteria. >
TROUBLE SYMPTOM:
Engine does not return to idling.
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to
, OPERATION , Clear Memory Mode.> and Inspection Mode < Ref. to
, PROCEDURE , Inspection Mode.>.
WIRING DIAGRAM:

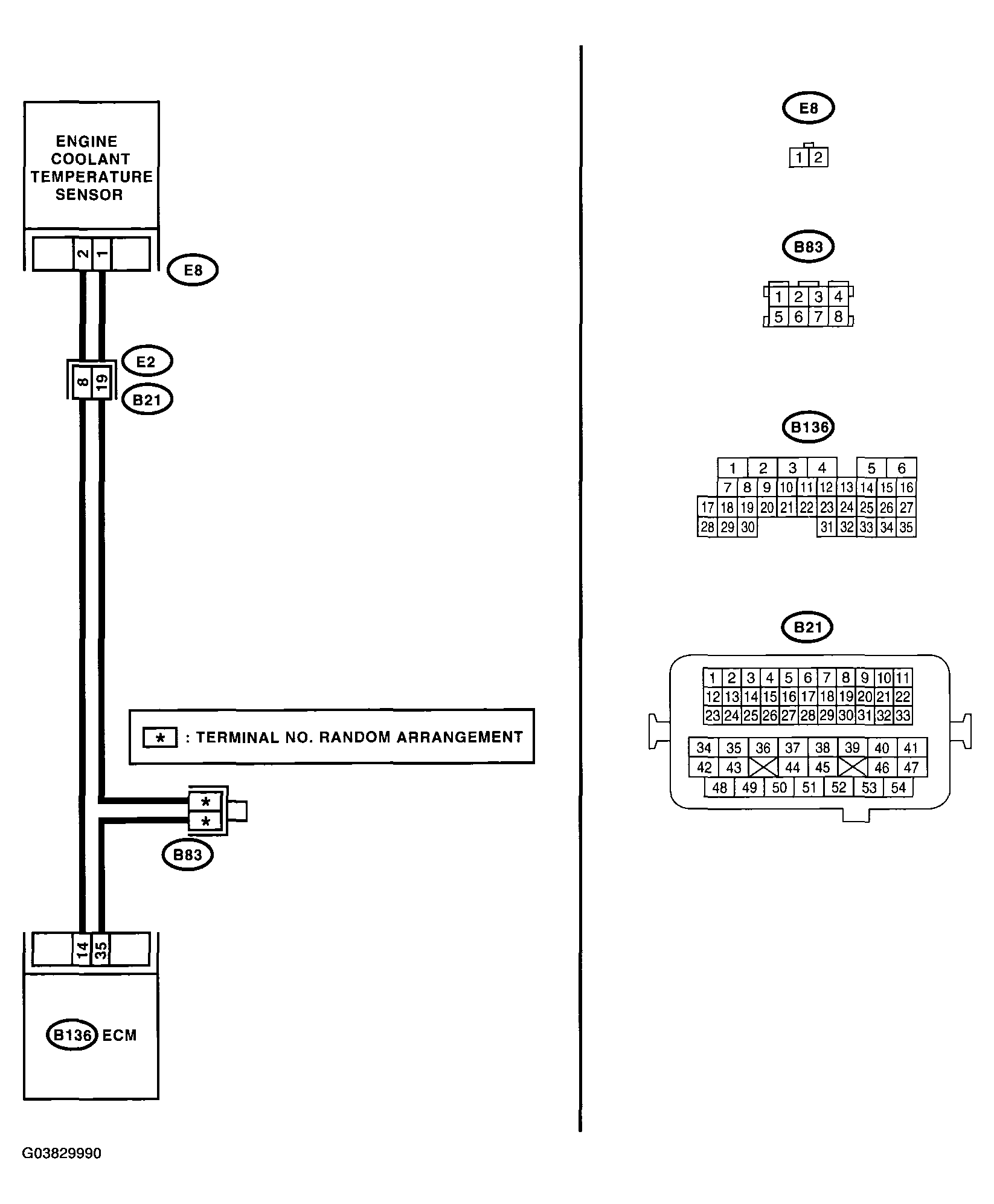

Fig 1: Wiring Diagram - DTC P0125 Insufficient Engine Coolant Temperature For Closed Loop Fuel Control
DIAGNOSTIC PROCEDURE (DTC P0125)
| Step | Check | Yes | No | |
|---|---|---|---|---|
| 1 CHECK FOR ANY OTHER DTC ON DISPLAY. |
Is any other DTC displayed? | Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to
, LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
NOTE:
In this case, it is not necessary to inspect DTC P0125.
|
Go to step 2. | |
| 2 CHECK ENGINE COOLING SYSTEM.
NOTE:
Check the following items.
|
Is there any fault in engine cooling system? | Replace the thermostat. < Ref. to THERMOSTAT . > | Replace the engine coolant temperature sensor. < Ref. to ENGINE COOLANT TEMPERATURE SENSOR . > | |
