DTC P0111 Intake Air Temperature Circuit Range/Performance

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
GENERAL DESCRIPTION < Ref. to DTC P0111 INTAKE AIR TEMPERATURE CIRCUIT RANGE/PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. >

TROUBLE SYMPTOM:

Erroneous idling
Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , OPERATION , Clear Memory Mode.> and Inspection Mode < Ref. to , PROCEDURE , Inspection Mode.>.

WIRING DIAGRAM:

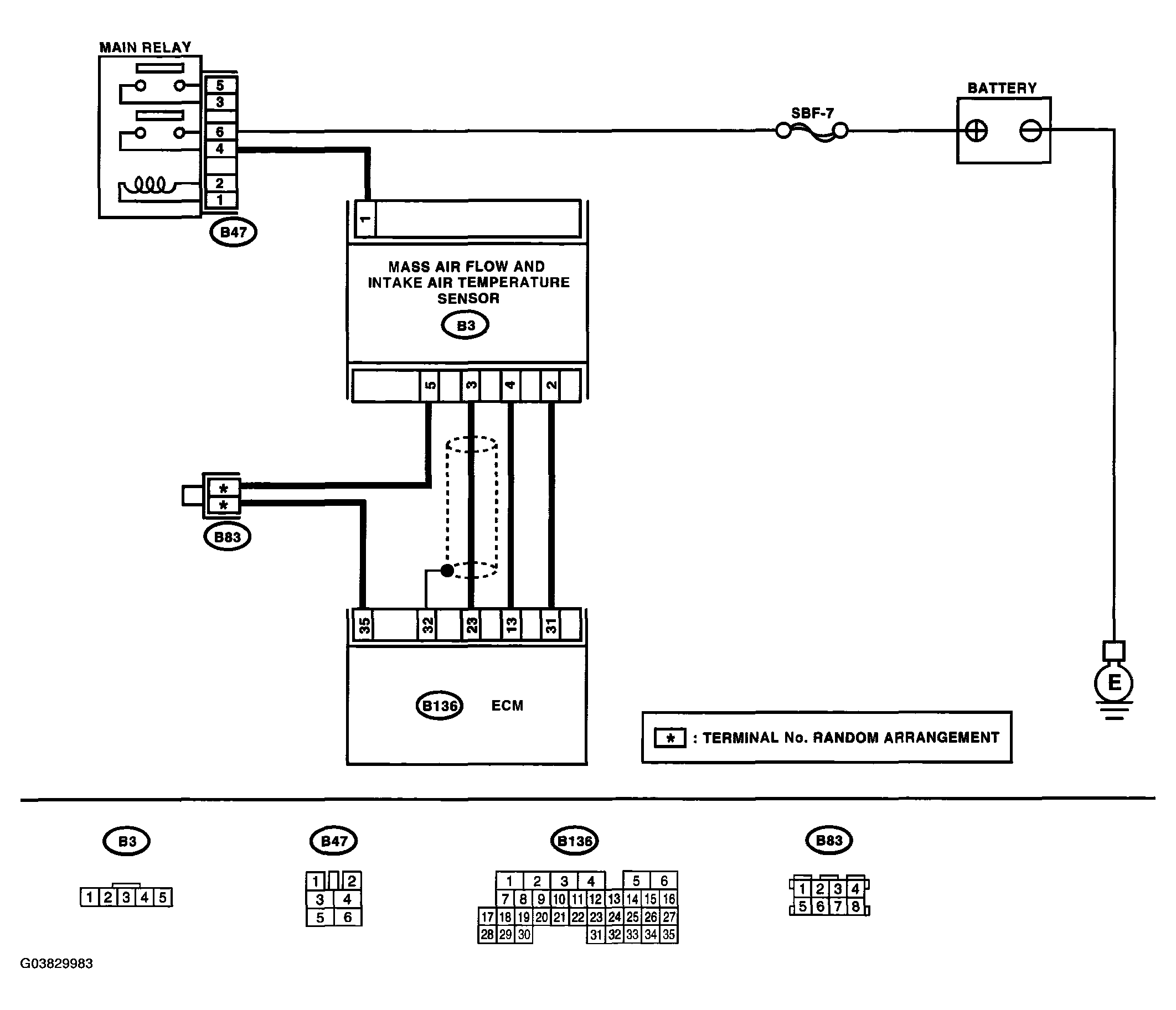

Fig 1: Wiring Diagram - DTC P0111 Intake Air Temperature Circuit Range/Performance

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE (DTC P0111)

Step		Check	Yes	No
1 CHECK FOR ANY OTHER DTC ON DISPLAY.		Is any other DTC displayed?	Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > NOTE: In this case, it is not necessary to inspect DTC P0111.	Go to step 2.
2 CHECK ENGINE COOLANT TEMPERATURE. Start the engine and warm it up completely. Measure the engine coolant temperature using Subaru Select Monitor or OBD-II general scan tool. NOTE: Subaru Select Monitor For detailed operation procedure, refer to the "READ CURRENT DATA FOR ENGINE". < Ref. to , SUBARU SELECT MONITOR . > OBD-II general scan tool For detailed operation procedures, refer to the OBD-II general scan tool instruction manual .		Is the engine coolant temperature 75°C (167°F) to 95°C (203°F)?	Replace the mass air flow and intake air temperature sensor. < Ref. to MASS AIR FLOW AND INTAKE AIR TEMPERATURE SENSOR . >	Inspect the DTC P0125 using "List of Diagnostic Trouble Code (DTC)". < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
