DTC P0101 Mass Or Volume Air Flow Circuit Range/Performance
WARNING: This page is about a different variant/trim than selected.
DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
- GENERAL DESCRIPTION < Ref. to DTC P0101 MASS OR VOLUME AIR FLOW CIRCUIT RANGE/PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. >
TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Poor driving performance
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to
, OPERATION , Clear Memory Mode.> and Inspection Mode < Ref. to
, PROCEDURE , Inspection Mode.>.

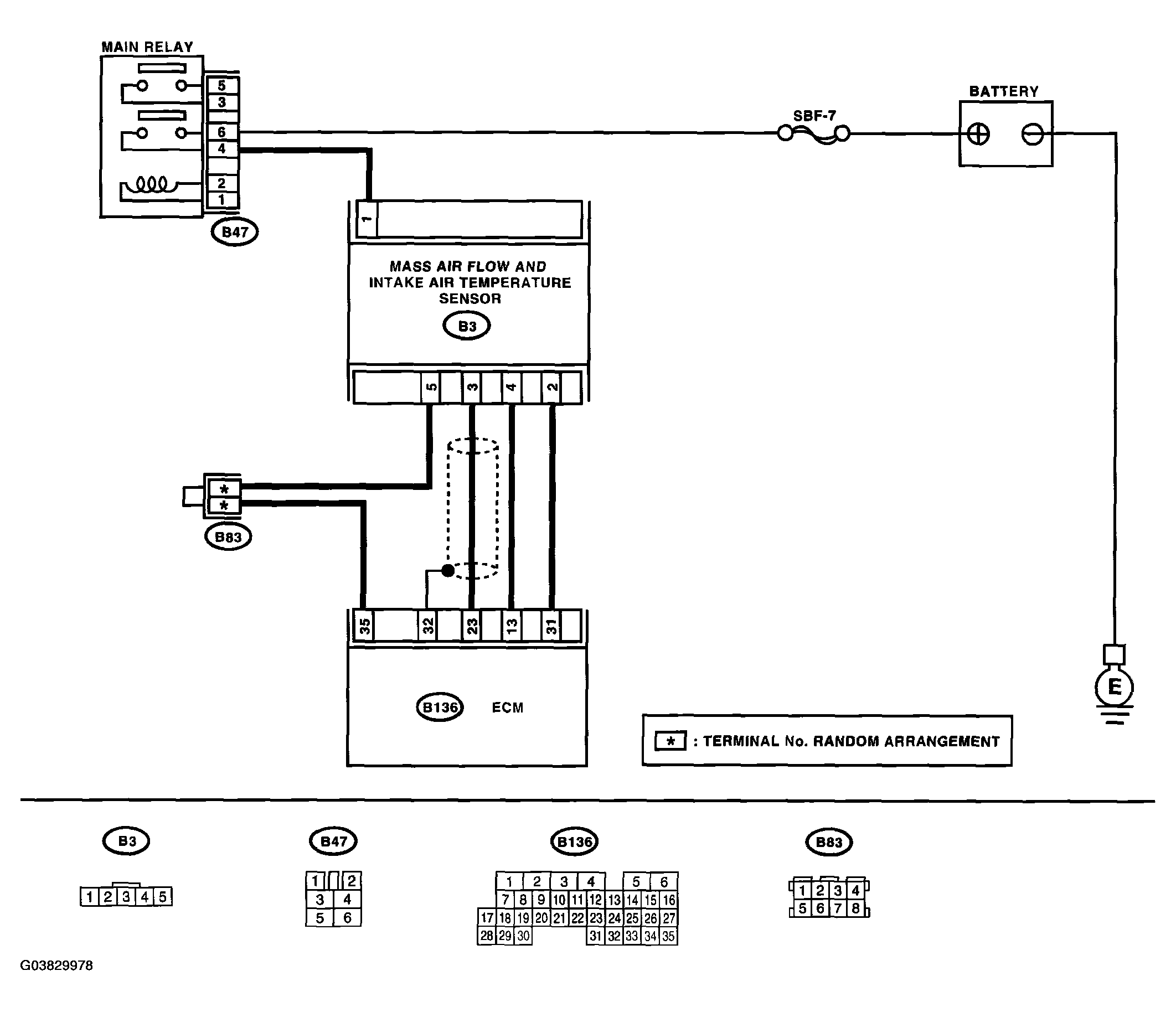

WIRING DIAGRAM:
DIAGNOSTIC PROCEDURE (DTC P0101)
| Step | Check | Yes | No | |
|---|---|---|---|---|
| 1 CHECK FOR ANY OTHER DTC ON DISPLAY. |
Is any other DTC displayed? | Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to
, LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
NOTE:
In this case, it is not necessary to inspect DTC P0101.
|
Replace the mass air flow and intake air temperature sensor. < Ref. to MASS AIR FLOW AND INTAKE AIR TEMPERATURE SENSOR . > | |
