Data Link Connector: Note

WARNING: This page is about a different variant/trim than selected.

This connector is used for Subaru Select Monitor.

CAUTION: Do not connect any scan tools other than Subaru Select Monitor and OBD-II general scan tool, because the circuit for the Subaru Select Monitor may be damaged.

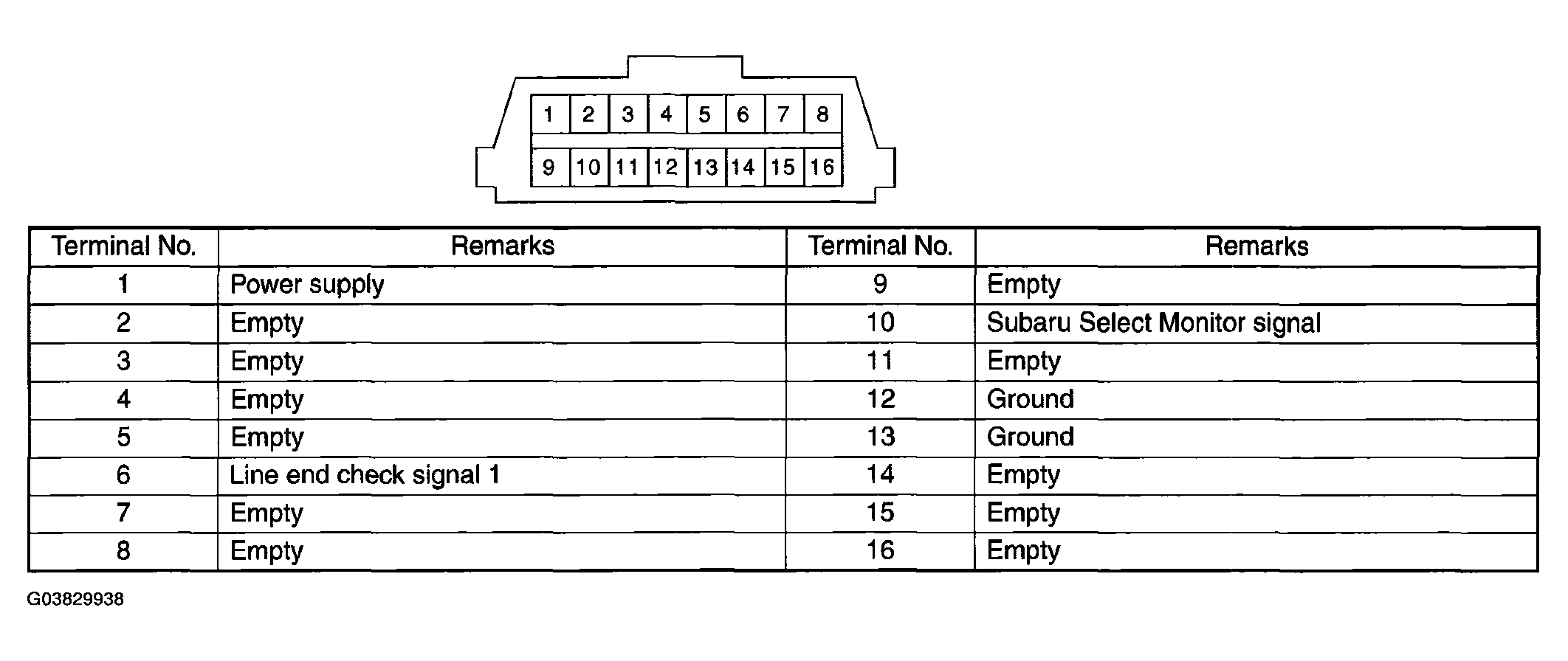

Fig 1: Identifying Data Link Connector Terminals
G03829938Courtesy of SUBARU OF AMERICA, INC.
