LH Side

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Remove the battery and battery carrier.
  3. Disconnect the connector from ignition coil.
  4. Remove the ignition coil.
    NOTE: Turn the #4 ignition coil by 180° to remove it.

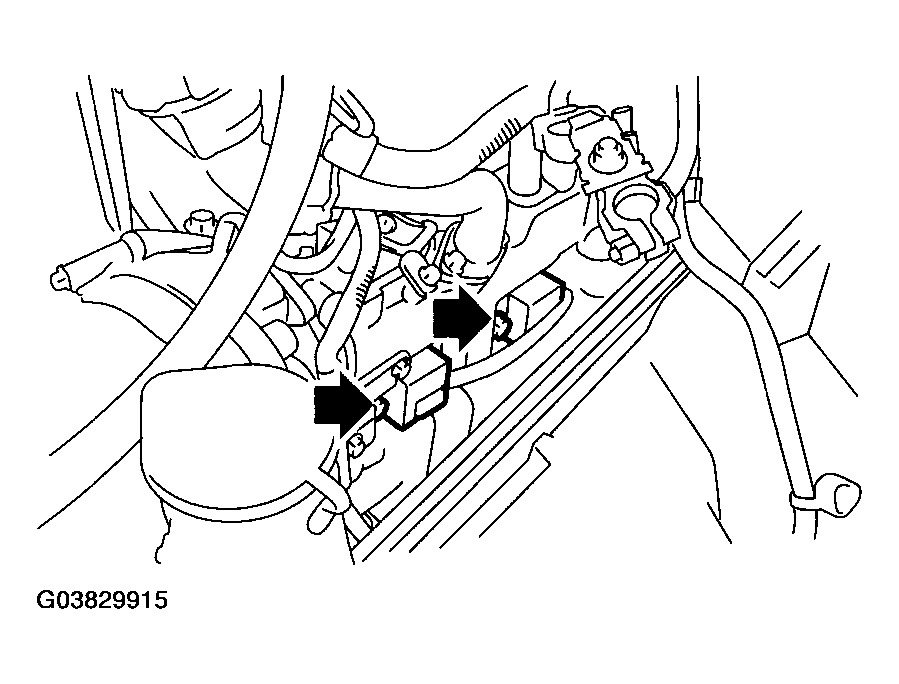

    Fig 1: Removing #4 Ignition Coil
    G03829915Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plug with a spark plug socket.
