Side Clearance

WARNING: This page is about a different variant/trim than selected.

Measure the clearance between oil pump inner rotor and pump cover. If the clearance exceeds the standard value, replace the rotor or pump body.

Side clearance:

Standard value

0.02 - 0.07 mm (0.0008 - 0.0028 in)

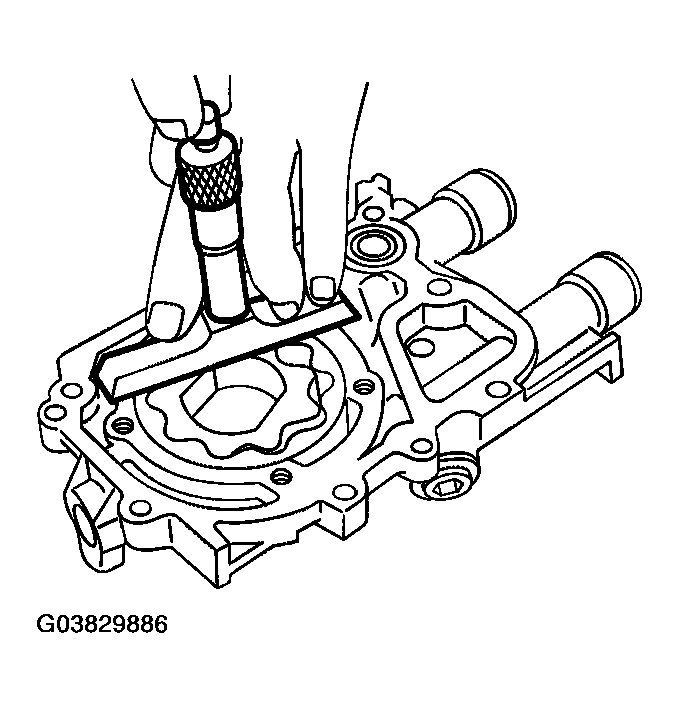

Fig 1: Measuring Clearance Between Oil Pump Inner Rotor And Pump Cover

Courtesy of SUBARU OF AMERICA, INC.
