Oil Pressure Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Remove the generator from bracket. < Ref. to REMOVAL , Generator. >
  3. Disconnect the terminal from oil pressure switch.

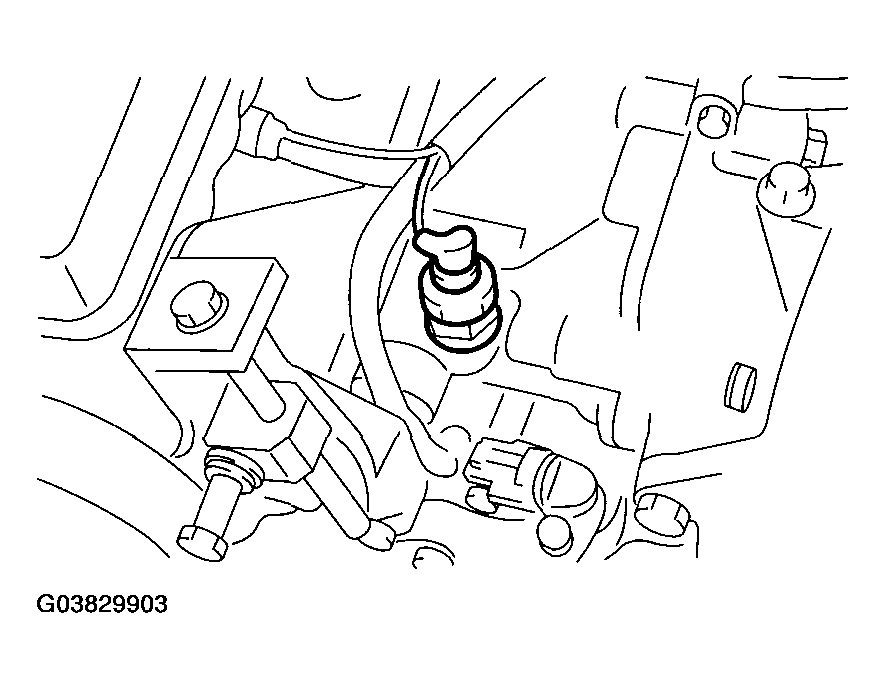

    Fig 1: Disconnecting Terminal From Oil Pressure Switch
    G03829903Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the oil pressure switch.

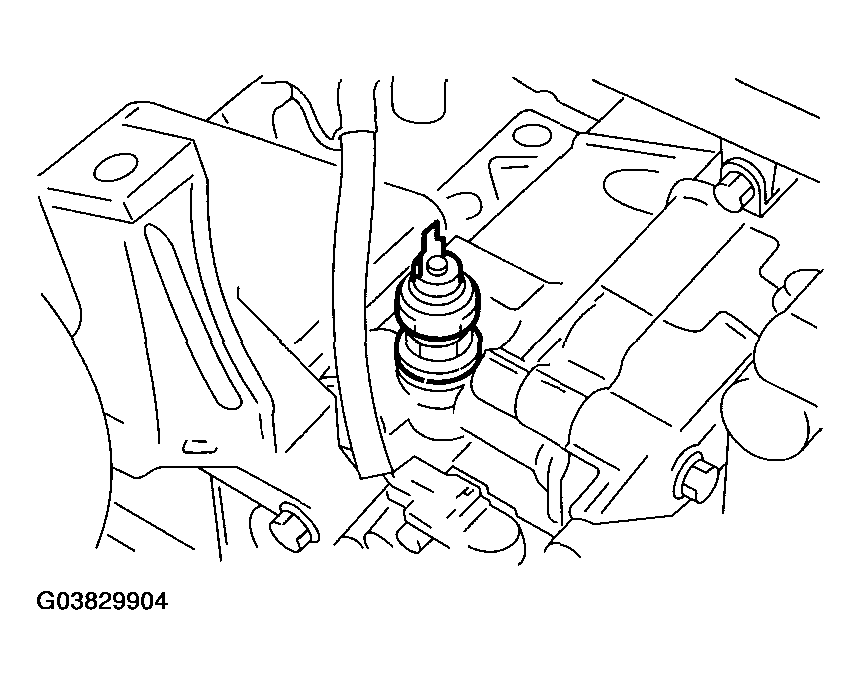

    Fig 2: Removing Oil Pressure Switch
    G03829904Courtesy of SUBARU OF AMERICA, INC.
