Oil Pressure Switch: Installation

WARNING: This page is about a different variant/trim than selected.

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403007) or equivalent

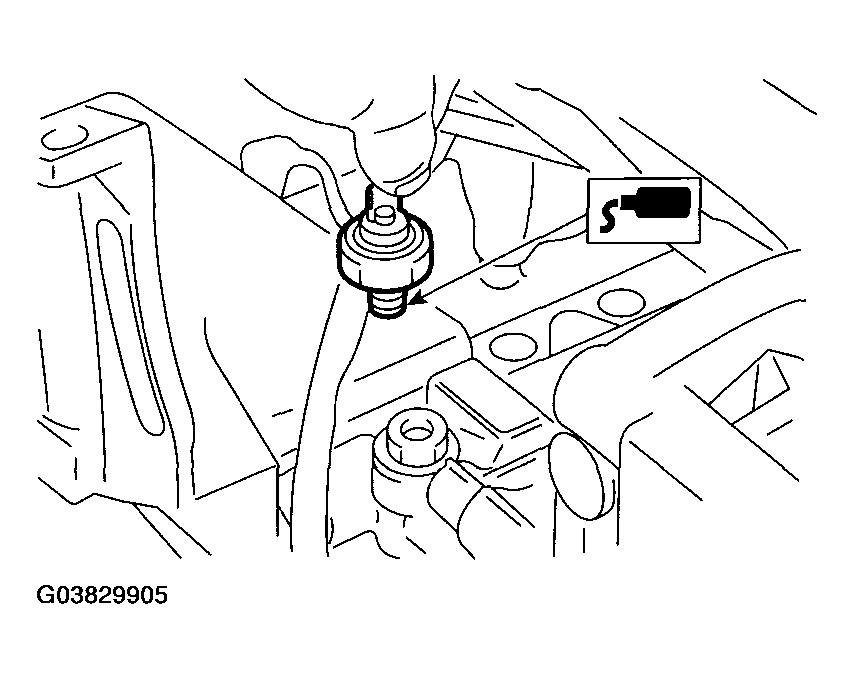

Fig 1: Applying Liquid Gasket To Oil Pressure Switch Threads
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch onto engine block.
Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

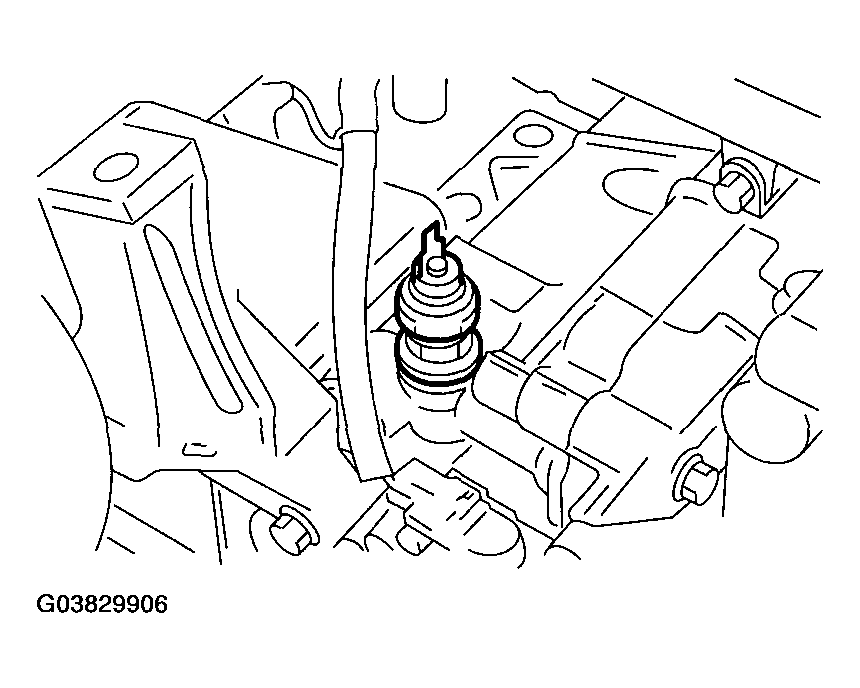

Fig 2: Installing Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal to oil pressure switch.

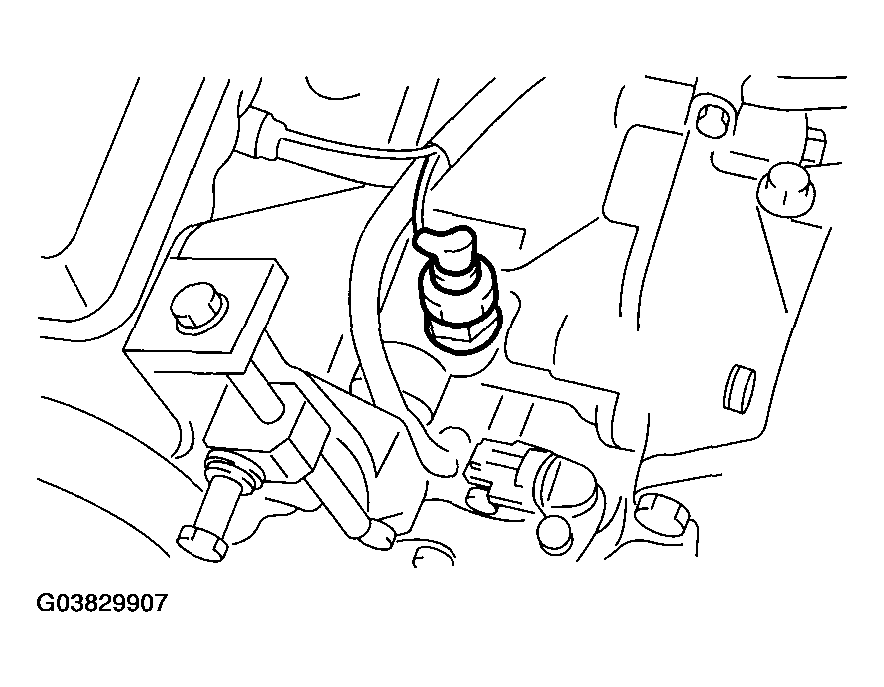

Fig 3: Connecting Terminal To Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Install the generator to bracket. < Ref. to INSTALLATION , Generator. >
Install the collector cover.
