Engine Oil Cooler: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Lift-up the vehicle.
  2. Remove the under cover.
  3. Drain engine oil.
  4. Drain coolant.
  5. Remove the water by-pass pipe between oil cooler and water pump.

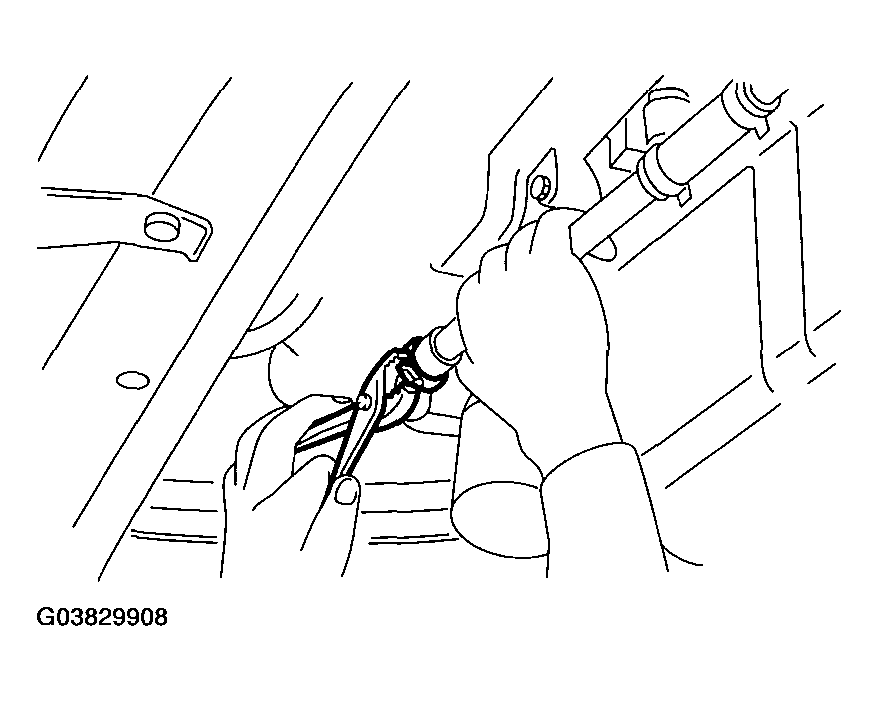

    Fig 1: Removing Water By-Pass Pipe Between Oil Cooler And Water Pump
    G03829908Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the engine oil filter. < Ref. to , REMOVAL , Engine Oil Filter. >
  7. Remove the oil cooler connector and remove oil cooler.

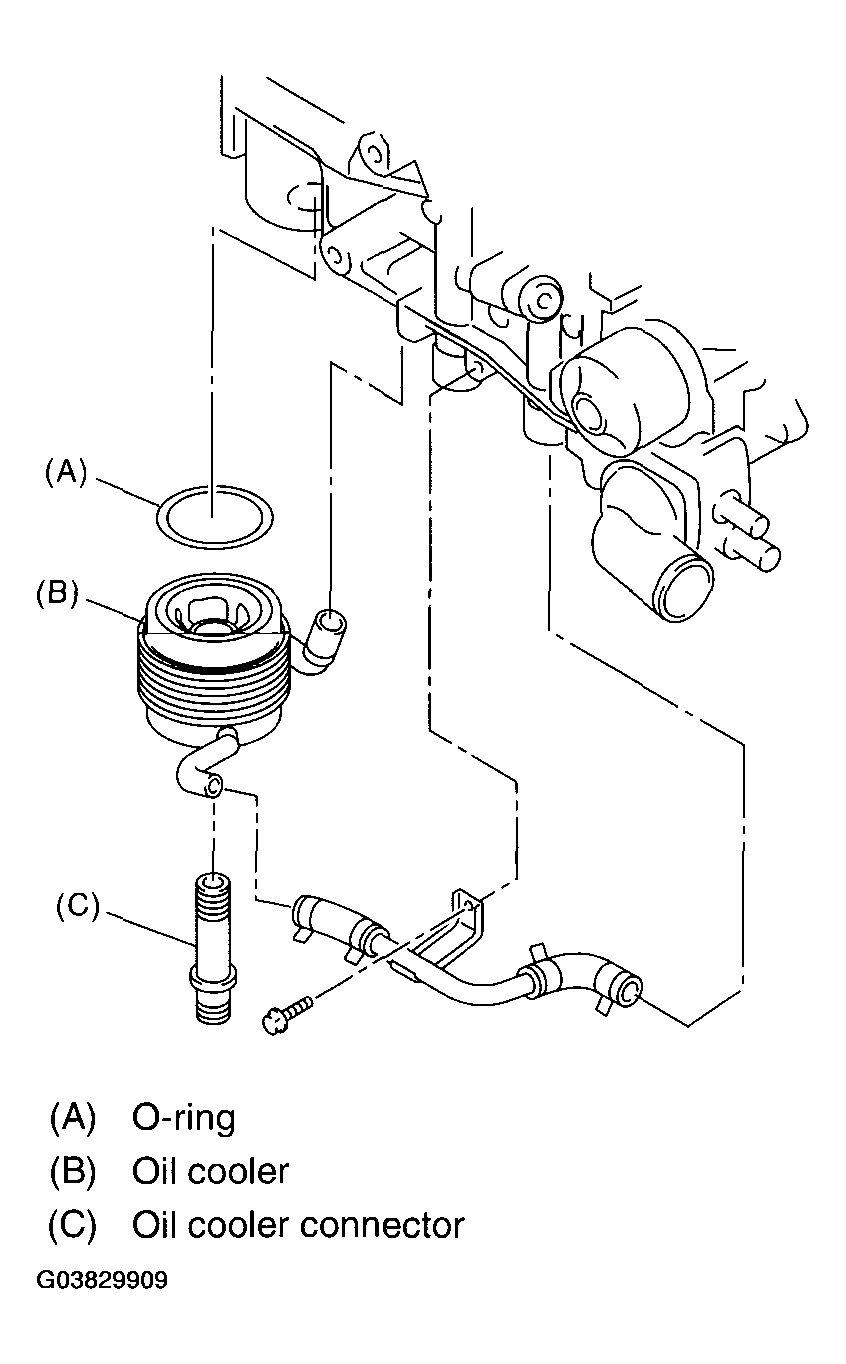

    Fig 2: Removing Oil Cooler
    G03829909Courtesy of SUBARU OF AMERICA, INC.
