Engine Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Use new O-rings.

Tightening torque:

T: 54 N.m (5.5 kgf-m, 40 ft-lb)

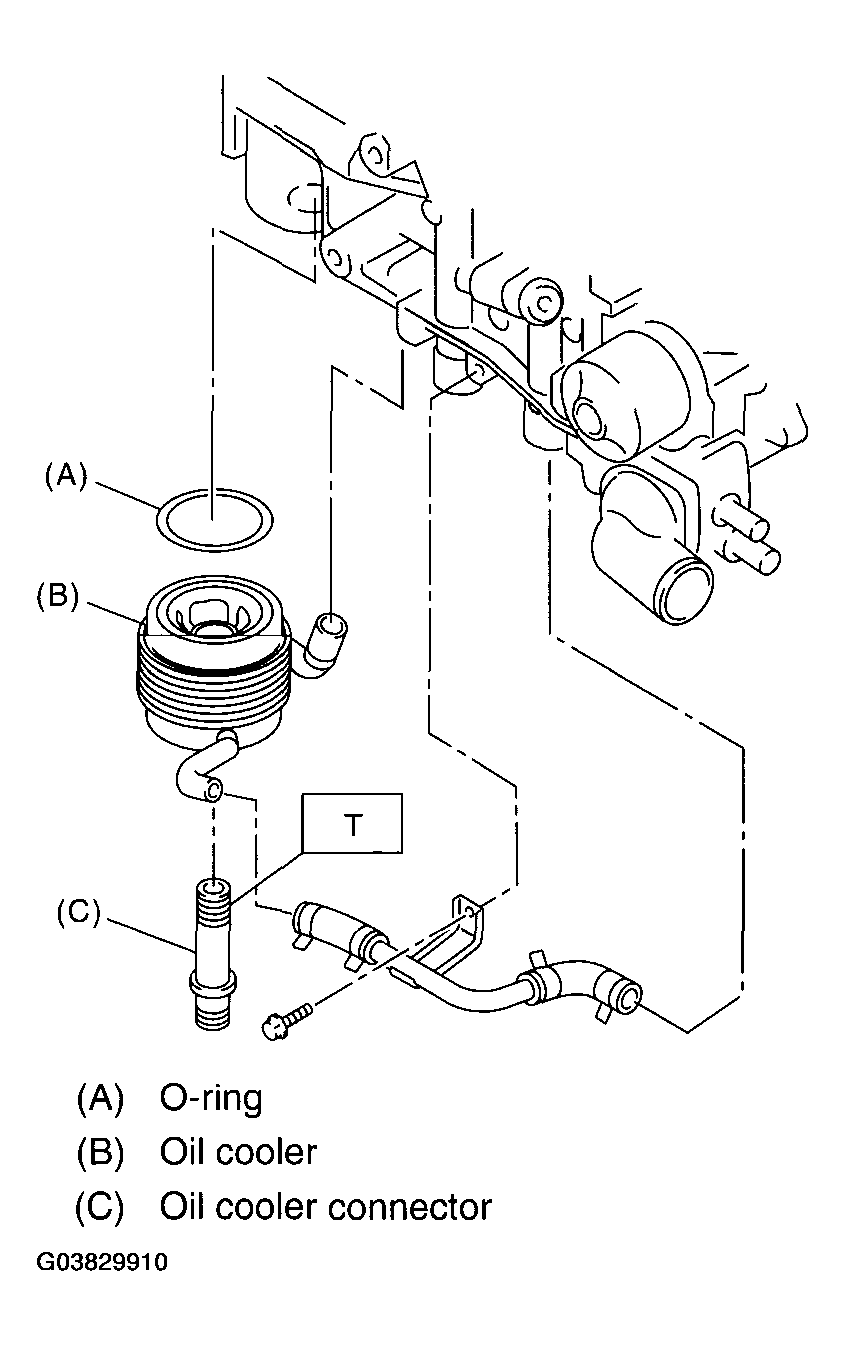

Fig 1: Installing Oil Cooler

Courtesy of SUBARU OF AMERICA, INC.
