Shut Valve: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the fuel filler pipe.
< Ref. to REMOVAL , Fuel Filler Pipe. >
Disconnect the evaporation hoses from shut valve.

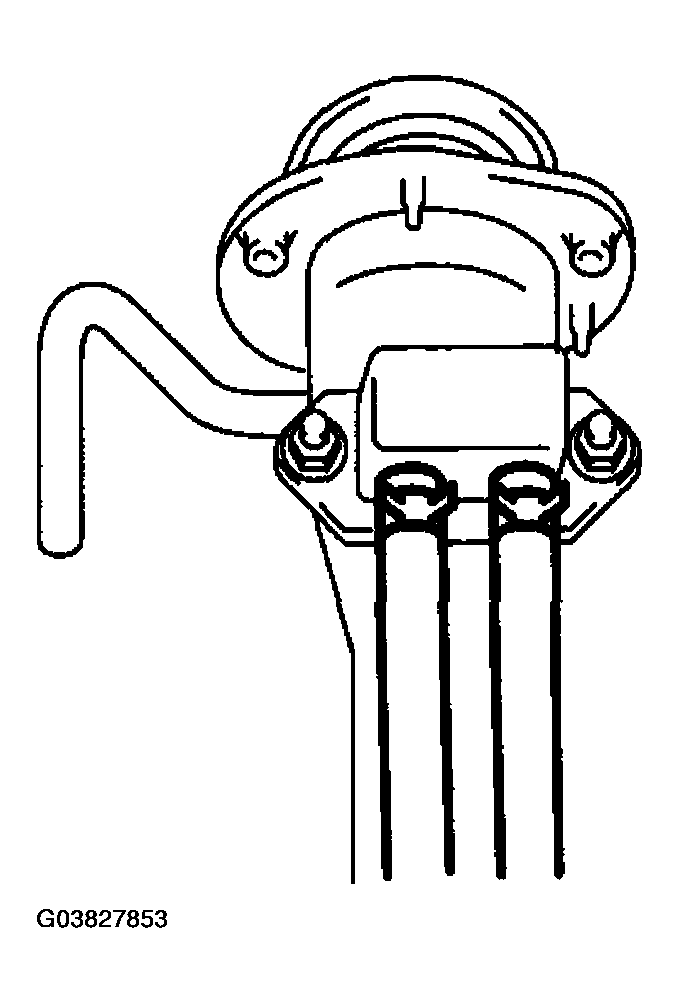

Fig 1: Disconnecting Evaporation Hoses From Shut Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove the shut valve from fuel filler pipe.

Fig 2: Removing Shut Valve From Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
